XN75D-4H - NEW Vestel Extreme XN75+ - 75" 24/7
XN75D-4H - NEW Vestel Extreme XN75+ - 75" 24/7
Features
Vestel XN75D-4H NEW Vestel Extreme XN75+ - 75" 24/7
- VAP400 (Vestel Android Platform 400)
- 2 GB DDR4 / 16 GB eMMC
- Resolution: 3840x2160 (UHD)
- Brightness: 500 cd/m²
- Operation: 24/7
- Interface: HDMI 2.0 / USB 3.0 / RS232 / RJ45 (Gigabit Ethernet) / RJ12 / IR / MicroSD / Audio / Speaker
- Application Areas: Retail, Entertainment, Corporate, Control Rooms

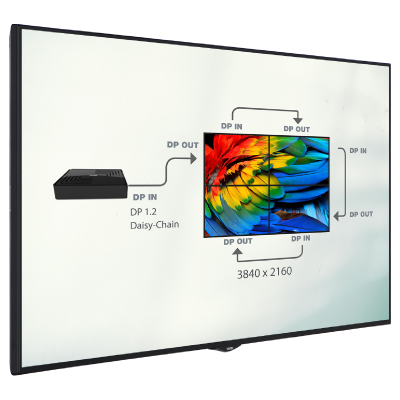

Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

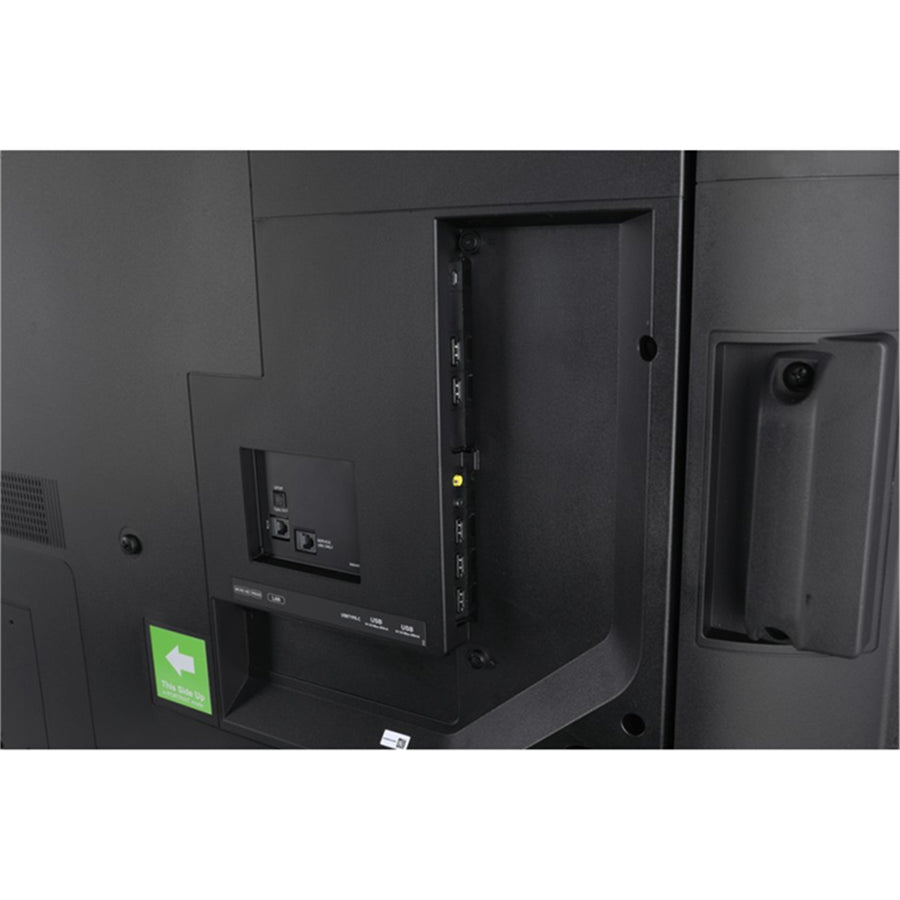

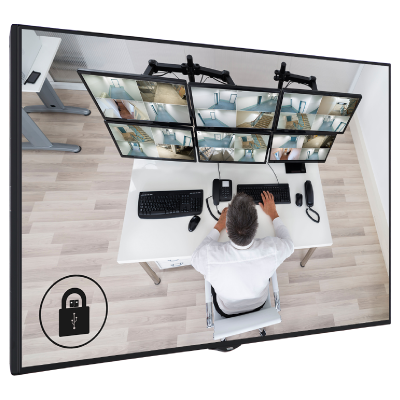

Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

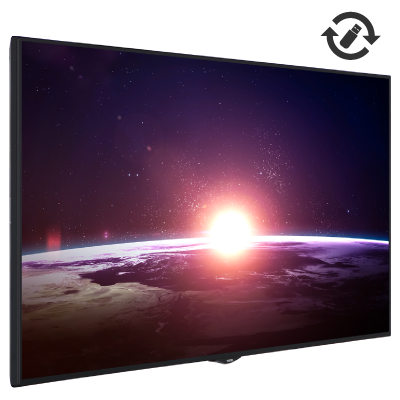

Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

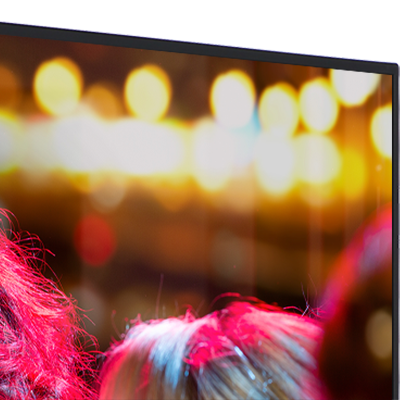

Subtle Design
This series' displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.

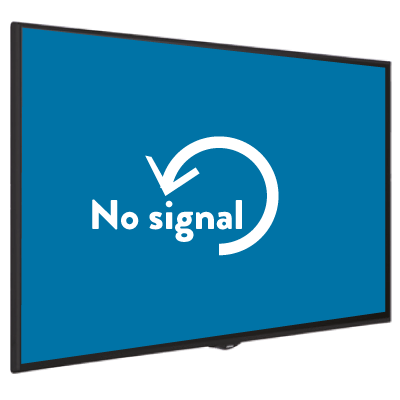

Signal Failover
Displays have a protection for "No Signal". If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in the signage displays.

Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

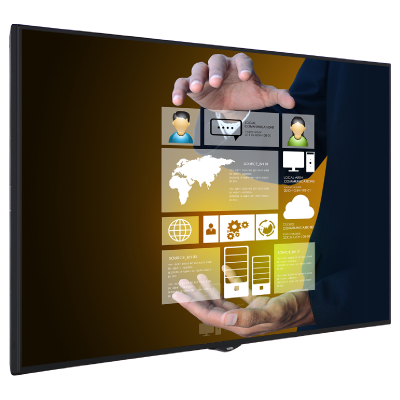

Open Platform Support
SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on the displays.

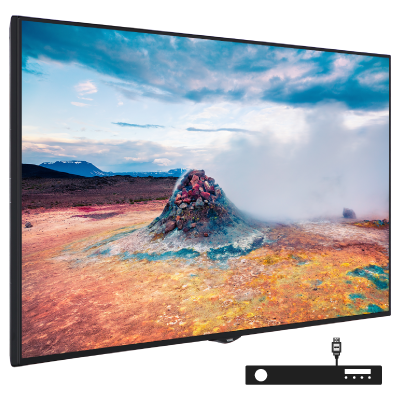

External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, the monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

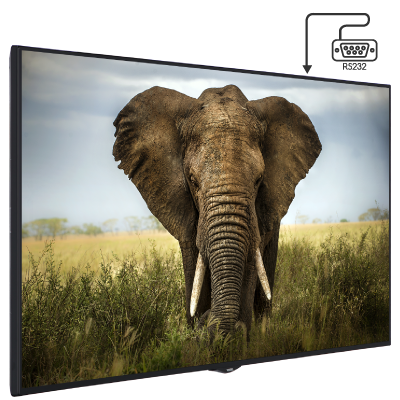

Display Control
Digital Signage Display SoC enables the users to control displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Specifications
Technical Specifications
| Screen Size | 75" |
|---|---|
| Panel Technology | IPS |
| Backlight Type | DLED |
| Brightness (typical) | 500 cd/m² |
| Native Resolution | 3840 x 2160 (16:9) - UHD |
| Contrast Ratio (typical) | 1200:1 (typ.) |
| Dynamic Contrast Ratio | 50000:1 |
| Panel Life Time ( Min. ) | 30000 Hrs |
| Response Time (typical) | 8 ms |
| Active Area (H x V) | 1650 (H) × 928 (V) mm |
| Viewing Angle | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Color Value | 1.07G (8bits + FRC) |
| Color Gamut | 72% NTSC |
| Haze Level | 3% |
| Refresh Rate | 60 Hz |
| Orientation | Landscape / Portrait |
| Operation Hour | 24/7 |
| Area of Usage | Indoor |
| Mainboard Model | 17MB400VS |
| Operating System | Custom OS (built on Android AOSP) |
| Memory | 2 GB DDR4 |
| Storage | 16 GB eMMC |
| Additional Storage | Micro SD (up to 1TB) |
| CPU | Quad-Core ARM Cortex-A55 |
| GPU | ARM Mali-G31 MP2 |
| Wired | 10/100 Mbps Ethernet, IEEE 802.1X Authentication |
| WiFi | WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication |
| Bluetooth | BT 5.1 |
| HTML5 Browser | Vewd |
| Wireless Display | Miracast |
| Video Input | 4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB |
| Video Output | 1xHDMI2.0 |
| Audio Output | Headphone, Optic SPDIF |
| External Control | RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12) |
| External Sensor | RJ12 |
| Product Dimensions (WxDxH) | 1684 x 73 x 967 mm |
| Package Dimensions (WxDxH) | 1948 x 210 x 1170 mm |
| Product Weight | 37.5 kg |
| Package Weight | 50.3 kg |
| Vesa Mounting | 600 (W) x 400 (H) mm M8 |
| Bezel Width | B: 14 mm, T/L/R: 11 mm |
| Operating Temperature | 0-40°C |
| Operating Humidity | 10-90% |
| Power Supply | 110 VAC - 240 VAC - 50/60 Hz |
| Typical | 240 W |
| Maximum | 320 W |
| Deep Standby | =0.5 W |
| Main Features | HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch onFailover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, SNMP |
| Mechanical Features | Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover |
| Speaker | 2x12 W |
