Overview
Renowned Z10

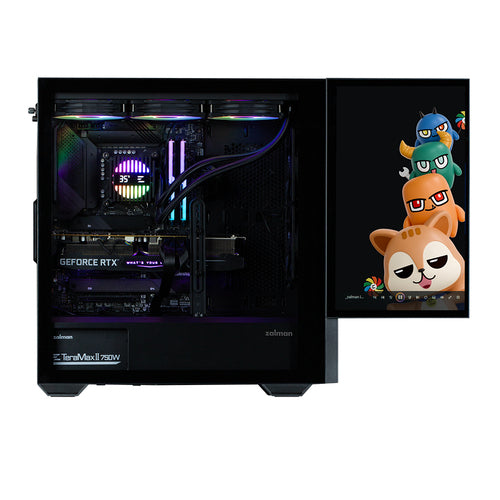

+ Big Screen Monitor
Case + Display

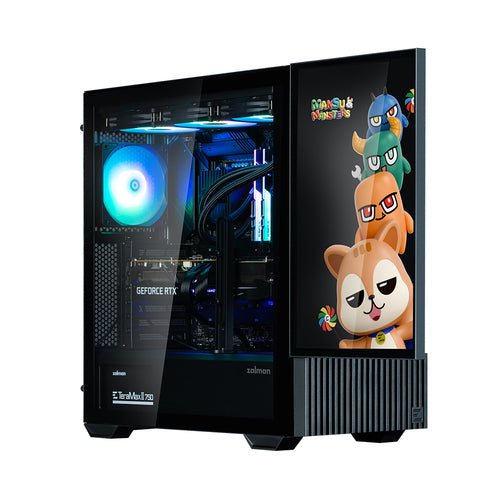

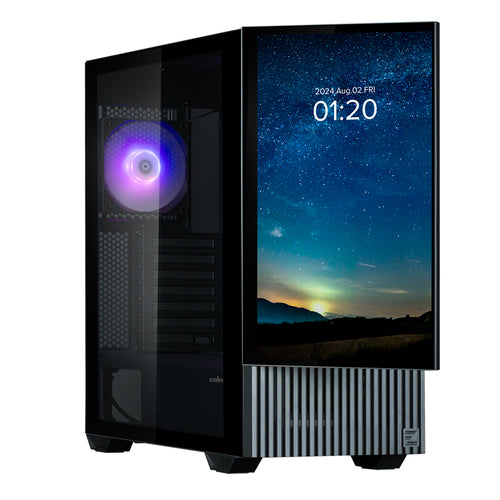

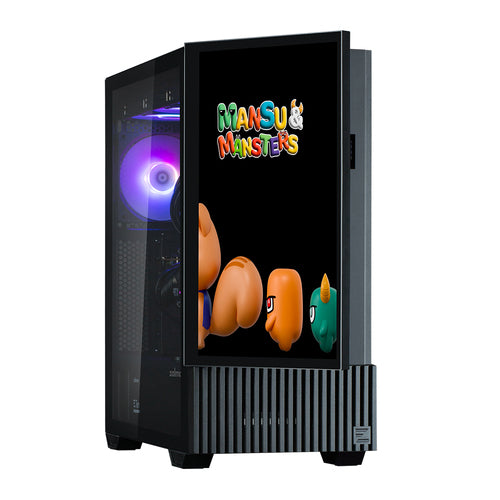

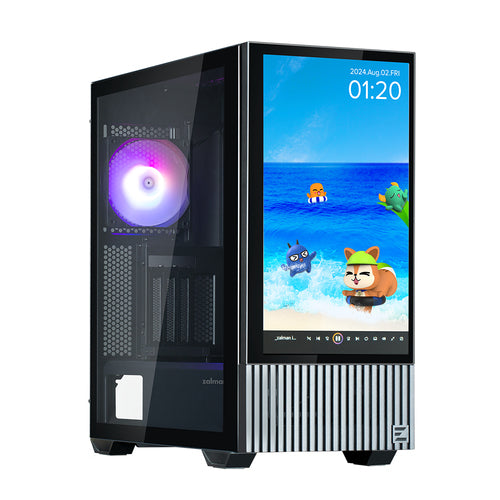

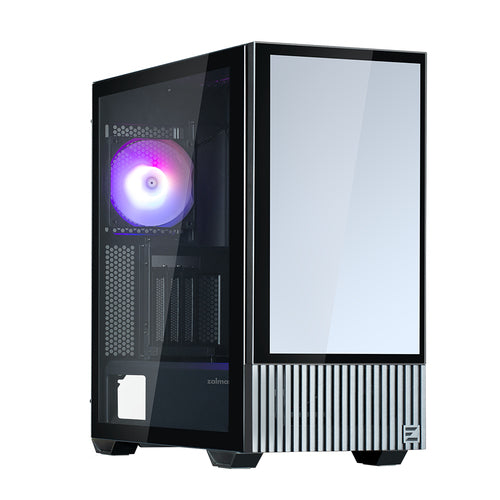

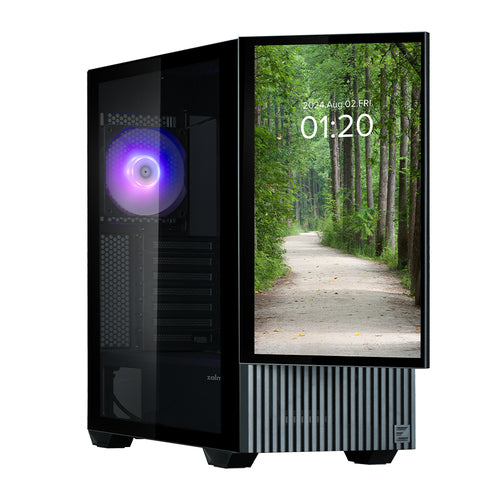

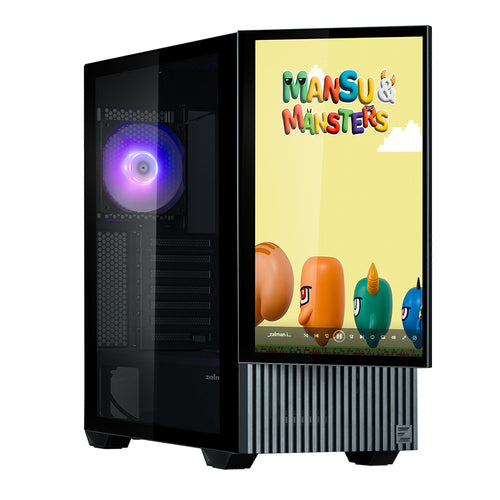

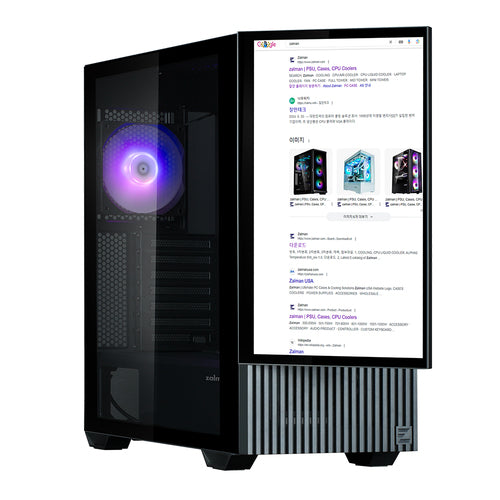

Angle-Adjustable Display Panel

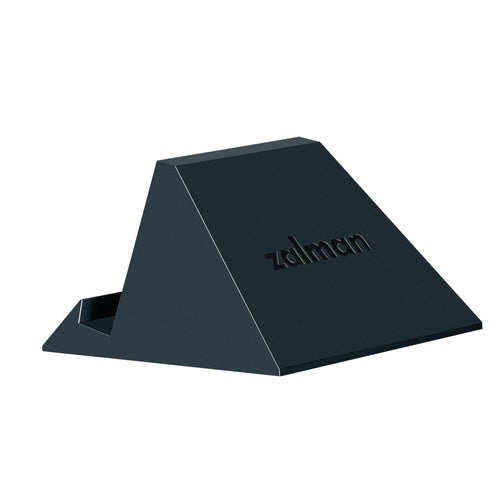

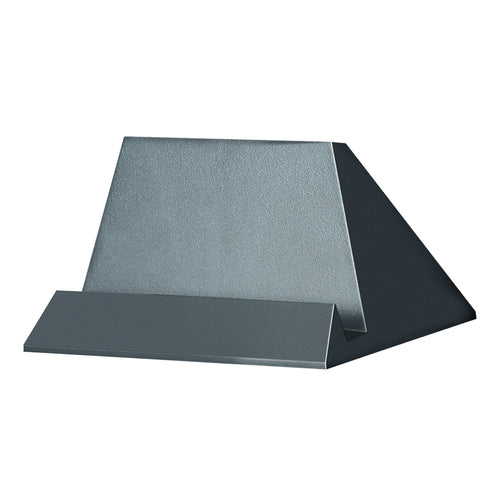

15.6-Inch Full HD Display & Monitor Stand Included

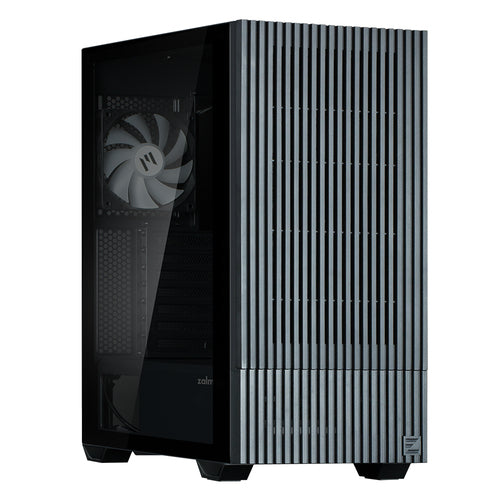

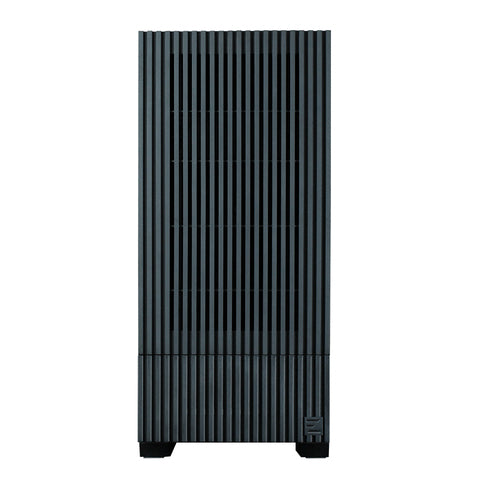

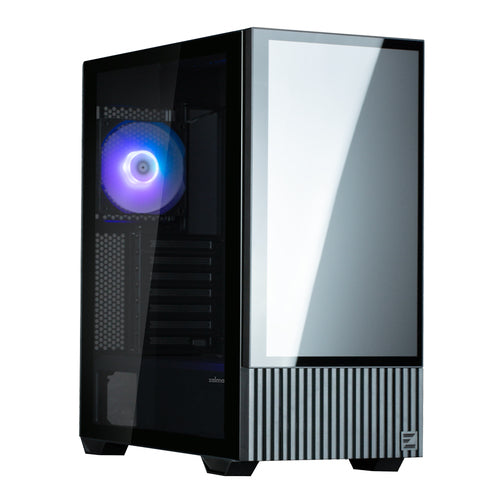

Optimal Air Flow with Clean, Modern Front Bezel Design
A front bezel is provided when the display is being used as a standalone monitor

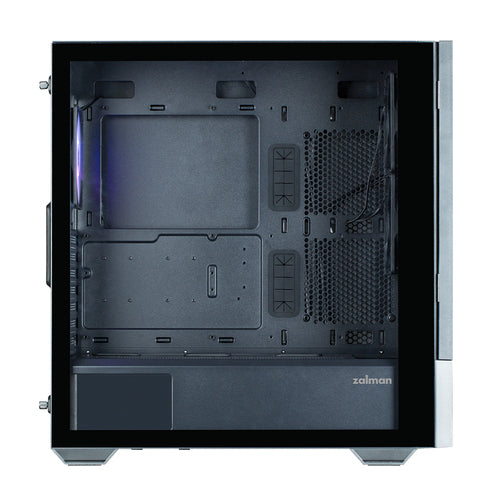

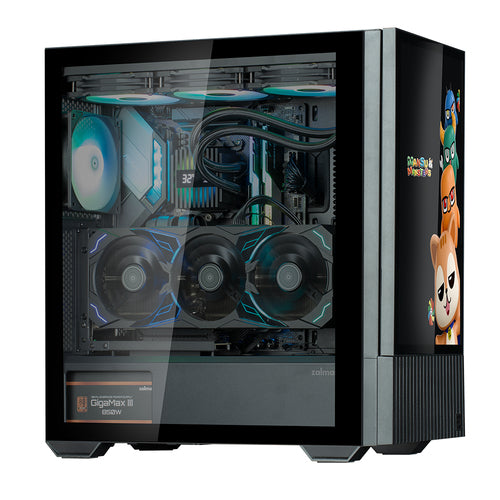

Premium Tempered Glass
4mm-Thick Tempered Glass with Hand-Screws for Easy On-and-Off
Functional I/O Port
ⓐ Power
ⓑ Reset
ⓒ HDD / Power LED
ⓓ Headphone Jack
ⓔ Microphone Jack
ⓕ USB 3.0 ⓖ USB 3.1 Type-C
ⓗ LED Button
Multiple Holes and Spaces for Easy Cable Management
22mm Space for Cable Management
Vertical GPU & GPU Support Bracket
Vertical GPU Bracket Included (Left)
GPU Support Included (Right)
Excellent Expandability and Convenience
- CPU Cooler Maximum Height : 173mm
- VGA Card Maximum Length : 395mm
- PSU Maximum Length : 200mm
- Drive Bay : HDD x 2 / SSD x 4
Motherboard Support
ATX / mATX / Mini-ITX
GPU Support Bracket Included with Height Adjustment
Slides up & down to position GPU Precisely
Pre-installed Fan x 3
Front : 2 x 120mm (Non LED)

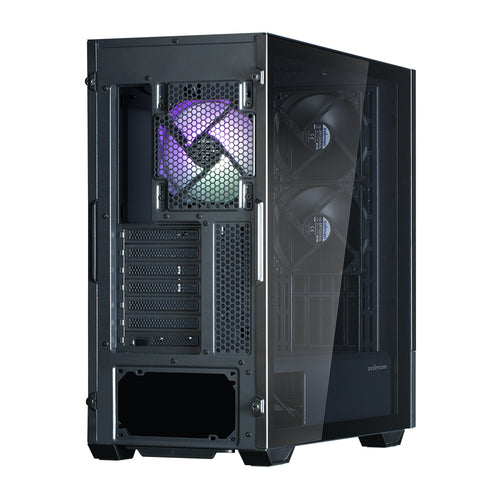

Rear : 1 x 120mm(ARGB)
Radiator Support
- Front : 120mm / 140mm / 240mm / 280mm / 360mm
- Top : 120mm / 140mm / 240mm / 280mm / 360mm
- Rear : 120mm
Supports up to Max 11 Fans
Fan Support
- Front : 3 x 120mm / 3 x 140mm
- Top : 3 x 120mm / 2 x 140mm
- Rear : 1 x 120mm
- Bottom : 2 x 120mm
- Side : 2 x 120mm
Pre-Installed
- Front : 2 x 120mm
- Rear : 1 x 120mm (ARGB)
Technical Specifications
| Material | Plastic,Steel,Tempered glass |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX,Micro ATX,Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 7 |
| Side window | Y |
| Illumination | Y |
| Illumination colour | Multi |
| Illumination location | Back,Front |
| Tempered glass panel(s) | Y |
| Cable management | Y |
| Reset button | Y |
| On/off button | Y |
| RGB control button | Y |
| Maximum CPU cooler height | 173 |
| Maximum graphics card length | 395 |
| Maximum PSU length | 200 |
| Power supply included | N |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| Built-in display | Y |
| Display diagonal | 15.6 |
| Display resolution | 1920 x 1080 |
| Front fans installed | 2x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 |
| Front radiator sizes supported | 120,140,240,280,360 |
| Rear radiator sizes supported | 120 |
| Top radiator sizes supported | 120,140,240,280,360 |
| Supported HDD sizes | 2.5,3.5 |
| HDD/SSD combo cage | Y |
| Width | 220 |
| Depth | 474 |
| Height | 488 |
| Weight | 9500 |
| LED controller | Y |
| Country of origin | South Korea |
