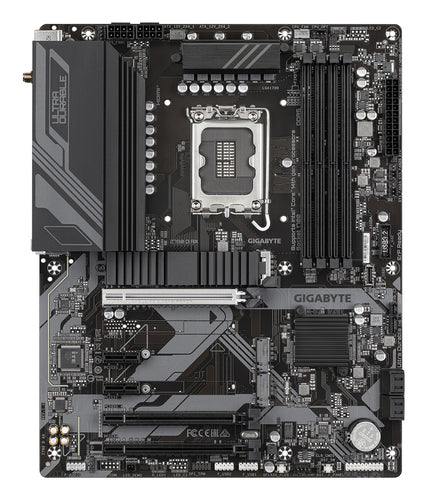

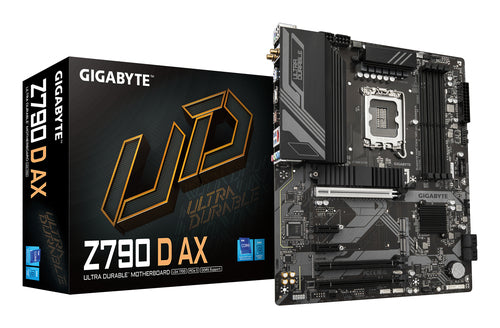

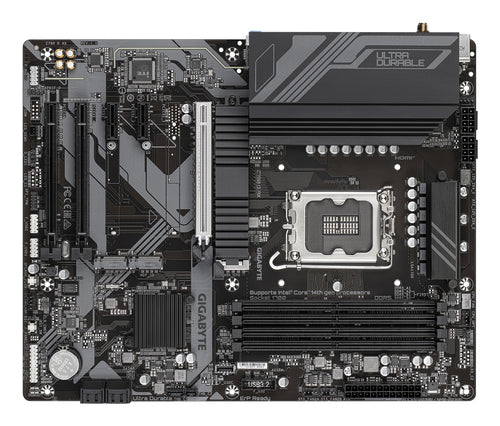

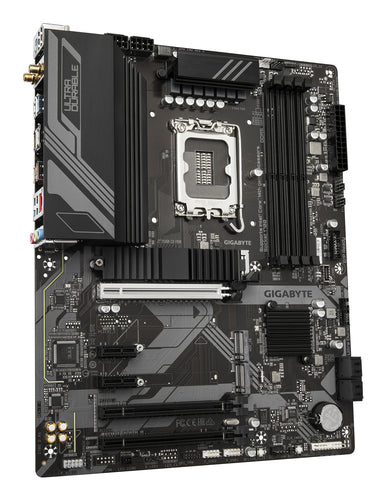

Z790 D AX - GIGABYTE Z790 D AX MOTHERBOARD
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

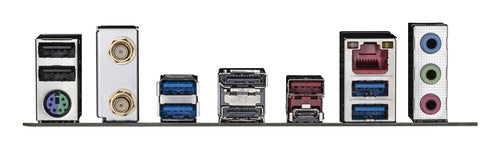

- Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 192 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & non-ECC |
| Supported memory clock speeds | 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 |
| Supported memory clock speed (max) | 7600 |
| Maximum internal memory | 192 |
| Supported memory module capacities | 1GB,2GB,4GB,8GB,12GB,16GB,32GB,48GB |
| Unbuffered memory | Y |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 |
| HDCP | Y |
| DirectX version | 12.0 |
| Discrete graphics support | Y |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| Number of EATX power connectors | 2 |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| TPM connector | Y |
| Thunderbolt headers | 2 |
| 12V power connector | Y |
| RGB LED pin header | Y |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Y |
| S/PDIF out port | Y |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A,USB Type-C |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel Z790 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Product colour | Brown |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Clear CMOS button | Y |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 |
| Battery weight | 3 |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 |
| Package depth | 270 |
| Package height | 80 |
| Package weight | 1842.5 |
| Width | 305 |
| Depth | 244 |
| Height | 35 |
| Cables included | SATA |
| Batteries included | Y |
| Antenna included | Y |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Warranty period | 3 |
