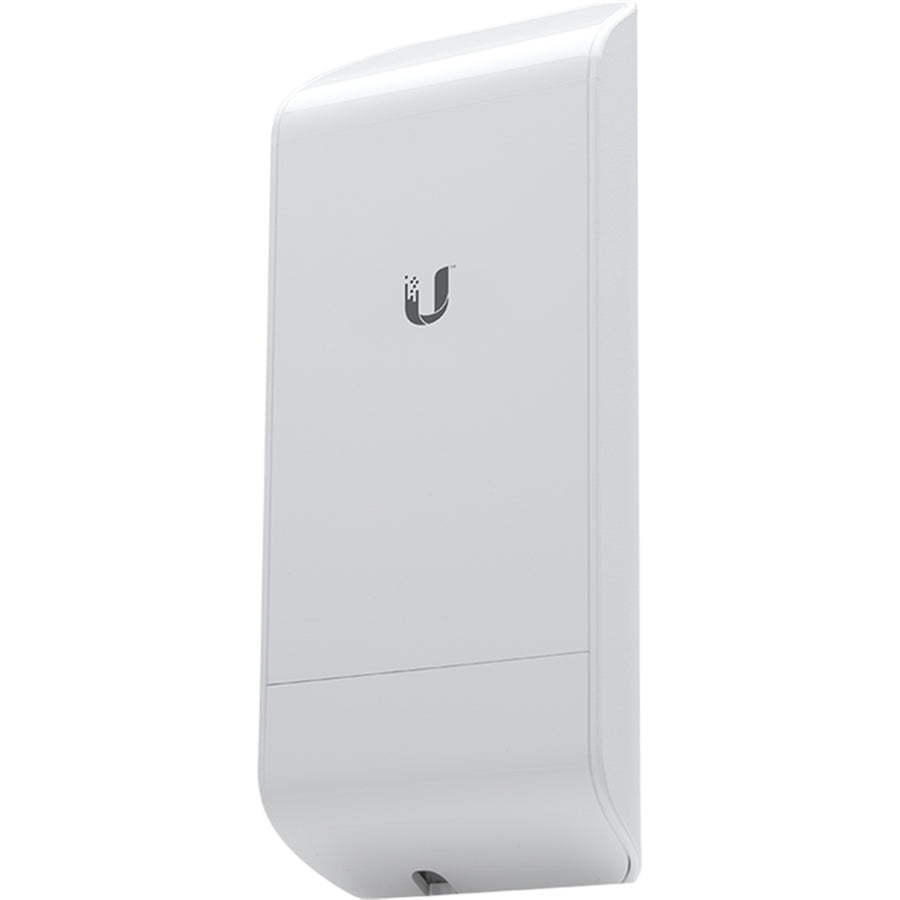

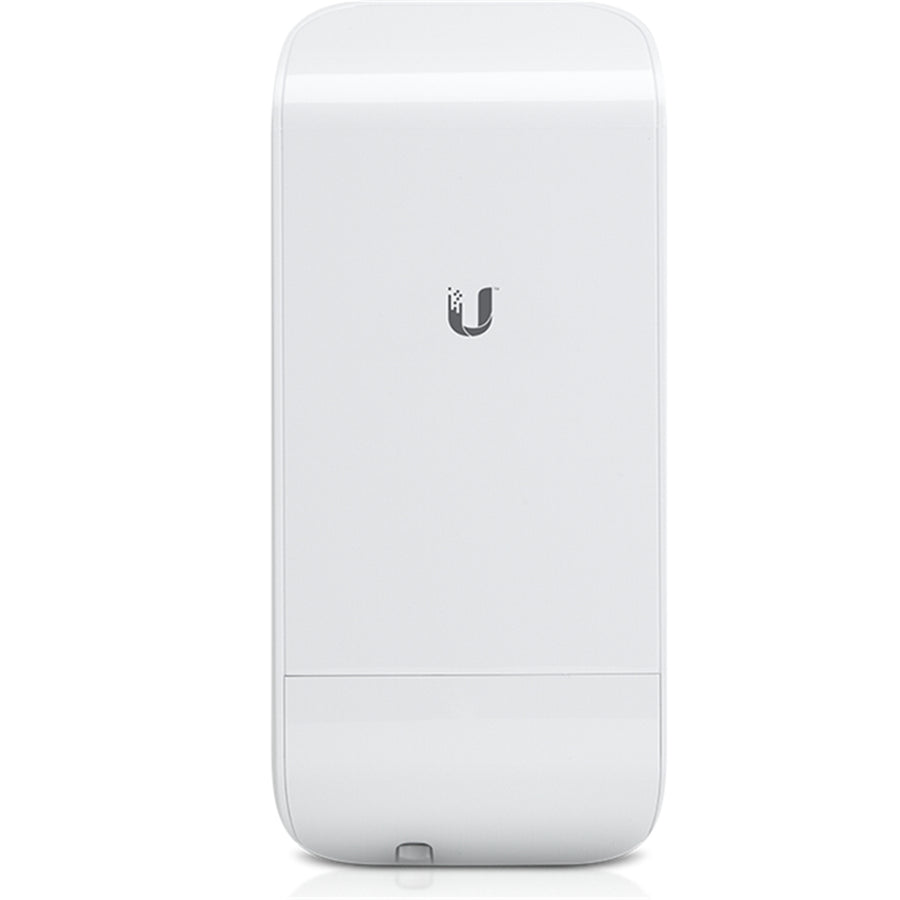

Ubiquiti LOCOM2 - 2.4 GHZ LOCO MIMO AIRMAX
Features
The Ubiquiti Nanostation LocoM2 is the perfect solution for creating a dedicated Point to Point or Point to Multipoint connection between locations where running an ethernet cable is not a viable option. The Ubiquiti Nanostation LocoM2 can also be used for extending wireless coverage outdoors or to remote buildings to provide direct Wi-Fi access to mobile devices.
Plug and Play Installation

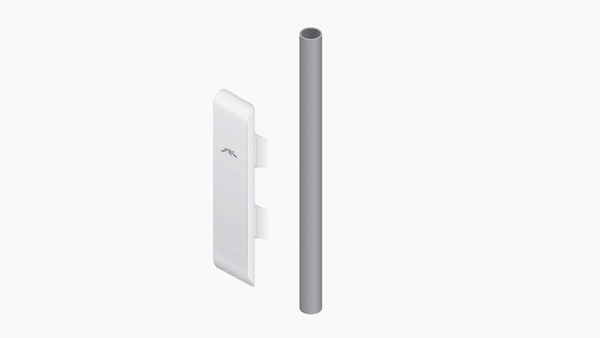

The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.
Performance Breakthrough
Up to 100Mbps real outdoor throughput and up to 1km+ range. Featuring 2x2 MIMO technology, the new Ubiquiti NanoStation links significantly faster and farther than ever before.
New Leading-Edge Industrial Design
The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new Ubiquiti NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
Next-Gen Antenna Design
New Ubiquiti antenna array designs featuring 8dBi dual-polarity gain at 2.4GHz. Optimized cross-polarity isolation and in a compact form-factor.
AirOS V
Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
What's In The Box
Specifications
Technical Specifications
| Dimensions | 161 x 31 x 80 mm |
|---|---|
| Weight | 180 g |
| Power Supply | (PoE) 24V, 0.5A 24V, 0.5A |
| Max. Power Consumption | 5.5W 5.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | 2412-2462 MHz |
| Gain | 8.5 dBi |

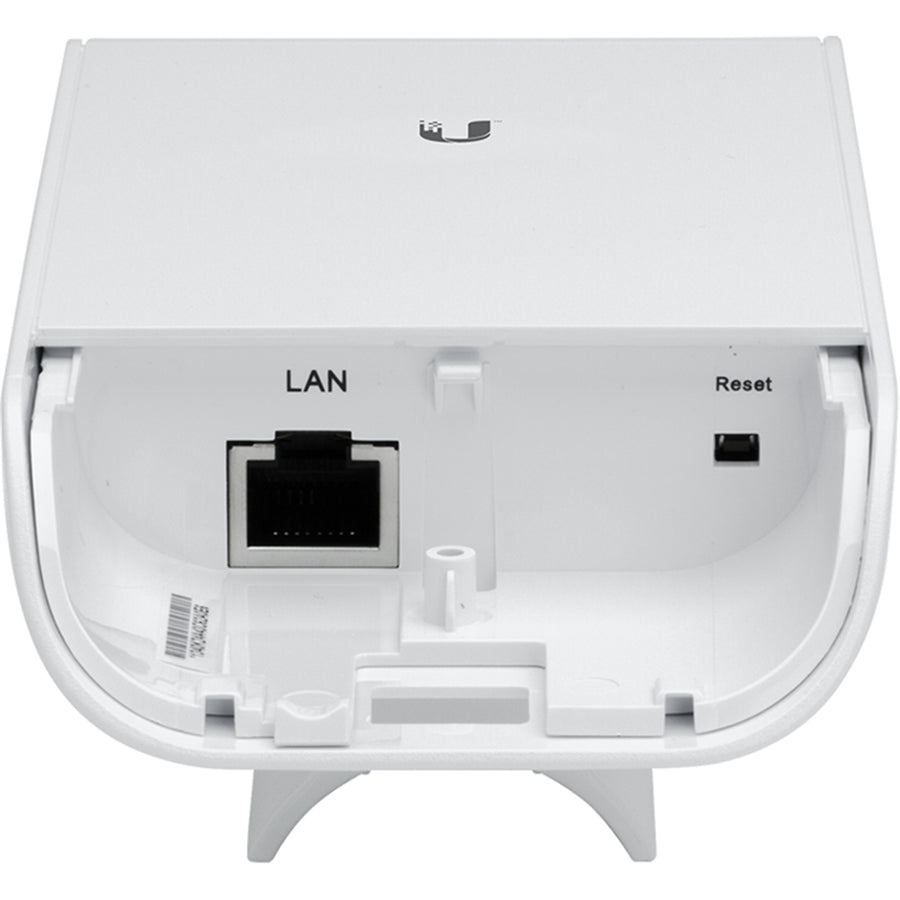

| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 24Kc, 400 MHz |
| Memory | 32 MB SDRAM, 8 MB Flash |
| Frequency | 2.4 GHz |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.4:1 |
| Beamwidth | 60° (H-pol) / 60° (V-pol) / 60° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |

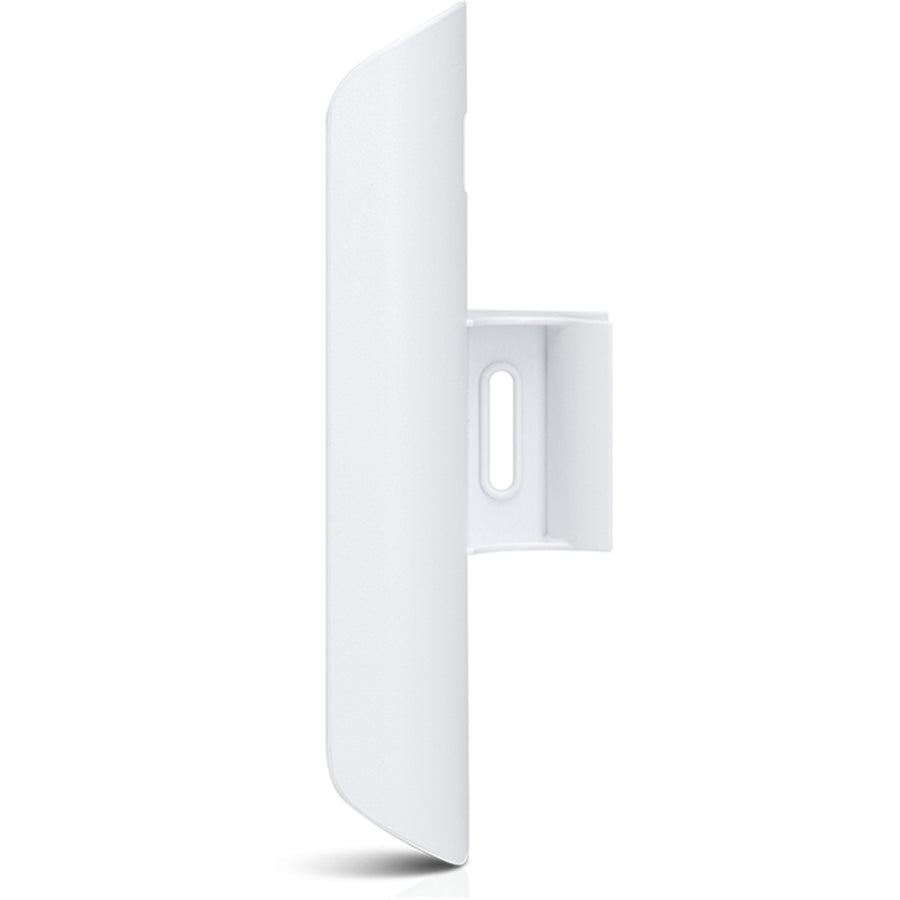

| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC Part 15.247, IC RS210, CE |
| RoHS Compliance | Yes |
| Shock & Vibration | ETSI300-019-1.4 |

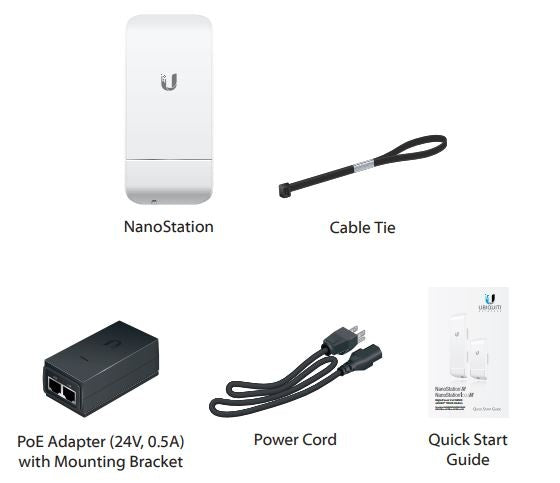

| What's In the Box | - NanoStation- Cable Tie- PoE Adapter (24V, 0.5A) with Mounting Bracket- Power Cord- Quick Start Guide |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Wireless Bridges |
| Weight | 0.49 kg |
| Warranty |
|---|
