456096-001 - HP GBIC SFP+ 10GbE SR 850nm for BladeSystem c-Class
456096-001 - HP GBIC SFP+ 10GbE SR 850nm for BladeSystem c-Class
Features
A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit SR standard, providing 10-Gigabit connectivity up to 400m on OM4 multi-mode fiber.
- 10Gb Ethernet transmission rate with SFP+ form factor
- Transmissions are up to 300m on MMF (SR), up to 220 m MMF (LRM) and 10 km on SMF (LR)
- Low power consumption at <0.8W for SR, <1W for LRM and LR
- Duplex LC connector

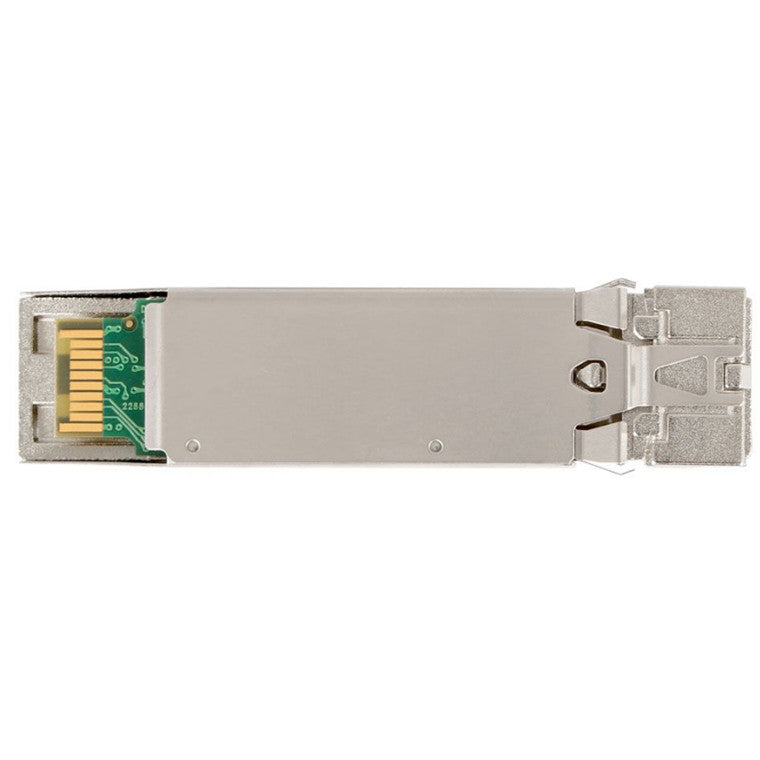

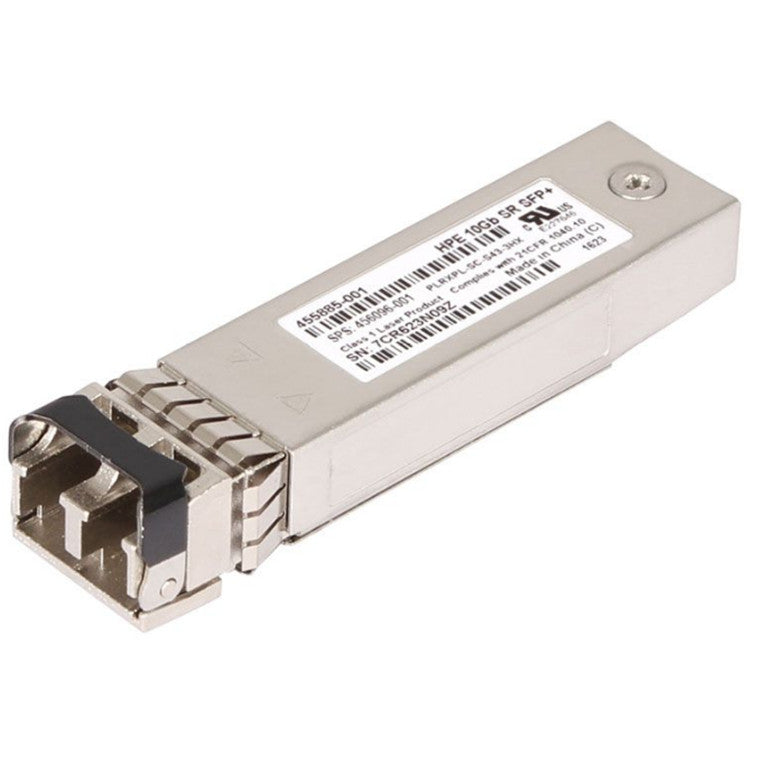

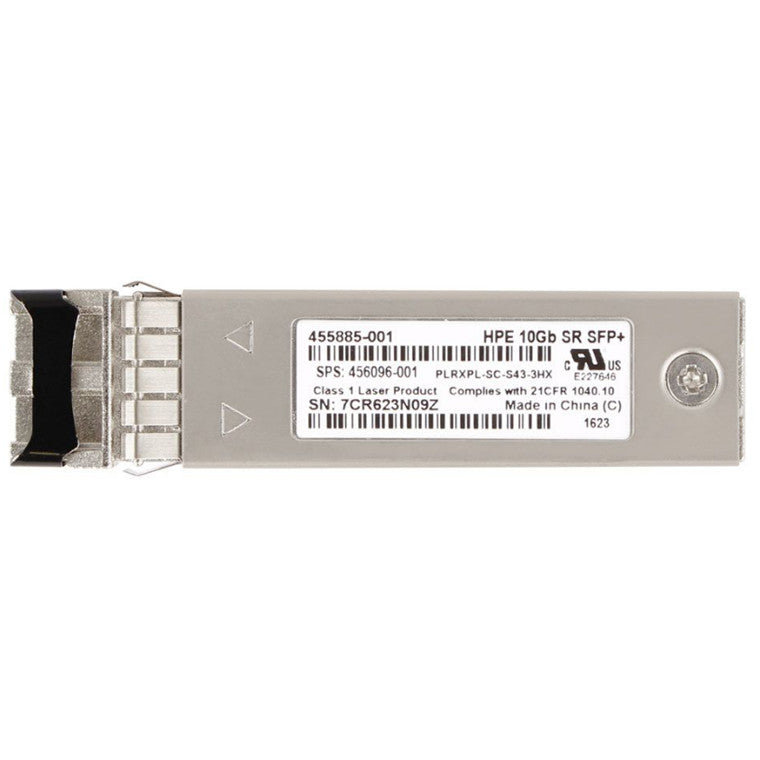

The HPE 456096-001 is an Plug-in module form factor transceiver module supporting the 1 x Ethernet 10GBase-SR - LC multi-mode x 2 standard. The 456096-001 is hot pluggable and has a 1 x Ethernet 10GBase-SR - LC multi-mode x 2 interface. The transceiver provides speeds of 10 Gbps on 10 Gigabit Ethernet connections up to 1 x SFP+
KW Tech is a HP Gold Partner
Specifications
Technical Specifications
| Brand: | HPE |
|---|---|
| MPN: | 456096-001 |
| Device Type: | SFP+ Transceiver Module |
| Form Factor: | Plug-in Module |
| Transceiver Form Factor: | SFP+ |
| Connectivity Technology: | Wired |
| Cabling Type: | 10GBase-SR |
| Data Link Protocol: | 10 Gigabit Ethernet |
| Data Transfer Rate: | 10 Gbps |
| Max Transfer Distance: | 980 ft |
| Ports: | 1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-SR), Duplex: full only |
| Connector Type: | LC |
| Wavelength: | 850 nm |
| Cable type: | 62.5/125 ?m or 50/125 ?m (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC793-2Type A1b orA1a, respectively |
| Fiber type: | Multi Mode |
| Maximum distance: | 2-26m with 62.5 ?m multimode cable @ 160 MHz*km 2-33m with 62.5 ?m multimode cable @ 200 MHz*km 2-66m with 50 ?m multimode cable @ 400 MHz*km 2-82m with 50 ?m multimode cable @ 500 MHz*km 2-300m with 50 ?m multimode cable @ 2000 MHz*km |
| Interfaces: | 1 x Ethernet 10GBase-SR - LC multi-mode x 2 |
| Compatible Slots: | 1 x SFP+ |
| Product Dimensions & Weight | Width: 0.54 inch (1.38 cm)Height: 0.47 inch (1.19 cm)Depth: 2.19 inch (5.57 cm)Weight: 0.04 lbs (0.02 kg) |
