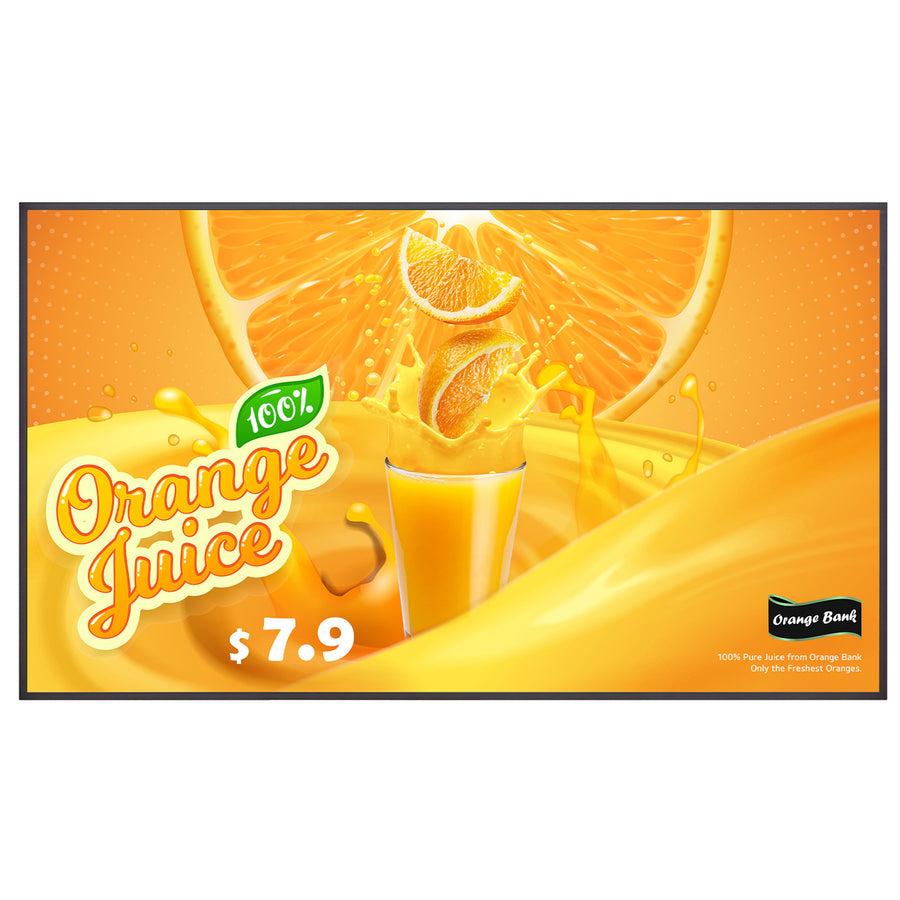

LG 49UH5Q-E - 49UH5Q-E 49 UHD S D
Features
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 11.4 mm (Even Bezel)
- webOS Smart Platform
- LG Shield
Superb Picture Quality with Ultra HD Resolution
With the resolution of LG UHD Signage, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.
Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
Design for Space Utilization
Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.
Durability that Provides Reliability for LG UHD Signage Optimized for business environments
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction, ensuring the durability of LG UHD signage.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.
SuperSign Solutions
LG SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications
Technical Specifications
| Screen Size | 49" |
|---|---|
| Panel Technology | IPS |
| Back Light Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3,840 x 2,160 (4K UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 500 nit |
| Contrast Ratio | 1,100 : 1 (Typ.) |
| Dynamic CR | 1,000,000 : 1 |
| Color gamut | BT709 95% |
| Viewing Angle (H x V) | 178 × 178 |
| Color Depth | 1.07 Billion Colors (10 bit (D)) |
| Response Time | 8ms (Tr) / 10ms (Tf (Typ.)) |
| Surface Treatment (Haze) | 28% (Typ.) |
| Life Time (Min.) | 50,000 Hrs |
| Operation Hours (Hours / Days) | 24 / 7 |
| Portrait / Landscape | Yes / Yes |
| Bezel Color | Black |
| Bezel Width | 11.4 mm (Even) |
| Weight (Head) | 11.4 kg |
| Packed Weight | 14.2 kg |
| Monitor Dimensions (W × H × D) | 1,104.3 × 635.5 × 29.7 mm |
| Carton Dimensions (W × H × D) | 1,215 × 742 × 142 mm |
| Handle | No |
| VESA™ Standard Mount Interface | 300 × 300 mm |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power Supply | AC 100-240 V ~, 50/60 Hz |
| Power Type | Built-In Power |
| Power Consumption Typ./Max. | 83 W / 134 W (TBD) |
| Smart Energy Saving (70%) | 58 W (TBD) |
| DPM | 0.5 W |
| Power off | 0.5 W |
| BTU (British Thermal Unit) | 283 BTU/Hr (Typ.), 457 BTU/Hr (Max.) (TBD) |
| Safety | CB / NRTL |
| EMC | FCC Class "A" / CE / KC |
| ePEAT(US only) | Yes (Carbon "Reducing CO2") (TBD) |
| ErP / Energy Star | Yes (NewErP) / Yes |
| OPS Type Compatible | No |
| OPS Power Built In | No |
| Software | SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare |
| Input | HDMI (3, HDCP 2.2/1.4), DP (HDCP 2.2/1.3), RS-232C (4 Pin Phone-Jack), RJ45 (LAN), IR, USB 2.0 Type A (2) |
| Output | Audio, RS-232C (4 Pin Phone-Jack), IR (No / Yes (Support IR Daisy Chain via RS232C In/Out)) |
| Speaker | 10 W × 2 |
| Language | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski |
| Basic | Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder (For Power Cord), IR/Light Sensor Receiver (EU/EK Only), Magnetic Sheet (2, EU/EK Only) |
| Optional | Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light Sensor Receiver (ACC-L) |
| Tilt (Facedown) | Yes (Max. 15° Degree, 40°C Temperature) (TBD) |
| IP Rating | IP5X |
| Conformal Coating (Power Board) | Yes (Partial Space Coating) |
| Brand | LG |
|---|---|
| Product Type | TV & Home Theatre > Digital Signage |
| Weight | 6.44 kg |
| Warranty |
|---|
