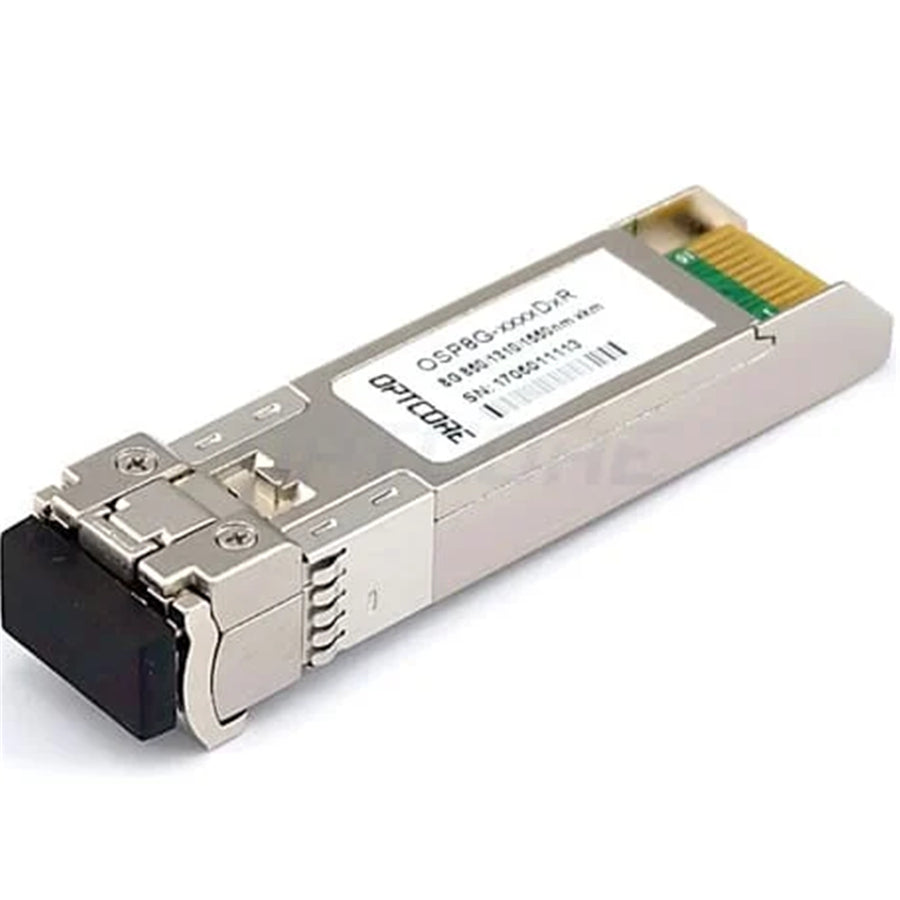

57-0000088-01 - Brocade GBIC SFP+ 16Gb SW LC 850nm Transceiver Module - SPN
57-0000088-01 - Brocade GBIC SFP+ 16Gb SW LC 850nm Transceiver Module - SPN
Features
Brocade 57-0000088-01 Compatible 16G Fibre Channel SWL SFP+ Transceiver (MMF, 850nm, 100m, LC, DOM)
This Brocade 57-0000088-01 compatible part is a small form factor pluggable SFP+ shortwave transceiver for 16G Fibre Channel (16GFC) applications. It supports links up to 100m over OM3 multimode fiber. This module features a highly reliable 850nm VCSEL transmitter and PIN photo-detector into a duplex LC optical connector. It is a multi-rated 850nm optical transceiver that supports 14.025/8.5/4.25G Fibre Channel specifications. This compatible 57-0000088-01 complies with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 4.1 and SFF-8472 Rev. 11.0. It has been programmed to ensure works with Brocade 16G SAN switches, routers, network interface cards (NICs) and other storage networking equipment.
- Functionally identical to Brocade 57-0000088-01
- Optical interface compliant to IEEE 802.3ae
- Electrical interface compliant to SFF-8431
- 850nm VCSEL transmitter, PIN photo-detector
- Built-in CDR with shut-off control
- Single +3.3V power supply
- Advanced firmware allow customer system
Specifications
Technical Specifications
| Form Factor | SFP+ |
|---|---|
| Data Rate | 14.025 Gb/s |
| Wavelength | 850 nm |
| Fiber Type | MMF |
| Max Distance | 100m on OM3 |
| Optical Components | VCSEL/PIN |
| Transmitter Power | -6.5 ~ -1.2 dBm |
| Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -10.5 dBm |
| Receiver Overload | > -1 dBm |
| Connector | LC Duplex |
| Digital Diagnostic Monitoring | Yes |
| Operating temperature | 0°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Weight | 0.03 kg |
| Application | High-speed storage area networks- Switches and hubs- Network interface cards- Mass storage systems- Host bus adaptersTri-Rate 4G/8G/16G FibreChannel |
| Compliance | IEC/EN 61000-4-2,IEC-60825FDA 21CFR 1040.10 and 1040.11RoHS |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Brocade |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
