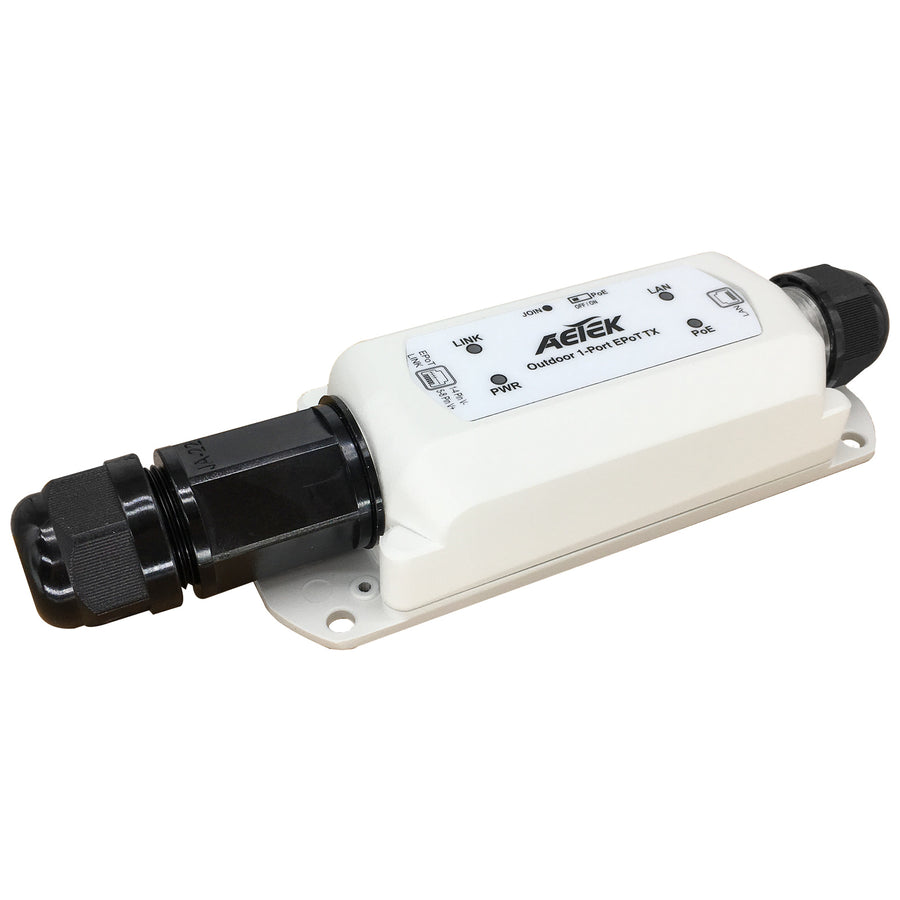

AETEK TE22-110-TX Outdoor 1-Port EPoT TX Adapter.x
Features
The TE22-110-TX, a outdoor 1-to-1 EPoT (Ethernet & Power over UTP/STP Cable) transmitter(TX) adapter equipped with 1 EPoT port & 1 RJ-45 PoE port, is designed to connect a remote PoE IP camera over single UTP/STP Cable without requiring extra power supply. This cutting-edge model delivers data and power at long range up to 1,200m for a PoE IP camera.
Outdoor model supports built-in 6KV EPoT surge protection, IP67 rated, IK10 vandal proof, and operates under harsh weather conditions between -30°C ~ 60°C (-22°F ~ 140°F).
- One RJ45 EPoT port & one 10/100Mbps LAN PoE PSE port
- IP67 rated, IK10 vandal proof
- Built-in 6KV EPoT surge protection
- Long-range IP data & PoE over 4-pair/2-pair/1-pair UTP /STP cat.5e/6 cables
- Supports peer-to-peer, daisy-chain, and failover Ring topologies
- Eliminates the need for intermediate Ethernet switches & power supplies for long-range deployment
- Plug-and-Play connection
- PoE Output On/Off control
Applications
Specifications
Technical Specifications
| EPoT Port | RJ45 x1 |
|---|---|
| 10/100 Mbps Ethernet | PoE PSE RJ45 x1 |
| Transmission mode | Transmitter TX mode |
| MAX.(Power+Data) Distance | 100Mbps, 9.7W @ 1,200m(3,937ft) |
| Cable Type | UTP/STP cat.5e/6 Cable |
| Bandwidth | 600 Mbps |
| Power Input | EPoT @ 50~57VDC |
| Power Output | Passive PoE (Compliant IEEE 802.3af PoE) |
| Unit Power Consumption | 3 watts |
| EPoT Surge Protection | 6KV |
| Weather Rating | IP67 |
| Vandal Proof | IK10 |
| Dimensions (LxWxH) | 157 x 55.8 x 39.75 mm (6.18x2.2x1.56") |
| Weight | 0.3 kg (0.66 lb) |
| Connectors | EPoT RJ45 x1, POE LAN RJ45 x1, DIP Switch x1 |
| Mounting Type | Wall mount |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Relative Humidity | 5% ~ 95% non-condensing |
| EMC | CE, FCC, VCCI, C-Tick |
| LAN | Ethernet status |
| PWR | Power status |
| LINK | EPoT RX device connect status |
| POE | PoE status |
| Brand | Aetek |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
