ANT-98 - L-COM 5.8 GHz 22 dBi Cast Reflector Grid Antenna HG5822G
L-com

ANT-98 - L-COM 5.8 GHz 22 dBi Cast Reflector Grid Antenna HG5822G

SKU: ANT-98 ● In Stock
$65.00
Free shipping over $299 Genuine product 7-day returns

ANT-98

ANT-98 - L-COM 5.8 GHz 22 dBi Cast Reflector Grid Antenna HG5822G

Description

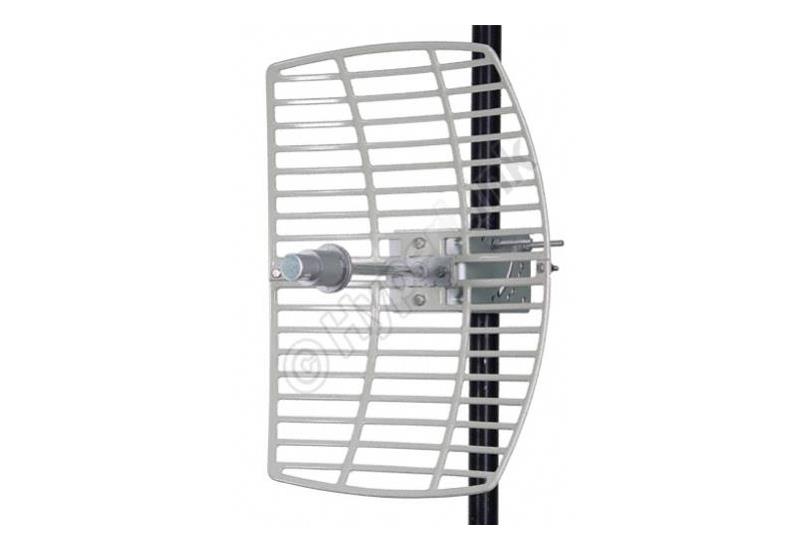

L-com 5.8 GHz 22 dBi Cast Reflector Grid Antenna. The HyperGain HG5822G 22dBi High-Performance Cast Reflector Grid Wi-Fi Antenna is ideal for long-range highly directional 5.8GHz ISM and UNII band applications. These antennas are ideal for point to point systems, point to multi-point and wireless bridges. Its compact design makes it nearly invisible in most installations, and it can be installed for either vertical or horizontal polarization. The antennas' construction features a rust-proof cast aluminium reflector grid for superior strength and light weight. The 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading. This antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. They can be adjusted up or down from 0deg to 60deg.

Specifications

Details
Manufacturer's Product Code HG4958-22EG
Frequency Range 5725-5850MHz
Gain 22dBi
Polarisation Vertical or Horizontal
Vertical Beamwidth 13deg
Horizontal Beamwidth 10deg
Connector Type N-Type Female
Dimensions 300x400mm
Pole Mount Diameter 32-50mm
