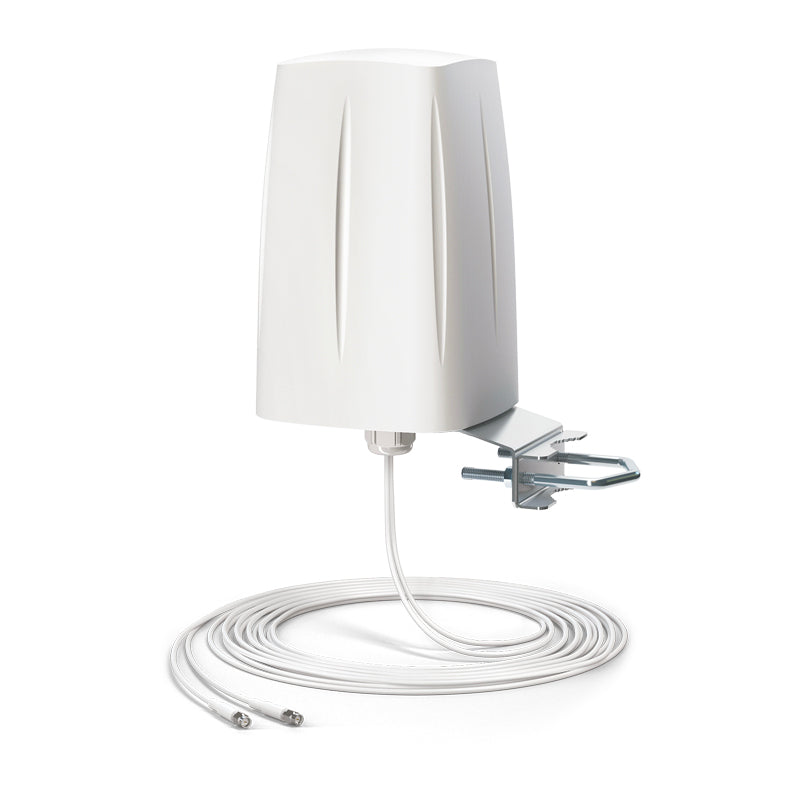

AOLM2-1 - QuWireless QuOmni 4dBi 4G/LTE MIMO 2x2 Antenna with 10m Coax and SMA-Male Connectors
QuWireless

AOLM2-1 - QuWireless QuOmni 4dBi 4G/LTE MIMO 2x2 Antenna with 10m Coax and SMA-Male Connectors

SKU: AOLM2-1 ● Out of Stock
$289.93
Free shipping over $299 Genuine product 7-day returns

AOLM2-1

AOLM2-1 - QuWireless QuOmni 4dBi 4G/LTE MIMO 2x2 Antenna with 10m Coax and SMA-Male Connectors

Description

The QuOmni LTE omnidirectional 4dBi MIMO 2x2 4G/LTE with 10m coax cable and 2 x SMA-Male connectors antenna is working in Vertical polarization, it's desired for LTE/4G/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by 4G/LTE.
It’s compatible with Teltonika: RUT241, RUT900, RUT951, RUT956, RUTX09, RUTX11 and other MIMO 2x2 LTE/4G/3G/2G modems and routers.
Features
  • IP67 Outdoor antenna
  • Wall or Pole Mount
  • Easy to Install
  • 10m Coax with 2 x SMA male connectors

Specifications

Details
Product Code AOLM2
Frequency 694 - 960 MHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Frequency Gain 0.694 - 0.96 GHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 4 dBi
Beamwidth 360°/35° +/- 5°
Cable Length 10m
Connector Type SMA Male
Polarization Vertical
Impedance 50 Ω
Materials ABS, aluminum, PTFE
Pole Diameter 40-60 mm
Ingress Protection IP67
Dimensions 160 x 160 x 240 mm
Weight 1.5 kg
Operating Temperature From -40°C to 75°C
