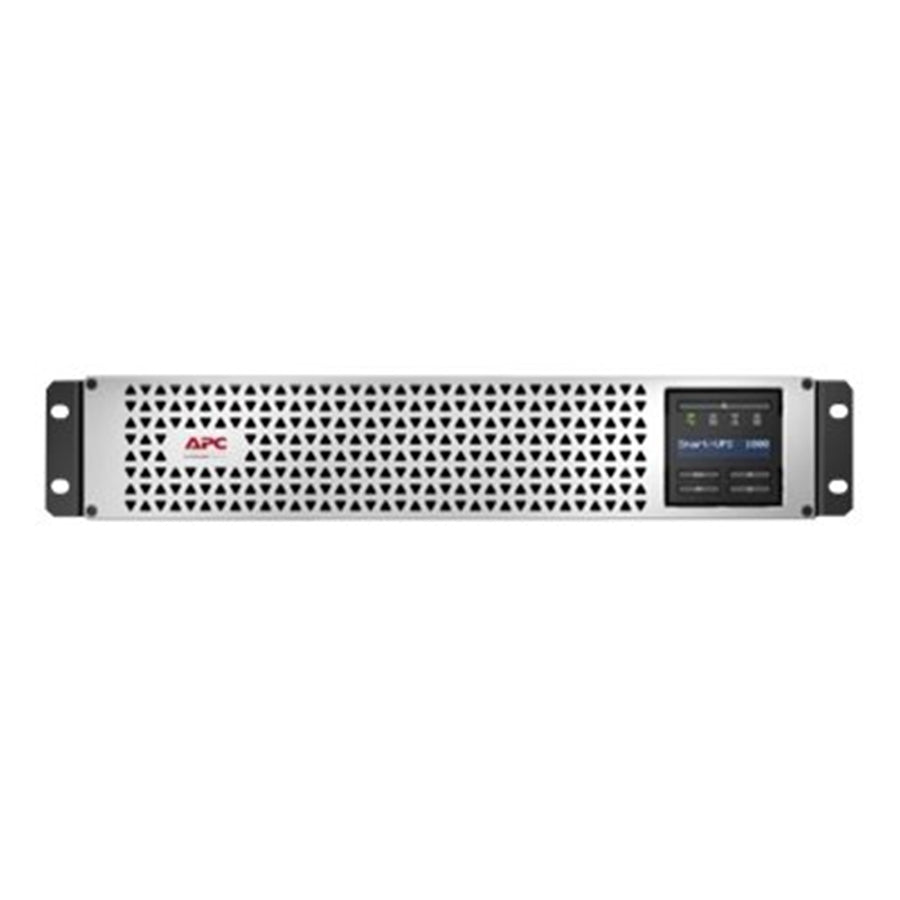

APC Smart-UPS Lithium Ion Short Depth
Features
Smart-UPS Lithium Ion Short Depth 1000VA 230V with SmartConnect
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6 x IEC 320 C13 outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.
- 1000VA/800W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Short depth UPS provides extra space for cable management
- Tower convertible with stabilizing feet (sold separately)
- Environmental performance of the product
Environmental performance of the product - SustainabilityGreen Premium™
Green Premium™ label is Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.
Specifications
Technical Specifications
| Main Input Voltage | 230 V |
|---|---|
| Other Input Voltage | 220 V240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V240 V |
| Rated Power In W | 800 W |
| Rated Power In Va | 1000 VA |
| Product Or Component Type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 6 IEC 60320 C13 |
| Number Of Rack Unit | 2U |
| Battery Type | Li-Ion (Lithium-Ion) |
| Battery Recharge Time | 3 h |
| Battery Design Life | 8…10 year(s) |
| Battery Charger Power | 79 W rated |
| Product Web | Sub-Family Cloud-enabled monitoring |
| Redundant | No |
| Colour | Black with silver front bezel |
| Height | 8.6 cm |
| Width | 43.8 cm |
| Depth | 31.8 cm |
| Net Weight | 16.3 kg |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Usb Compatible | Yes |
| Input Protection Type | Circuit breaker |
| Input Voltage Limits | 151...302 V adjustable160...280 V |
| Network Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Crest Factor | 3 : 1 |
| Harmonic Distortion | Less than 5 % |
| Maximum Configurable Power In Va | 1000 VA |
| Maximum Configurable Power In W | 800 W |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Ups Type | Line interactive |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Product Certifications | C-TickCEEACRCM |
| Standards | EN/IEC 62040-2:2006/AC:2006EN/IEC 62040-2:2018 |
| Acoustic Level | 41 dBA |
| Heat Dissipation | 70 Btu/h |
| Operating Altitude | 0...10000 ft |
| Ambient Air Temperature For Operation | 0…40 °C |
| Ambient Air Temperature For Storage | -15…45 °C |
| Storage Altitude | 0.00…7620.00 m |
| Ip Degree Of Protection | IP20 |
| Relative Humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Alarm | Audible and visible alarms |
| Control Panel | Multifunction LCD status and control console |
| Free Slots | 1 |
| Communication Port Support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Alarm | Alarm when on battery : distinctive low battery alarm |
| Surge Energy Rate | 680 J |
| Noise Suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type Of Package 1 | PCE |
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 22.9 cm |
| Package 1 Width | 47.2 cm |
| Package 1 Length | 58.4 cm |
| Package 1 Weight | 18.6 kg |
| Brand | APC |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 9.206 kg |
| Warranty |
|---|
