-1%
APC

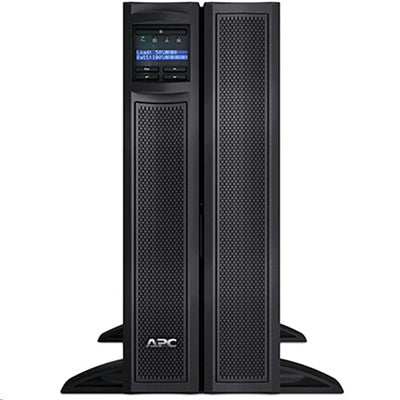

APC Smart-UPS X 2200VA Short Depth Tower
$2,984.34$3,002.61
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
APC Smart-UPS X SMX2200HV 2200VA Rack/Tower LCD.
The black Smart-UPS X 2200VA Rack/Tower LCD 200-240V from APC is an extended runtime model Uninterruptible Power Supply (UPS) designed to protect connected loads from surges, spikes, lightning, and other power disturbances. The battery is hot-swappable and easy to replace. An audible alarm lets you know if the battery is low or if there is an overload condition. The UPS can be used in a tower or rackmount configuration. It features a LED status display with On Line, On Battery, Replace Battery and Overload indicators, multi-function LCD status and control console.
- 1980W / 2200VA Output
- 208V Input
- SmartSlot, USB Port
- LCD Interface
- 3 Hours Typical Recharge Time
- Hot-Swappable Battery
- Easy Battery Replacement
- Audible Alarms
- Emergency Power Off (EPO)
- 4U Rackmount
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions, without using the battery (not available on all models)
Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent, precision charging
Power Conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature
Automatic Restart of Loads after UPS Shutdown
Automatically starts up the connected equipment upon the return of utility power
Automatic Self-Test
Periodic battery self-test ensures early detection of a battery that needs to be replaced
Disconnected Battery Notification
Warns when a battery is not available to provide backup power
Network Manageable
Provides remote power management of the UPS over the network
Audible Alarms
Actively lets you know if the unit is on battery, if the battery is low or if there is an overload condition
LED Status Indicators
Quickly understands unit and power status with visual indicators
Serial Connectivity
Provides management of the UPS via a serial port
USB Connectivity
Provides management of the UPS via a USB port (not available on all models)
Disconnected Battery Notification
Warns when a battery is not available to provide backup power
User-Replaceable Batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, reducing Mean Time to Repair (MTTR)
Hot-Swappable Batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive Failure Notification
Provides early-warning fault analysis ensuring proactive component replacement
Resettable Circuit Breakers
Enables a quick recovery from overload events
Battery Failure Notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adjustable Voltage-Transfer Points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
Adjustable Voltage Sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Safety-Agency Approved
Ensures that the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
The black Smart-UPS X 2200VA Rack/Tower LCD 200-240V from APC is an extended runtime model Uninterruptible Power Supply (UPS) designed to protect connected loads from surges, spikes, lightning, and other power disturbances. The battery is hot-swappable and easy to replace. An audible alarm lets you know if the battery is low or if there is an overload condition. The UPS can be used in a tower or rackmount configuration. It features a LED status display with On Line, On Battery, Replace Battery and Overload indicators, multi-function LCD status and control console.
- 1980W / 2200VA Output
- 208V Input
- SmartSlot, USB Port
- LCD Interface
- 3 Hours Typical Recharge Time
- Hot-Swappable Battery
- Easy Battery Replacement
- Audible Alarms
- Emergency Power Off (EPO)
- 4U Rackmount
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions, without using the battery (not available on all models)
Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent, precision charging
Power Conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature
Automatic Restart of Loads after UPS Shutdown
Automatically starts up the connected equipment upon the return of utility power
Automatic Self-Test
Periodic battery self-test ensures early detection of a battery that needs to be replaced
Disconnected Battery Notification
Warns when a battery is not available to provide backup power
Network Manageable
Provides remote power management of the UPS over the network
Audible Alarms
Actively lets you know if the unit is on battery, if the battery is low or if there is an overload condition
LED Status Indicators
Quickly understands unit and power status with visual indicators
Serial Connectivity
Provides management of the UPS via a serial port
USB Connectivity
Provides management of the UPS via a USB port (not available on all models)
Disconnected Battery Notification
Warns when a battery is not available to provide backup power
User-Replaceable Batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, reducing Mean Time to Repair (MTTR)
Hot-Swappable Batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive Failure Notification
Provides early-warning fault analysis ensuring proactive component replacement
Resettable Circuit Breakers
Enables a quick recovery from overload events
Battery Failure Notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adjustable Voltage-Transfer Points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
Adjustable Voltage Sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Safety-Agency Approved
Ensures that the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
Specifications
Technical Specifications
| Output Power Capacity | 1980 W / 2200 VA |
|---|---|
| Maximum Configurable Power | 1980 W / 2200 VA |
| Nominal Output Voltage | 230 V |
| Output Voltage Distortion | Less than 5% |
| Output Frequency (Sync to Mains) | 50/60 Hz +/- 3 Hz |
| Other Output Voltages | 208 V, 220 V, 240 V |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Output Connections | 8 x IEC 320 C132 x IEC 320 C192 x IEC jumpers |
| Nominal Input Voltage | 208 V, 230 V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections | IEC-320 C20Schuko CEE 7/EU1-16PBritish BS1363A |
| Cord Length | 6.00' (1.83 m) |
| Input Voltage Range | For Main Operations: 140 - 280 V |
| Other Input Voltages | 220 V, 240 V |
| Transfer Time | 2 - 4 ms |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof |
| Typical Recharge Time | 3 hours |
| Replacement Battery | APCRBC143 |
| RBC Quantity | 1 |
| Load v/s Efficiency | 25%: 93.2%50%: 96.4%75%: 97.5%100%: 98.1% |
| Interface Ports | SmartSlot, USB |
| Available SmartSlot Interface | 1 |
| Control Panel | LED status display with On Line, On Battery, Replace Battery, and Overload indicators, multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery, distinctive low battery alarm, configurable delays |
| Emergency Power Off (EPO) | Yes |
| Surge Energy Rating | 645 Joules |
| Filtering | Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449 |
| Operating Temperature | 32 - 104°F (0 - 40°C) |
| Storage Temperature | 5 - 113°F (-15 - 45°C) |
| Operating Relative Humidity | 0 - 95% |
| Storage Relative Humidity | 0 - 95% |
| Operating Elevation | 0 - 9842.5' (0 - 3000.0 m) |
| Storage Elevation | 0 - 49212.6' (0 - 15000.0 m) |
| Audible Noise | At 1 m from Surface of Unit: 55 dBA |
| Online Thermal Dissipation | 150 BTU/hour |
| Regulatory Approvals | C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE |
| Compliance | RoHSREACH: Contains no SVHCs |
| Rack Height | 4U |
| Dimensions (W x H x D) | 7.0 x 17.0 x 19.0" (178.0 x 432.0 x 483.0 mm) |
| Weight | 85.19 lb (38.64 kg) |
| Brand | APC |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 20.544 kg |
| Warranty |
|---|
