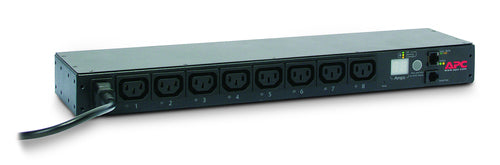

APC SWITCHED 1U RACK PDU 12A/208V, 10A/230V, (8)C13, 2YR
APC SWITCHED 1U RACK PDU 12A/208V, 10A/230V, (8)C13, 2YR
APC

APC SWITCHED 1U RACK PDU 12A/208V, 10A/230V, (8)C13, 2YR

SKU: AP7920B ● In Stock
$2,246.45
Free shipping over $299 Genuine product 7-day returns
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Technical Specifications

PDU types Metered,Switched
Rack capacity 0U/1U
Mounting Horizontal/Vertical
Product colour Black
AC outlets quantity 8
Power plug C14 coupler
AC outlet types C13 coupler
Input connection type IEC-320 C14
Cable length 1.98
Monitoring Current,Power,Voltage
Outlet control Lock-out,Recycle,Turn off,Turn on
Nominal input voltage 200-230
AC input frequency 50 - 60
Maximum current 10
Nominal output voltage 208-230
Load capacity 2300
Maximum input current per phase 10
Maximum total current draw per phase 10
Maximum power 2300
Compliance certificates RoHS
Certification cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Operating temperature (T-T) 0 - 45
Storage temperature (T-T) -25 - 65
Operating relative humidity (H-H) 0 - 95
Storage relative humidity (H-H) 0 - 95
Operating altitude 0 - 3000
Non-operating altitude 1 - 15000
Width 445
Depth 108
Height 44
Weight 2270
Package weight 3450
Package width 470
Package depth 343
Package height 70
Total carbon footprint (kg of CO2e) 915.89
