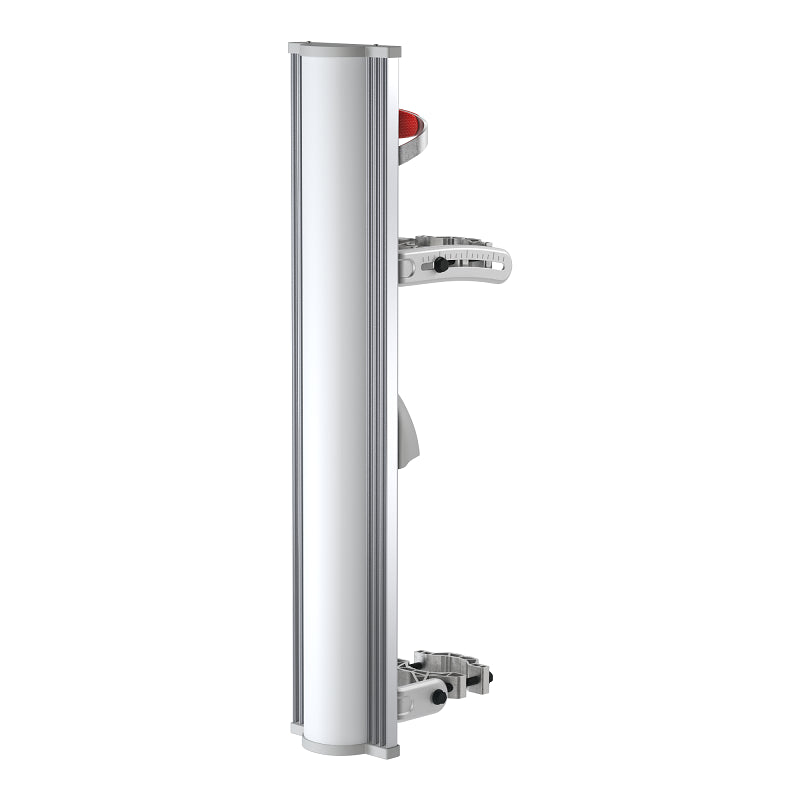

AS-5-20 - RF Elements 5GHz 20 dBi Premium sector antenna with integrated BackShield and extremely wide bandwidth

Description

RF Elements 5GHz 20 dBi Array Sector Antenna. RF elements Array Sector Antennas have optimized gain performance in the whole useful bandwidth. Thanks to the constant gain, the antennas deliver excellent performance regardless which channel is used.

Array Sector Antennas operate in the frequency range 5150-5850MHz. The 700MHz wide working spectrum covers U-NII-1 to U-NII-3 bands.

Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.

Array Sector Antennas are made of high grade aluminium that makes them compact, light, and extremely durable.

Features
  • Stable Gain Across The Band
  • Optimized For Co-Location
  • Patented frequency-selective surface that effectively attenuates back radiation and the side lobes in the azimuthal plane
  • Wide Platform Compatibility, works with Cambium, Mimosa, MikroTik, Ubiquiti
  • Designed for quick & easy assembly, installation and alignment
  • Solid extruded aluminium body enables Array Sector Antennas endure any weather conditions
  • Hardware with Anti-Seize Coating

Specifications

Details
Manufacturer's Product Code AS-5-20
Frequency Range 5150 - 5850 MHz
Gain 20 dBi
Antenna Connection 2x RP-SMA on integrated semi-flex pigtails
Antenna Type Patch Array Sector
Enviromental IP55
Temperature -35°C to +55°C (-31°F to +131°F)
Wind Survival 160 km/hour
Pole Mounting Diameter 40-80mm (recommend as close to 80mm as possible)
