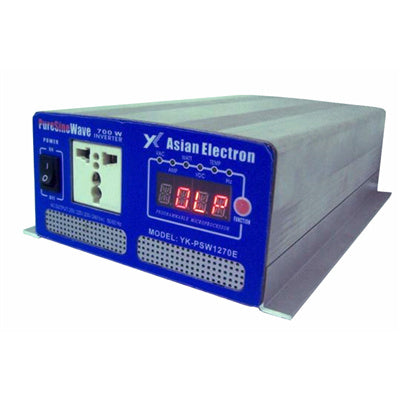

Asian Electron YK-PSW1270E - 12VDC 700watt Pure Sine Wave inverter

Features

Asian Electron YK-PSW1270E 12VDC 700watt Pure Sine Wave Inverter

-Digital Display
-Pure sine wave output (THD < 3%) R Load
-Output frequency: 50/ 60Hz switch
-Low power "Power Saving Mode" to conserve energy
-RS - 232 interface/ remote control port/ wire connection to PC
-Wired remote control
-Loading controlled cooling fan
-Advanced microprocessor

Specifications

Technical Specifications

Continuous Output Power	700W
Maximum Output Power (3Min.)	780W
Surge Rating	1400W
Input Voltage	12V
Input Voltage Range	10.5-16 VDC
Output Voltage	200/220 / 230 / 240V RMS ± 3%
Frequency	50/60Hz ±0.05% (Switch Selectable)
Efficiency (full load)	92%
No Load Current Draw	0.83A
Output Waveform	Pure Sine Wave < THD 3%
Protection	Overload, Short Circuit, Reverse Polarity (Fuse), Over/Under Input Voltage, Over Temperature.
Digital Display	OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz
Interface Control Port	RS-232C With Baud Rate 2400, 4800,9600,19200 (Switch Selectable)
Operating Temperature Range	0-50ºC
Storage Temperature Range	-30ºC to 70ºC
Cooling	Loading controlled cooling fan
Dimensions	298(L) x 179(W) x 81(H) mm
Weight	2.8kgs
