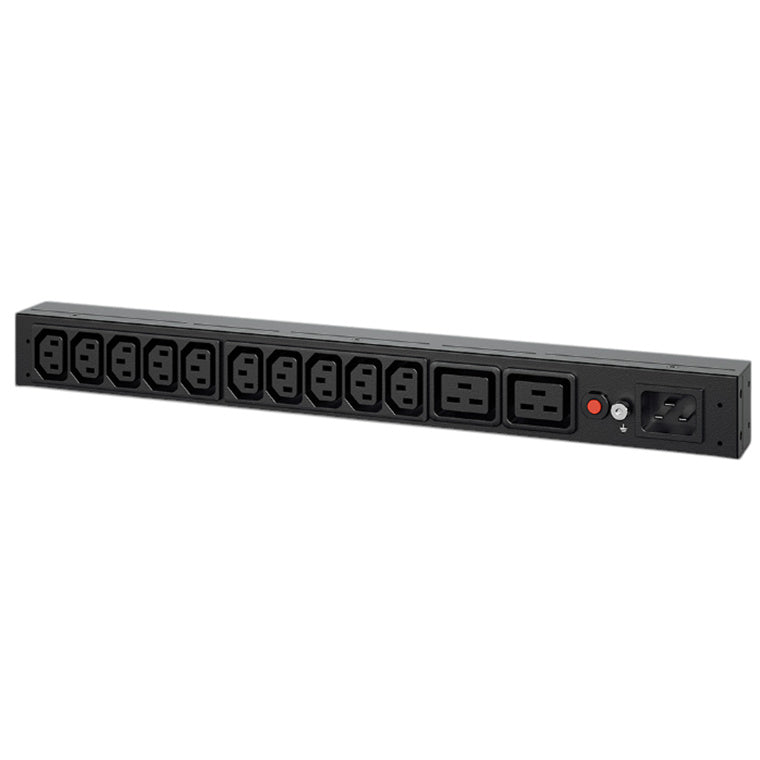

CyberPower Systems PDU20BHVIEC12Ra - Basic P+J126:J207DU 1RU horizontal 16Amp IEC-320 C20 input  Hardware

The CyberPower PDU20BHVIEC12Ra is a power distribution unit designed to supply reliable power to multiple devices in data center environments. It acts as a bridge, distributing output from sources such as an uninterruptible power supply (UPS), generator, or utility power. This ensures that critical infrastructure and connected devices remain operational even in challenging conditions or when only distant power sources are available.

Robust Construction and Flexible Installation

Constructed with rugged, industrial-grade steel housing, the PDU is built to withstand the demanding environments often found in data centers, server rooms, or industrial sites. Its strong build quality is complemented by a compact, 1U rackmount form factor that supports various installation methods, including vertical, horizontal, and undercounter placement. Additionally, adjustable mounting brackets (both short and long L-shape options) offer flexibility for different rack configurations or mounting surfaces.

Electrical Input and Compatibility

The unit operates on a single-phase power input with a rated voltage of 200-240V and supports both 50 Hz and 60 Hz frequency environments, making it suitable for global applications. It features a ten-foot (3.05m) ultra-long power cord and a standard IEC C20 input connector, enabling installation where power sources may be remotely located from the equipment rack.

Advanced Protection and Output Options

Safety and reliability are further ensured by integrated overload protection through a circuit breaker and per-bank overcurrent protection (up to 16A). The PDU provides a single bank of twelve rear-facing outlets, including two IEC C19 and ten IEC C13 socket types, accommodating a wide range of server, networking, and industrial equipment plugs. A cord retention tray is provided to secure connected power cables, minimizing accidental disconnections.

Physical Features and Practical Design

The CyberPower PDU20BHVIEC12Ra is designed in sleek black steel, measuring 17.5 x 1.75 x 1.5 inches (445 x 44.5 x 38.1 mm) and weighing only 0.9 kg (2 lbs). Its low profile and sturdy construction allow easy integration into standard rack spaces without consuming excessive room or weight capacity. Additional features, such as the external site ground pin, enhance safety for comprehensive installation in both traditional and non-standard data center configurations.
