CyberPower Systems

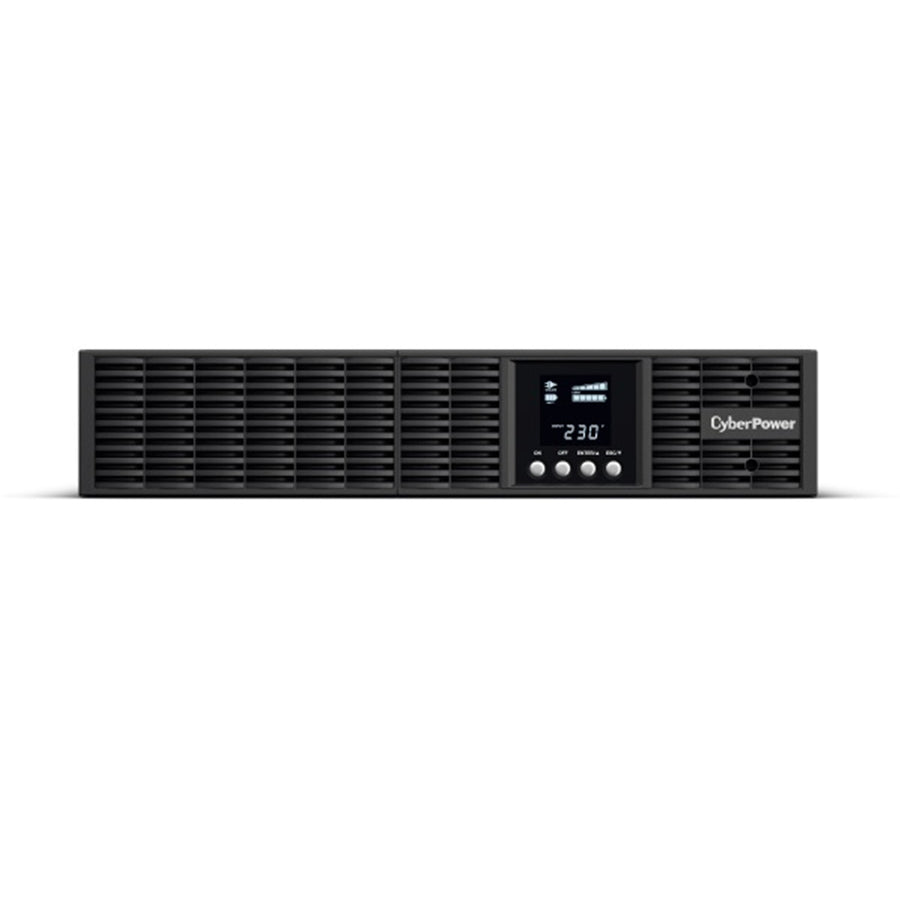

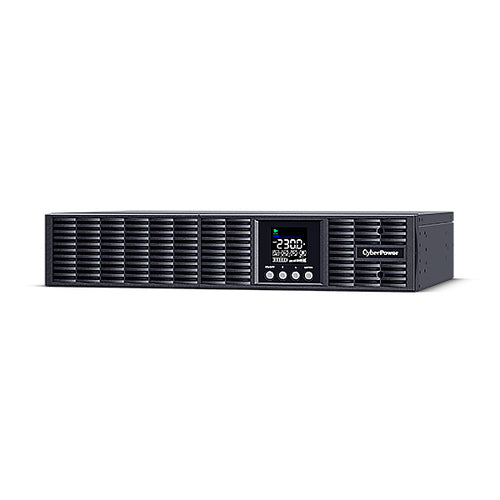

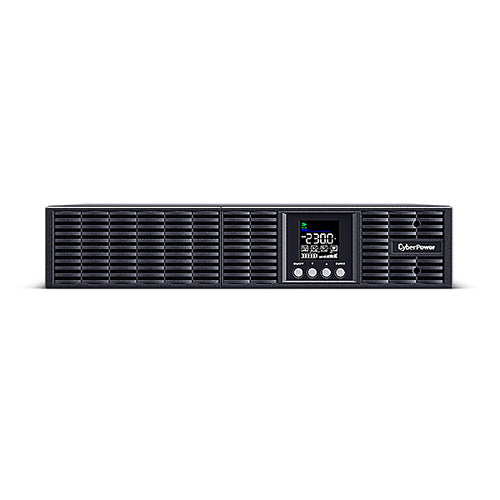

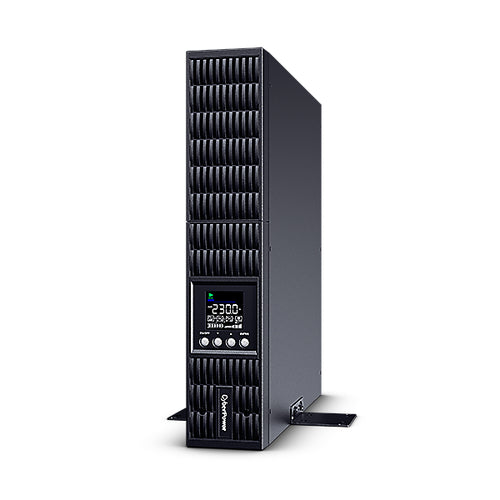

CyberPower Systems OLS2000ERT2Ua - Online S (A) 2000VA/1800W Rack UPS - 12V/9AH#4 - 8x IEC C13 - USB & Serial Port & SNMP Slot (optional RMCARD205) Hardware
$1,148.69
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
CyberPower OLS2000ERT2U is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.
- Online (Double Conversion) UPS Topology
- ECO Mode
- Generator Compatible
- Overload Protection Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- Phone/Fax/Modem/DSL/Network Protection
- LCD Status Display
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Rack/Tower Convertible Configurations
Specifications
Technical Specifications
| Phase | Single Phase |
|---|---|
| UPS Topology | Online Double Conversion |
| Energy Saving Technology | Online ECO Mode Efficiency > 95% |
| Active PFC Compatibility | Yes |
| Generator Compatibility | Yes |
| Nominal Input Voltage ( Vac ) | 230 ± 10% |
| Input Voltage Range ( Vac ) | 160 ~ 300 |
| Adjustable Voltage Range ( Vac ) | 0~50% Load for 110 ~ 300 Vac0~60% Load for 120 ~ 300 Vac0~80% Load for 140 ~ 300 Vac0~100% Load for 160 ~ 300 Vac |
| Input Frequency ( Hz ) | 50 ± 1060 ± 10 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current ( A ) | 9 |
| Input Power Factor | 0.98 |
| Input Connector Type | IEC C20 |
| Plug Style | Straight |
| Detachable Power Cord Plug Type | AU x 1 |
| Power Cord Length (ft.) | 5.9 |
| Power Cord Length (m.) | 1.8 |
| Capacity (VA) | 2000 |
| Capacity (Watts) | 1800 |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage(s) ( Vac ) | 208 ± 1%220 ± 1%230 ± 1%240 ± 1% |
| Output Voltage Setting | Configurable |
| On Battery Frequency ( Hz ) | 50 ± 0.5%60 ± 0.5% |
| Output Frequency Setting | Configurable |
| Power Factor | 0.9 |
| ECO Mode Voltage Tolerance | ± 15 % |
| Overload Protection | Internal Current Limiting , Circuit Breaker , Fuse |
| Overload Protection (Line Mode) | 110~120% Load for 1 min, >120% Load Immediately |
| Overload Protection (Battery Mode) | 110~120% Load for 10 sec, >120% Load Immediately |
| Overload Protection (Bypass Mode) | >130% Load Immediately |
| Crest Factor | 3 : 1 |
| Harmonic Distortion (Linear Load) | THD<3% |
| Harmonic Distortion (Non-linear Load) | THD<5% |
| Internal Bypass | Automatic Bypass , Manual Bypass |

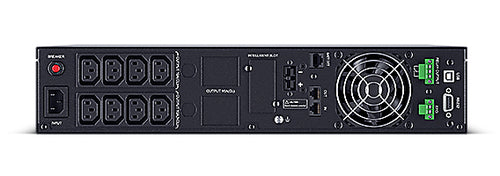

| Outlet(s) - Total | 8 |
| Outlet Type | IEC C13 x 8 |
| Outlet(s) - Battery & Surge Protected | 8 |
| Typical Transfer Time ( ms ) | 0 |
| Runtime at Half Load ( min ) | 15 |
| Runtime at Full Load ( min ) | 5 |
| Typical Recharge Time ( Hours ) | 5 |
| Maximum Charging Current ( A ) | 1 |
| Start On Battery | Yes |
| Smart Battery Management (SBM) | Yes |
| User-replaceable | Yes |
| Hot-swappable | Yes |
| Battery Type | Sealed Lead-acid |
| Battery Cartridge | RBP0069 |
| RBP Quantity ( pcs ) | 1 |
| Battery Quantity (Each RBP) ( pcs ) | 6 |
| Battery Voltage (Each RBP) ( V ) | 72 |
| Single Battery Capacity ( AH ) | 12 V 7 AH |
| Extended Battery Module (EBM) | BPSE72V45ART2U |
| Max. EBM Quantity ( pcs ) | 3 |
| Surge Suppression ( Joules ) | 440 |
| EMI/RFI Filtration | Yes |
| Phone/Network Protection RJ11/RJ45 (Combo) | 1-in, 1-out |
| LCD Panel | Yes |
| LCD Information Display | Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log |
| LCD Setting & Control | Mode Setting , Alarm Setting , Input & Output , Battery Setting |
| HID Compliant USB Port(s) | 1 |
| Serial Port | RS232 |
| Emergency Power Off (EPO) Port | Yes |
| Audible Alarms | Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery |
| Management Cable ( pcs ) | Power Cord x2 , USB Cable x1 , Phone Line x1 |
| Power Management Software | PowerPanel® Business |
| SNMP/HTTP Remote Monitoring | Yes - with optional RMCARD205 |
| Form Factor | Rack/Tower |
| Enclosure Construction | Metal |
| Color | Black |
| Rackmount Rail | Yes |
| Dimensions (WxHxD) (in.) | 17.24 x 3.46 x 24.2 |
| Dimensions (WxHxD) (mm.) | 438 x 88 x 610 |
| Weight (lbs.) | 46.74 |
| Weight (kg.) | 21.2 |
| Installed Rack Height ( U ) | 2 |
| Dimensions (WxHxD) (in.) | 21.65 x 9.09 x 29.37 |
| Dimensions (WxHxD) (mm.) | 550 x 231 x 746 |
| Weight (lbs.) | 61.07 |
| Weight (kg.) | 27.7 |
| Operating Temperature (°F) | 32 ~ 104 |
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) ( % ) | 20 ~ 90 |
| Operating Elevation ( feet/meters ) | 0-5,000 feet (0-1,500 meters) |
| Storage Temperature (°F) | -4 ~ 122 |
| Storage Temperature (°C) | -20 ~ 50 |
| Storage Relative Humidity (Non-condensing) ( % ) | 10 ~ 90 |
| Storage Elevation ( feet/meters ) | 0-5,000 feet (0-1,500 meters) |
| Online Thermal Dissipation ( BTU/hr ) | 666 |
| Audible Noise at 1.5M from Surface of Unit ( dBA ) | 45 |
| Certifications | CE , EAC , RCM |
| RoHS | Yes |
| Brand | CyberPower Systems |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution |
| Weight | 23.4 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
You May Also Like
CyberPower Systems

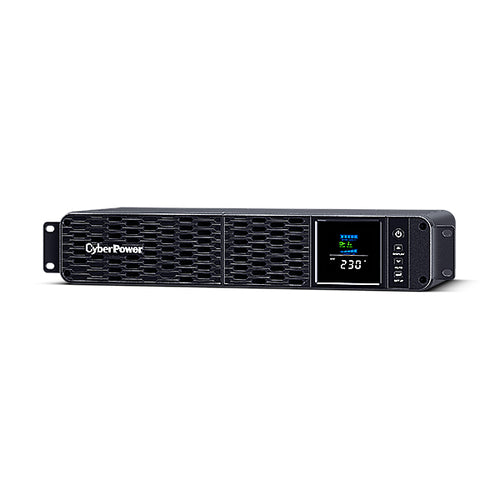

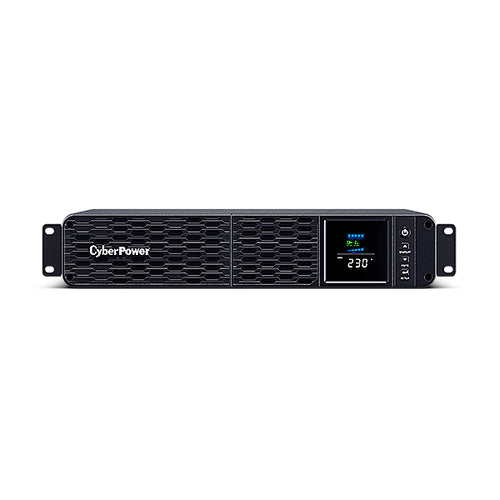

CyberPower Systems CP1200EIPFCRM2U - CP1200EIPFCRM2U PFC Sinewave Series 1200VA / 720W Tower UPS # Hardware
UPS / PDU
$876.51
inc GST ▲
+GST
CyberPower Systems
CyberPower Systems OR600ERM1U - Smart App Office Rackmount Series LCD 600VA / 360W 1U Line Interactive UPS # Hardware
UPS / PDU
$573.90
inc GST ▲
+GST
CyberPower Systems
CyberPower Systems PDU20BHVIEC12Ra - Basic P+J126:J207DU 1RU horizontal 16Amp IEC-320 C20 input Hardware
$189.56
inc GST ▲
+GST
CyberPower Systems

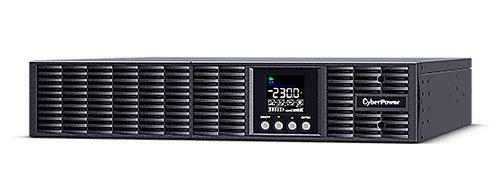

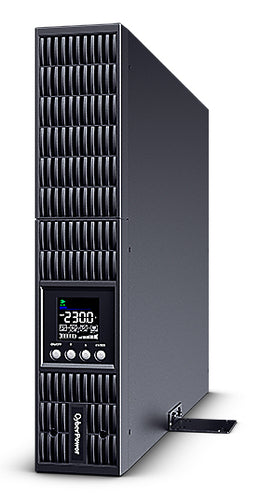

CyberPower Systems OLS3000ERT2Ua - Online S (A) 3000VA/2700W Rack UPS - 12V/9AH#6 - 8x IEC C13- 2x IEC C19 - USB & Serial Port & SNMP Slot (optional RMCARD205) # Hardware
