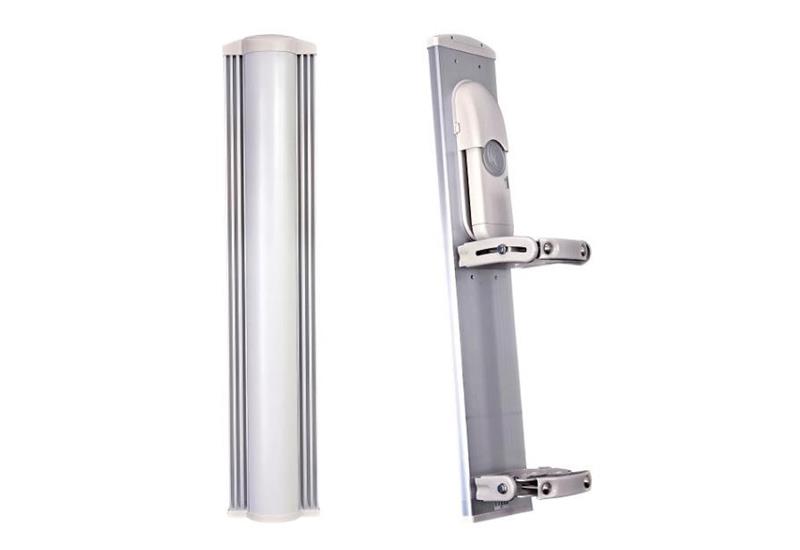

Cambium Networks C024900D004A - Cambium ePMP1000 2.3 to 2.7GHz 90deg Dual Polarity Sector Antenna
Cambium Networks

Cambium Networks C024900D004A - Cambium ePMP1000 2.3 to 2.7GHz 90deg Dual Polarity Sector Antenna

SKU: C024900D004A ● In Stock
$190.00
Free shipping over $299 Genuine product 7-day returns

C024900D004A

Cambium Networks C024900D004A - Cambium ePMP1000 2.3 to 2.7GHz 90deg Dual Polarity Sector Antenna

Description

The Cambium 2.3GHz to 2.7GHz 90deg Sector Antenna offers an ideal array of features - spectral efficiency, the capability to overcome environmental challenges and higher signal strengths. 2x2 Multiple Input and Multiple Output (MIMO) gives the ePMP 1000 antennas the benefits of dual stream operation, provides interference mitigation by enabling the radios to select the best signal quality and allows for successful deployment of wireless networks in difficult environments. Easy Configuration is supported by adjustable hardware and a simple one-step connection with the radio. As an added bonus, a dedicated place is designed for a GPS antenna, providing more flexibility. ePMP1000 Antennas are outdoor-rated. Cambium Networks perform a rigorous set of environmental tests. We validate and guarantee the specifications and ensure their consistency with real life conditions.
Features
  • Suitable for Managed Spectrum Park (MSP) 2.6GHz Applications
  • Covers 2300 - 2700 MHz frequencies

Specifications

Details
Manufacturer's Product Code C024900D004A
Frequency Range 2300 – 2700 GHz
Gain 15 dBi
Polarisation Dual Slant +/- 45 degrees
Max VSWR 1.7:1 MAX
Horizontal Beamwidth 90deg
Elevation Beamwidth 11deg
Connector Type (2) RP-SMA Male
Dimensions 800h x 225w x 67d (excl AP & bracket)
Wind Loading 200 km/hr
Pole Mount Diameter Supports 1” to 4” Dia. Pole
