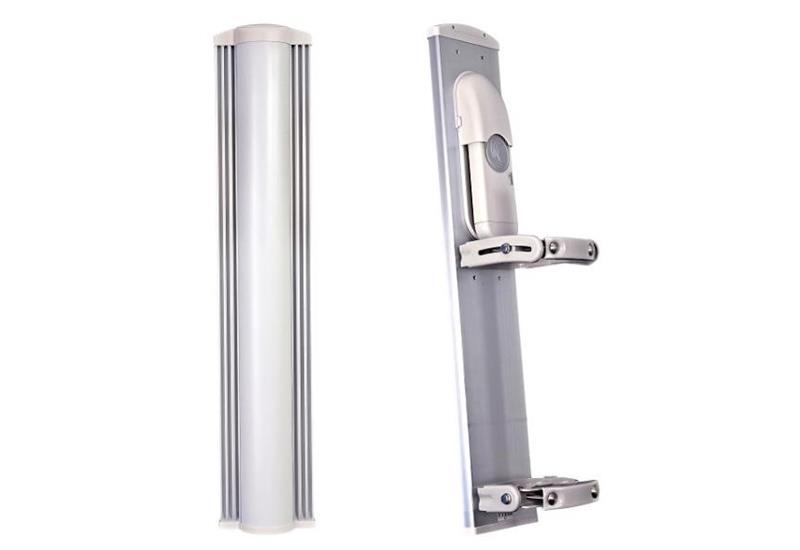

Cambium Networks C050900D002A - Cambium ePMP 1000: 5 GHz 120deg Sector Antenna

C050900D002A

Cambium Networks C050900D002A - Cambium ePMP 1000: 5 GHz 120deg Sector Antenna

The Cambium ePMP 5 GHz and 2.4 GHz ePMP 1000 Sector Antennas offer an ideal array of features - spectral efficiency, the capability to overcome environmental challenges and higher signal strengths. 2x2 Multiple Input and Multiple Output (MIMO) gives the ePMP 1000 antennas the benefits of dual stream operation, provides interference mitigation by enabling the radios to select the best signal quality and allows for successful deployment of wireless networks in difficult environments. Easy Configuration is supported by adjustable hardware and a simple one-step connection with the radio. As an added bonus, a dedicated place is designed for a GPS antenna, providing more flexibility. ePMP 1000 Antennas are outdoor-rated. Cambium Networks perform a rigorous set of environmental tests. We validate and guarantee the specifications and ensure their consistency with real life conditions.

Details
Manufacturer's Product Code	C050900D002A
Frequency Range	5150 – 5875 MHz
Gain	14 dBi
Polarisation	Dual Linear, Horizontal / Vertical
Cross Polarisation	>18 dB
Max VSWR	1.7:1 MAX
Vertical Beamwidth	90deg
Horizontal Beamwidth	120deg
Elevation Beamwidth	12deg
Connector Type	(2) RP-SMA Male
Dimensions	827h x 161w x 59d (excl AP & bracket)
Wind Loading	190 km/h (118 mph)
