Cambium Networks C050940M851 - Cambium ePMP 5 GHz Force 4525L SM Bulk packaging (ROW) (ANZ cord)
Cambium Networks

Cambium Networks C050940M851 - Cambium ePMP 5 GHz Force 4525L SM Bulk packaging (ROW) (ANZ cord)

SKU: C050940M851 ● In Stock
$2,179.00
Free shipping over $299 Genuine product 7-day returns

C050940M851

Cambium Networks C050940M851 - Cambium ePMP 5 GHz Force 4525L SM Bulk packaging (ROW) (ANZ cord)

Description

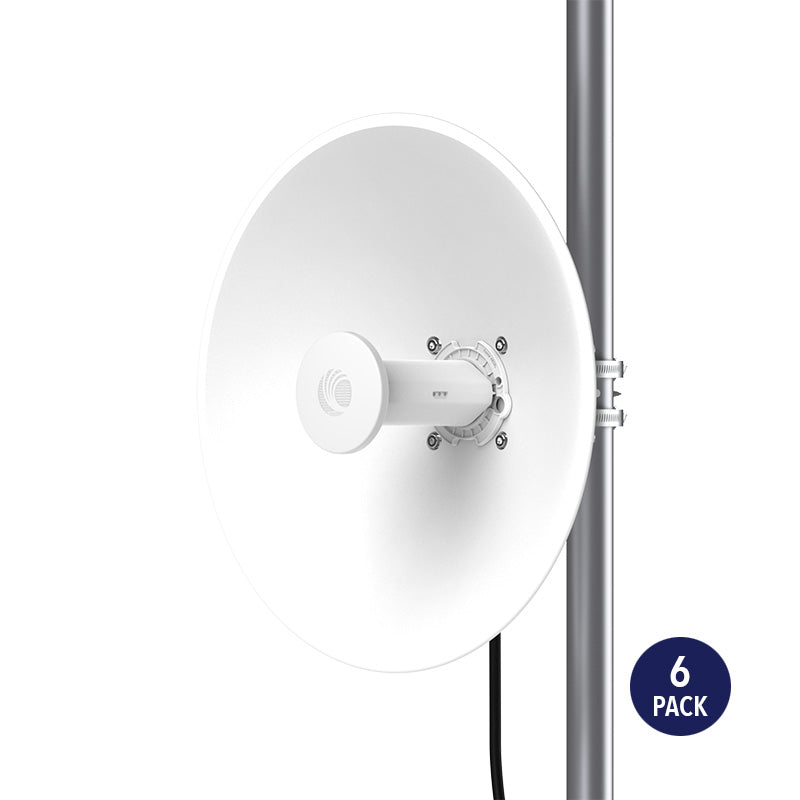

Cambium ePMP 5 GHz Force 4525L Subscriber Module (6-Pack).

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4500 series of subscriber modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint and point-to-point deployments.

Force 4500 SM series have the following differentiating features:

• High capacity and latencies less than 5 ms when using ePTP technology
• Interoperability with the ePMP 4500 which uses MU-MIMO to achieve up to 4 Gbps per sector by transmitting to four ePMP 4500 SM’s simultaneously.
• 1024QAM and an integrated 25 dBi dish antenna
• Multiple levels of QoS (Quality of Service) for voice, video and data applications supporting a wide variety of service packages for both residential and enterprise users
• Security features meeting the requirements of enterprise, industrial, government and service provider users
• Management by Cambium Networks cnMaestro™ element management system for easy provisioning, monitoring and upgrades
• Network planning with LINKPlanner and cnHeat
• 3-year hardware warranty and support from Cambium Networks
• Each SM comes with a Power over Ethernet injector and pole mount hardware included
Features
  • High-performance subscriber modules for point-to-point and point-to-multipoint fixed wireless broadband applications
  • Gbps capacity leveraging 80 MHz channels
  • Compatible with ePMP 4500 Series Access Points for MU-MIMO performance

Specifications

Details
Product Code C050940M851A
Channel Width 20 / 40 / 80 MHz
Proprietary Physical Layer 2x2 MIMO/OFDMA
Channel Spacing Configurable in 5 MHz increments
Frequency Range Wide Band Operation 5150–5920 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
MAC Layer (Media Access Control) Cambium Proprietary
Ethernet Interface 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™ VLAN 802.1Q with 802.1p priority
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -56 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain)
Modulation Levels (Adaptive) MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
Transmit Power Range +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
QoS (Quality of Service) Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* support
Surge Supression 1 Joule Integrated
Environmental IP55
Temperature -30°C to 55°C (-22°F to 131°F)
Weight 1.88Kg (4.14lbs)
Wind Survival 200 km/hour (124 mi/hour)
Dimensions (Dia x Depth) 472 x 472 x 281 mm (18.5 x 18.5 x 11.0 in)
Pole Diameter Range Center: 3.1 to 7.6 cm (1.25 to 3.0 inches)
Power Consumption 13W
Input Voltage Passive PoE 13–30V
Encryption 128-bit AES (CCMP mode), 256-bit AES optional where allowed
