Cambium Networks RV22 - Cambium RV22 Dual Band Gigabit Wi-Fi 6 Home Mesh Router
Features
The RV22 Wi-Fi 6 Home Mesh Router has a highly efficient antenna to provide better whole-home coverage and higher throughputs at range. It provides faster mesh connections and better connectivity to small IoT devices that are working their way into homes. Great Wi-Fi signal strength and low noise create a high signal-to-noise ratio (SNR) for each subscriber client device. With great signal performance, homeowners can easily support multiple HD video streams AND web browsing AND security cameras on the same system.
- 802.11a/b/g/n/ac, ax
- 5 GHz (3×3:2), 2.4 GHz (2×2:2)

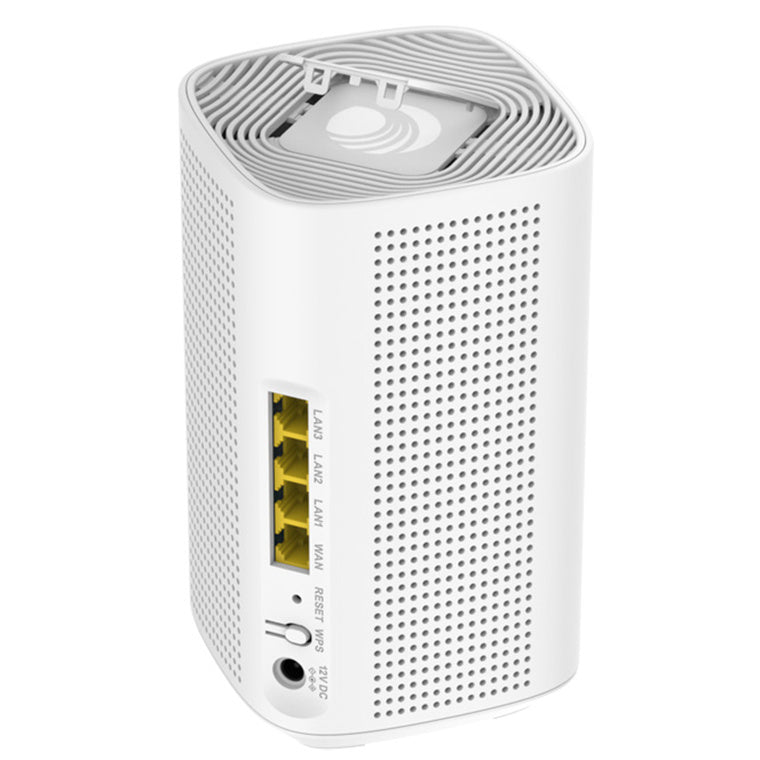

- 4 x GbE RJ45 interface
- 12VDC, 2.5mm CP, P/S
- Free management via cnMaestro Essentials or cnMaestro X
- Configuration and management by Cambium cnMaestro Response Center and Subscriber App
Gigabit Mesh, Stream Anywhere

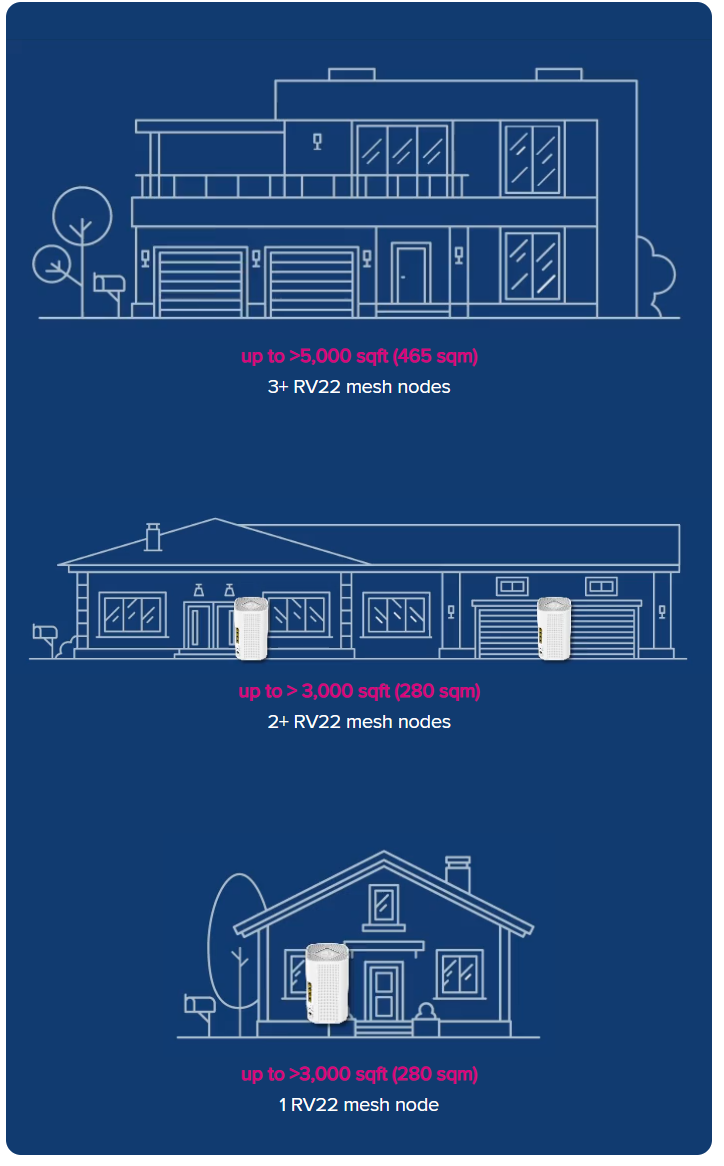

Eliminate poor coverage for small homes, long homes, tall homes - offer whole-home Wi-Fi in any home.?
?A single access point easily covers up to a 3,000-square-foot home.
A great subscriber experience leads to lower support calls and new revenue opportunities. Empower your technicians and customers with self-service Wi-Fi tools that deliver the experience your customers desire.
How the Home Mesh Wi-Fi Router System Changes Residential Broadband Business
- Reduce customer trouble calls
- Reduce field dispatches
- Reduce time per field dispatch
Create Family Time at the touch of a button

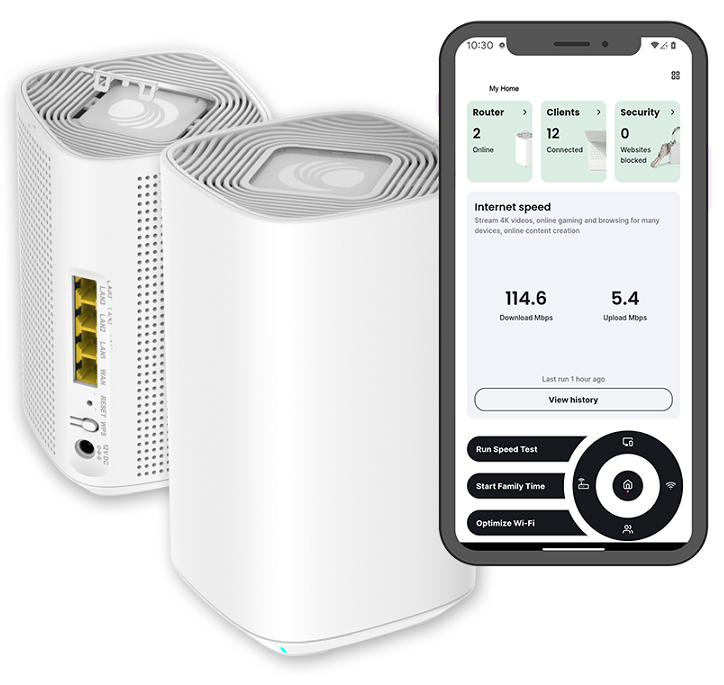

Subscriber Application Experience
- Self-service with intuitive cnMaestro Subscriber Application
- Set access and content rules, create family time and optimize the in-home Wi-Fi

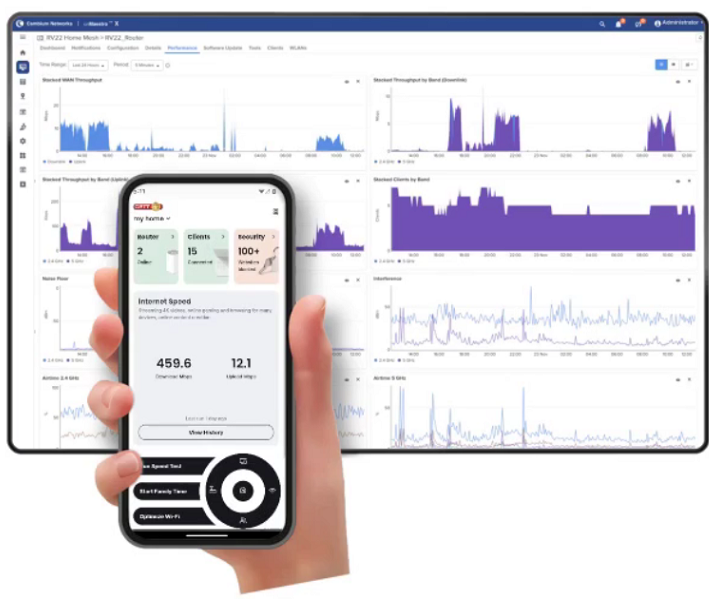

Service Provider Dashboard Experience
- Provision access via the cloud
- Operation insights to optimize performance
- Simplify service provisioning and reduce mean time to repair using cnMaestro cloud workflows, remote diagnostics, remote provisioning and operational insights.
Specifications
Technical Specifications
| Brand | Cambium Networks |
|---|---|
| Model | RV22 |
| Support Channels (ROW) | Ch 1-14, 36-64, 100-144, 149-173, Individual country limits may apply |
| Radios | 5 GHz: 802.11a/n/ac/ax, 3x3:2, 2.4 GHz: 802.11 b/g/n/ax, 2x2:2 |
| MAX PHY Rate | 5 GHz radio: 2.4 Gbps, 2.4 GHz radio: 600 Mbps |
| Ports | 4 x IEEE 10/100/1000 Mbps Ethernet |
| Antenna Type | Internal, vertically polarized |
| Antenna Gain | 5 GHz: up to 5 dBi, 2.4 GHz: up to 5 dBi |
| Conducted Tx Power | 5 GHz 3x3:2 radio: 25.7 dBm, 2.4 GHz 2x2:2 radio: 24 dBm |
| Power | 12VDC, 1.2A DC power jack 2.5mm x 5.5mm CP |
| WLAN | 64 clients, 2 SSIDs |
| Security | Open, WPA2 PSK, 802.11w PMF |
| Mesh | Automatic discovery and setup. Continuous mesh quality monitor with LED indicator |
| Mesh Modes | Mesh star, mesh linear, or wired mesh. Not compatible with Cambium enterprise Wi-Fi APs |
| RF Management | Auto-RF with auto-channel selection and frequency coordination with FWA subscriber module. RF monitor with chn utilization/noise/RF interference/errors |
| Network | NAT logging firewall/router, DHCP/DNS server |
| Band Steering | Yes |
| Subscriber QoS | WMM |
| Fast Roaming | 802.11r |
| Router-to-Internet Speed Test | Automatically runs after the subscriber tests App-to-internet speed. Scheduled tests configured in the Subscriber workflow. |
| CAF2-Compliant Speed Test | Subscriber random selection, tests and report for CAF2-compliant network tests (not available at first release). |
| Subscriber App Tools | Web content filter, Family time, Speed test, Optimize Wi-Fi, Guest Wi-Fi, Manage multiple sites, Invite family members to manage, Dashboard view of network, devices, security events |
| DNS Filter | Auto, manual, and proxy (default mode). DOH will be blocked; DNS over UDP will be used |
| Standards | 802.11ax, up to 3x3:2. 20/40/80/160 MHz, 802.11a/b/g/n/ac wave 2, MU-OFDMA, MU-MIMO, TWT, MIMO, VHT MCS rates, 16/64/256/1024/4096-QAM, Transmit Beam steering, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM. IEEE 802.11d/e/h/i/k/r/u/v/w |
| Licensing | No subscription required, free management in cnMaestro Essentials or cnMaestro X |
| Certifications | FCC, CE, AU, NZ, UK |
| Dimensions | 100mm x 100mm x 175mm, 400g |
| Environmental | 0°C - +40°C ambient op temp, 0°C - +70°C storage temperature, 10% to 90% RH non-condensing |
| Brand | Cambium Networks |
|---|---|
| Product Type | Networking > Routers |
| Weight | 2.0 kg |
| Warranty |
|---|
