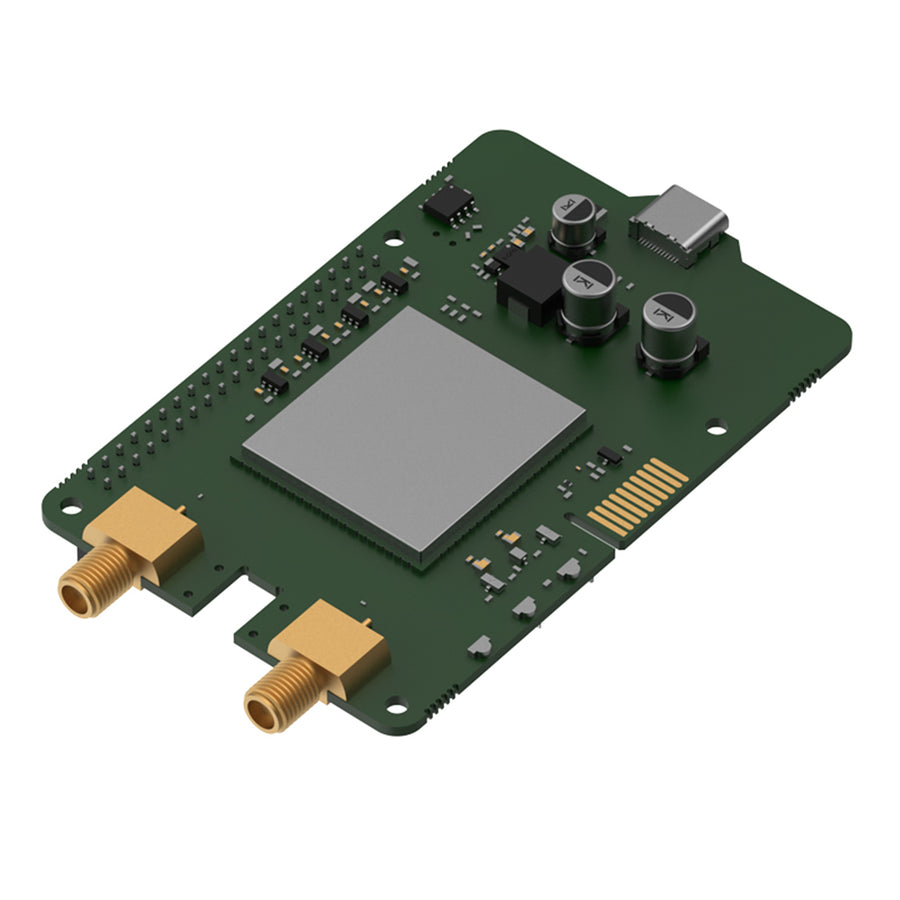

Teltonika EBD021 PI-Compatible Calyx 4G Modem. CALYX embedded Raspberry Pi HAT+ modems are purpose-built to provide seamless mobile internet to your embedded systems. Available in three variants models – 4G Cat 4, 5G Redcap, and full-fledged 5G – CALYX provides cellular connection to your Raspberry Pi 4 or 5 wherever Wi-Fi or Ethernet are unavailable or unreliable.

CALYX mounts directly on top of your SBC computer, saving space and ensuring clean integration. Equipped with features like GPIO modem control and PCM audio support, CALYX offers compact and feature-rich cellular expansion for integrators and developers.

Details
Product code	EBD021000000
Mobile module	4G LTE-FDD (Cat 4) – 75Mbps DL, 50Mbps UL; LTE-TDD (Cat 4) – 65Mbps DL, 35Mbps UL; DC-HSPA+ – 42Mbps DL, 5.76Mbps UL; 3G – 384 kbps DL, 384 kbps UL, 2G – 236.8 kbps DL, 236.8 kbps UL, 2G GPRS – 85.6 kbps DL, 85.6 kbps UL
3GPP Release	Release 9
Bands	4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28; 4G (LTE-TDD): B38, B40, B41
USB Data Rate	USB 2.0
40-pin GPIO header PWR_KEY	Modem turn on/off. Digital Input, 0 - 3.3 V logic level, active High, to activate use pulse (≥500 ms)
Modem wakeup	Wake up modem from a sleep mode, Digital Input, 0 - 3.3 V logic level, active High
Modem reset	Resets the modem. Digital Input, 0 - 3.3 V logic level, active High
Power USB type C	5 VDC
40-pin GPIO header	On a 40-pin header, 5 VDC and 3.3 VDC
Status LEDs	1 x Power, NET IND, NET STAT
SIM	1 x SIM slot (Nano SIM - 4FF), push-pull
Power	On a 40-pin header/USB power
USB	USB Type-C receptacle
Antenna Connectors	2 x SMA for Mobile
Weight	57 g
Mounting options	WIth included mounting kit
Dimensions (W x H x D)	56 x 23.11 x 95.48 mm
Operating temperature	-40 °C to 75 °C
Regulatory	CE, UKCA, EAC, UCRF, RCM, CB, WEEE
