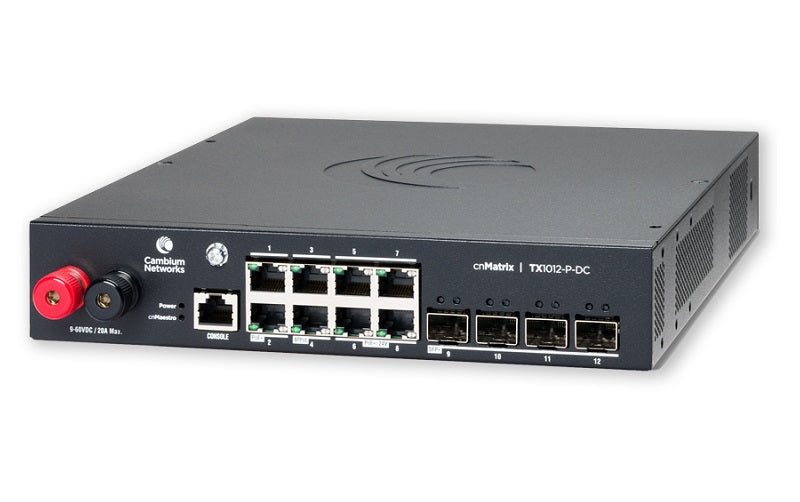

Cambium Networks TX1012-P-DC - Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch,  8 x 1Gbps, and 4 SFP+
Cambium Networks

Cambium Networks TX1012-P-DC - Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch,  8 x 1Gbps, and 4 SFP+

SKU: TX1012-P-DC ● In Stock
$1,561.00
Free shipping over $299 Genuine product 7-day returns

TX1012-P-DC

Cambium Networks TX1012-P-DC - Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch,  8 x 1Gbps, and 4 SFP+

Description

The Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch, with 8x 1Gbps, and 4 SFP+ ports.

cnMatrix TX, Tower Switch provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

Comprehensive/Intelligent PoE solution
 • 802.3af/at/bt - up to 90W
• 24V Passive PoE - up to 15W
• 54V Passive PoE - up to 90W
Features
  • Easy and simple, free cloud (or on premise) management with cnMaestro™
  • Full Line Rate, non-blocking architecture
  • Comprehensive/Intelligent PoE Solution
  • Zero Touch Simplicity with automated configuration
  • Automated security with device profiling and policy enforcement
  • 9-65V DC Input via Terminals

Specifications

Details
Manufacturers Code MXTX1012GxPA20
Throughput 96 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
10/100/1000 Mbps RJ45 Ports 8
10 Gbps Fiber Ports (SFP+) 4
Serial Console Yes
Internal Fans 1
Flash Storage 128 MB
DRAM 512 MB
Internal Power Supply 200W
Max Switch Power (WITH TRAFFIC) 200W
MTBF @25°C (hours) 749,495
MTBF @60°C (hours) 207,122
Unit Weight 2.1 kg
Unit Dimensions (H x L x W) 4.4 x 28 x 23 cm
802.3af/at/bt PoE (54V) Ports 1–8
24V Passive PoE - up to 15W Ports 5–8
54V Passive PoE - up to 90W Ports 3-4
54V Passive PoE - up to 30W Ports 1-2, 5-8
PoE Max Power Per Port Ports 1-2, 5-8: 30W, Ports 3-4 90W
Total PoE Power Budget 170W @ 30-65Vin, 120W @ 9–29Vin
Rack Mount Kit Not Included (optional accessory)
Wall Mountable Not Included (optional Accessory)
Temperature Ranges -30°C up to 60°C / Sea Level
Operating Humidity 20% at 90% RH
Storage Temperature -40°C to 70°C
