CERWIN VEGA 10" VMAXX SERIES DUAL 2 OHM SUBWOOFER 800W RMS (4 OHM OR 1 OHM LOAD)

CERWIN VEGA

CERWIN VEGA 10" VMAXX SERIES DUAL 2 OHM SUBWOOFER 800W RMS (4 OHM OR 1 OHM LOAD)

Name: CERWIN VEGA 10" VMAXX SERIES DUAL 2 OHM SUBWOOFER 800W RMS (4 OHM OR 1 OHM LOAD)
Brand: CERWIN VEGA
SKU: VMAX10D2
Price: 347.9 NZD
Availability: InStock

SKU: VMAX10D2 ● In Stock

$302.52

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Heavy Industrial Strength Aluminum Cast Frame. Black Design Patterned Treated Semi-Pressed Pulped Cone. Elevated Motor Structure Cooling Design. Oversized Spider. Black Coated Voice Coil for Higher Thermal Capability. Oversized Polished Black Chrome Finished Terminals. Polished Bumped Backplate. Klippel DA Optimized Motor and Suspension Symmetry.

- 10" Dual 2-ohm High-Performance Subwoofer
- 800W RMS / 1600W MAX
- Mounting Diameter: 9.13"
- Mounting Depth: 6.18"
- Voice Coil: 2.5"
-Shorting Ring for lower Distortion

Specifications

Technical Specifications

Subwoofer Size	10"
Nominal Impedance (ohms)	2 ohms
RMS Power Rating	800W
Max Power Rating	1600W
SPL (db)	83.3
Re (ohm) [series]	1 ohm/4 ohm
Qms	6.73
Qes	0.61
Qts	0.56
Fs-Free Air Resonance (Hz) 3	2.6
Vas (Liter)	24.6
Sd (cm²)	0.036
BL (T*M)	14.7
Xmax - Inch(mm)	15
Cms (mm/N)	0.13
Mms (g)	178.5
Pwr (W) NOM/MAX	800/1600

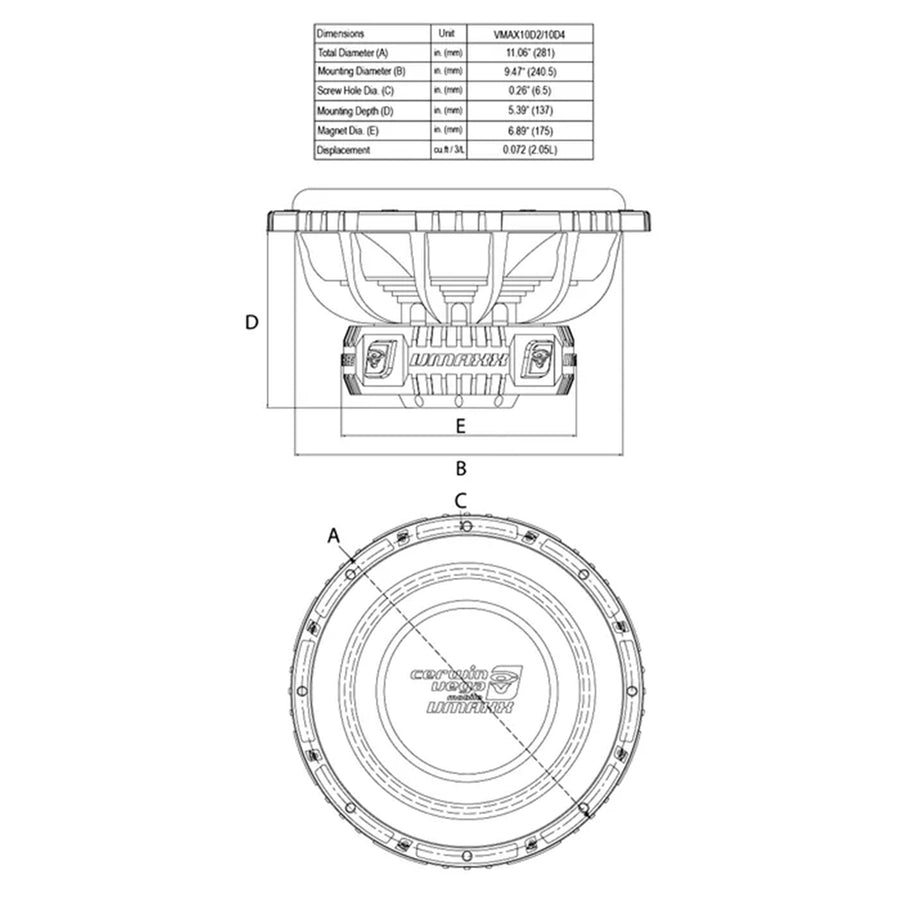

Total Diameter	11.06" (281mm)
Mounting Diameter (inch/mm)	9.47" (240.5mm)
Screw Hole Diameter	0.26" (6.5mm)
Mounting Depth	5.39" (137mm)
Magnet Diameter (E)	6.89" (175mm)
Displacement (ft3/L)	0.072 ft3 (2.05L)
Grille	NO
