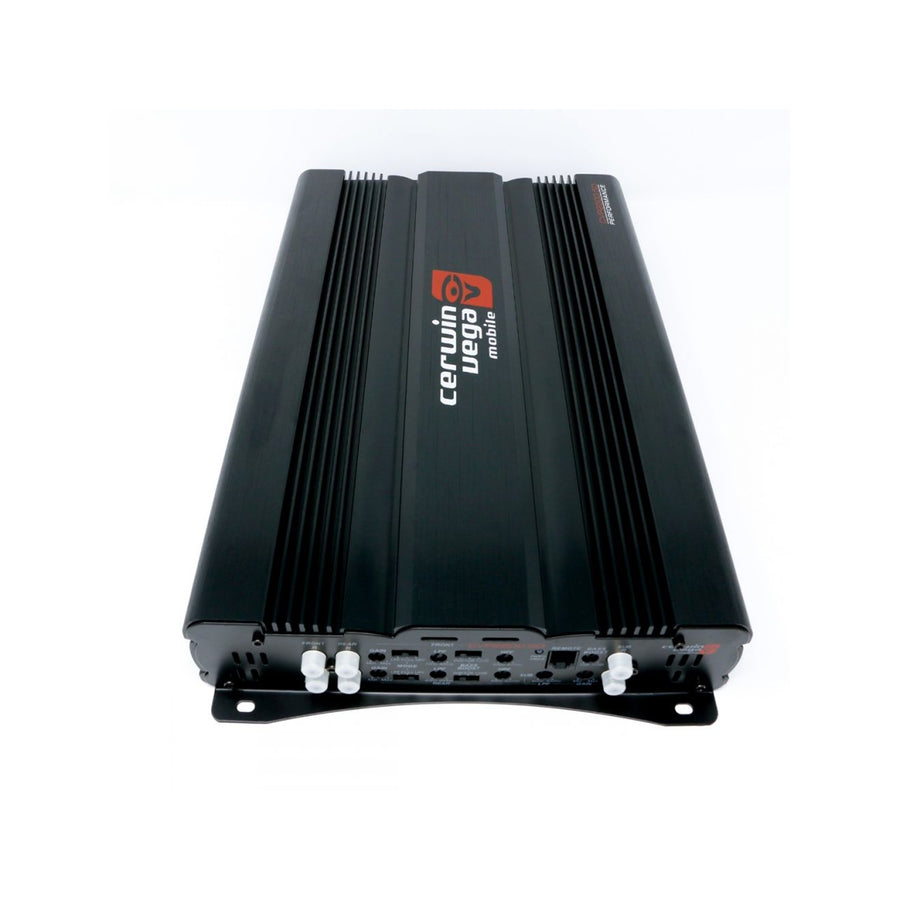

CERWIN VEGA AMPLIFIER CVP SERIES 5 CH 100W RMS X4 + 350W RMS @ 4OHM / 150W RMS X4 + 500W RMS @ 2OHM

Name: CERWIN VEGA AMPLIFIER CVP SERIES 5 CH 100W RMS X4 + 350W RMS @ 4OHM / 150W RMS X4 + 500W RMS @ 2OHM
Brand: CERWIN VEGA
SKU: CVP2500.5D
Price: 361.62 NZD
Availability: InStock

SKU: CVP2500.5D ● In Stock

$314.45

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Latest High-Efficiency Class A/B Topology
Compact Size with Ambient backlit logo
RCA "Pass Thru" output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 CH mode
Proprietary Vega Bass Boost EQ Up To 12dB

Specifications

Technical Specifications

Model	CVP2500.5D
RMS Power(2O)	85Wx4 + 300Wx1
RMS Power (4O)	65Wx4 + 185Wx1
RMS Bridge (mono 4O)	180Wx2 +NA
Technology	AB class
Power Supply	PWM
Power Supply (Threshold)	10-16VDC
Idle Current	1.0A
Distortion - THD (1KHz@4O)	?1%
Distortion - S/N Ratio (A weight @ 1W)	>90dB
Distortion - S/N Ratio (A weight @ FP)	>105dB
Input Sensitivity - Hi/Low Input Level	200mV-6V
Input Impedance - Low Input Level	20KO
Output Impedance	2/4O
Damping Factor (50Hz@4O)	100
Bandwidth (-3dB)	10Hz-32KHz /10Hz-400Hz
Crossover (-12 dB/ Oct) Variable High-Pass	40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Low-Pass	40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic	n/a
FUSE Ratings - ATC	40Ax2
Dimension - Length x Width x Height - Inches(mm)	14.97x9.38x2.25 (380x238x57)
