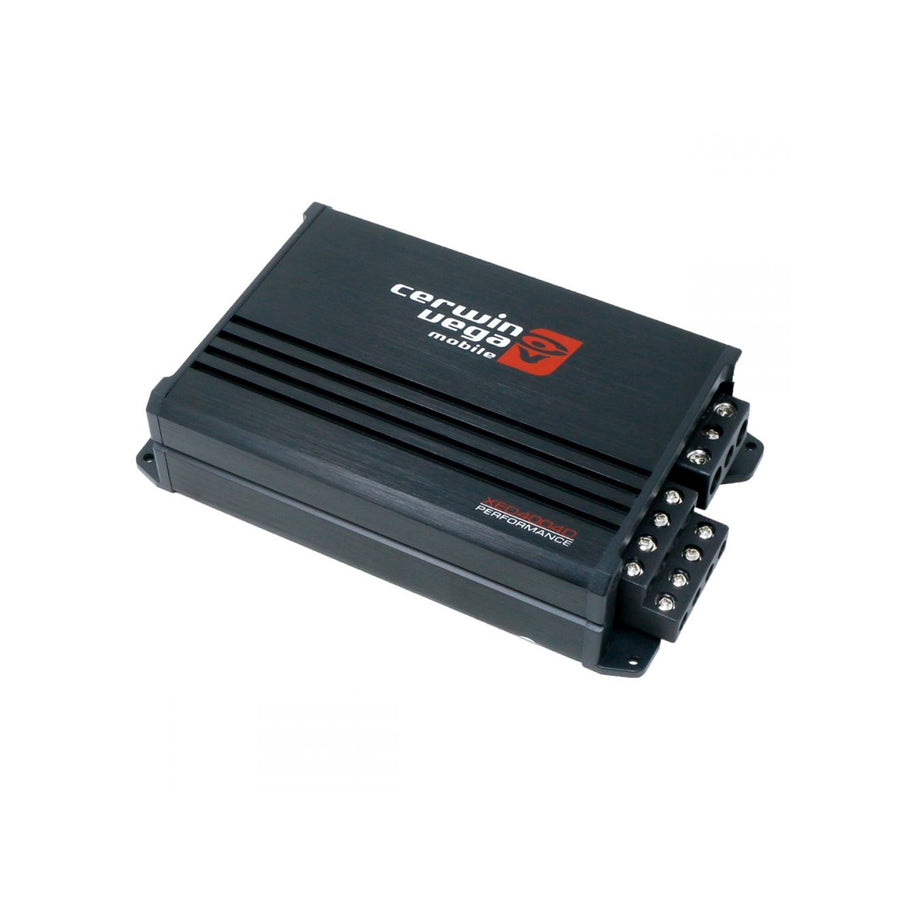

CERWIN VEGA AMPLIFIER XED SERIES 4 CH 60W RMS X 4 @ 4OHM / 90W RMS X 4 @ 2OHM

Name: CERWIN VEGA AMPLIFIER XED SERIES 4 CH 60W RMS X 4 @ 4OHM / 90W RMS X 4 @ 2OHM
Brand: CERWIN VEGA
SKU: XED4004D
Price: 303.6 NZD
Availability: InStock

SKU: XED4004D ● In Stock

$264.00

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

- Latest High-Efficiency Class D Topology
- Compact Size with Ambient backlit logo
- RCA "Pass Thru" output for easy system expansion
- Fully Variable Crossovers (12dB per octave)
- Handles HI and LO level input to 12V
- 2 O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode
- Proprietary Vega Bass Boost EQ Up To 12dB

Specifications

Technical Specifications

MAX Power Rating	400 W MAX
RMS Power(2O)	4 x 90W
RMS Power (4O)	4 x 60W
Types	Class D
Power Supply	Full PWM
Power Supply (Threshold)	10.0DVC - 16.0DVC
Idle Current	(0.7A)
Distortion - THD (1KHz @ 4O)	<0.1%
Distortion - S/N Ratio (A weight @ 1W)	-85dBA
Distortion - S/N Ratio (A weight @ FP)	-101.1dBA
Input Sensitivity - Hi/Low Input Level	1.3V ~>20.0V / 250mV - 6.0V
Input Impedance - High Input Level	100 KO
Input Impedance - Low Input Level	10 KO
Output Impedance	2 O
Damping Factor (50Hz @ 4O)	>70
Bandwidth (-3dB)	10Hz-30KHz
Crossover (-12 dB/ Oct) Variable High-Pass	35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Low-Pass	35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic	N/A
FUSE Ratings- ATC	30A
Dimension - Length x Width x Height	Inches(mm) 6.3 x 4.7 x 1.8 (160 x 120 x 46.5)
