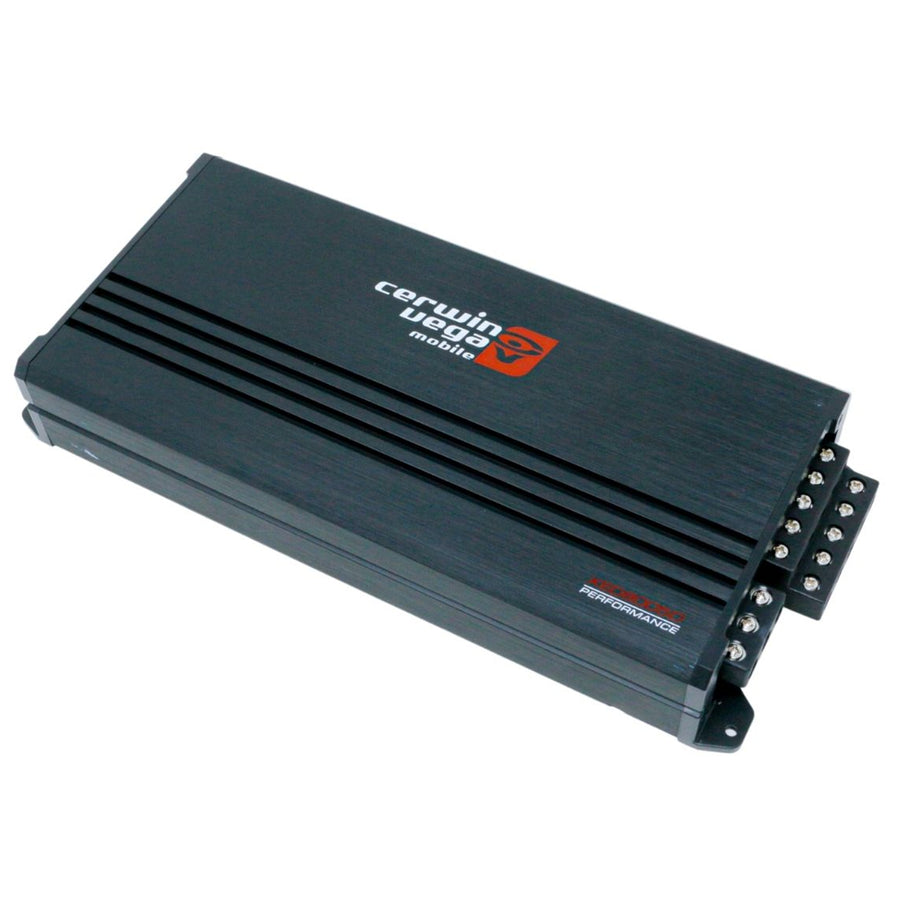

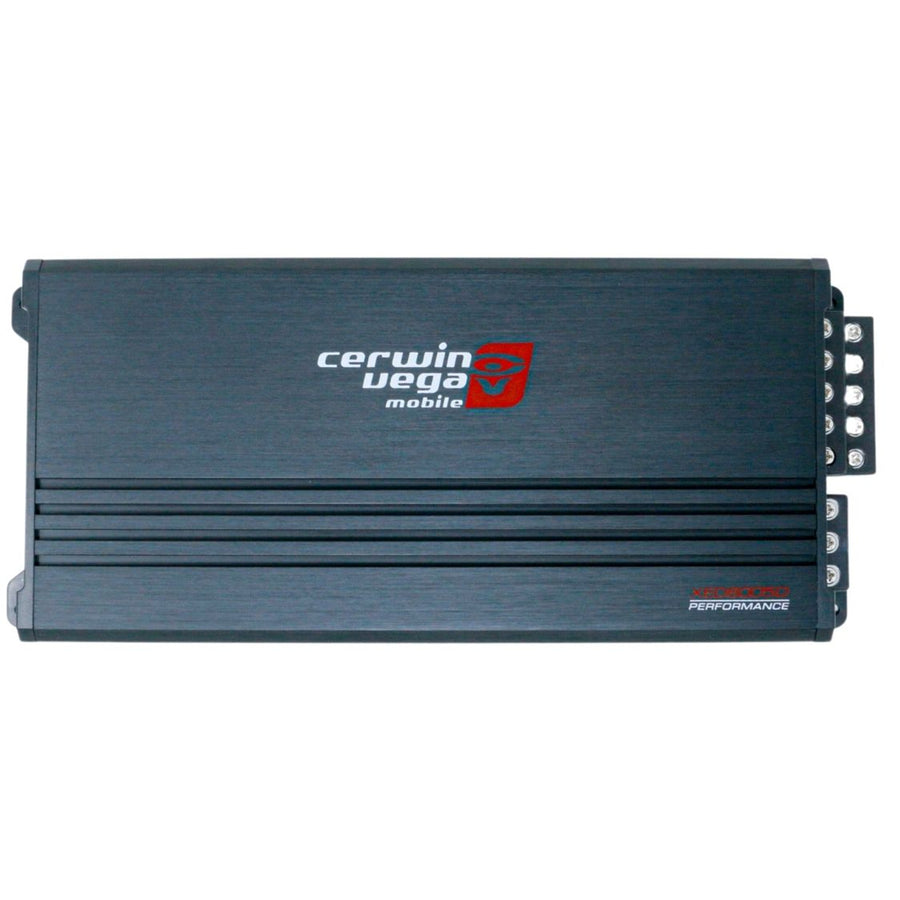

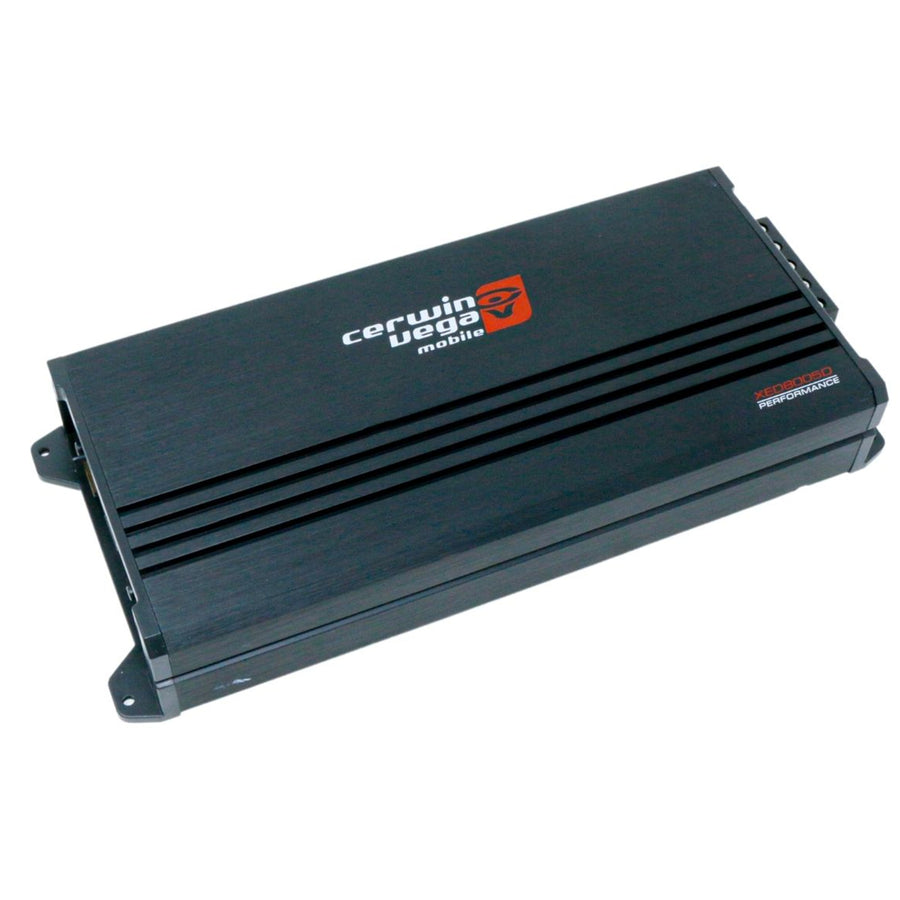

CERWIN VEGA AMPLIFIER XED SERIES 5 CH 65W RMS X 4 + 200W RMS @ 4OHM

CERWIN VEGA

CERWIN VEGA AMPLIFIER XED SERIES 5 CH 65W RMS X 4 + 200W RMS @ 4OHM

Name: CERWIN VEGA AMPLIFIER XED SERIES 5 CH 65W RMS X 4 + 200W RMS @ 4OHM
Brand: CERWIN VEGA
SKU: XED8005D
Price: 494.9 NZD
Availability: InStock

SKU: XED8005D ● In Stock

$430.35

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

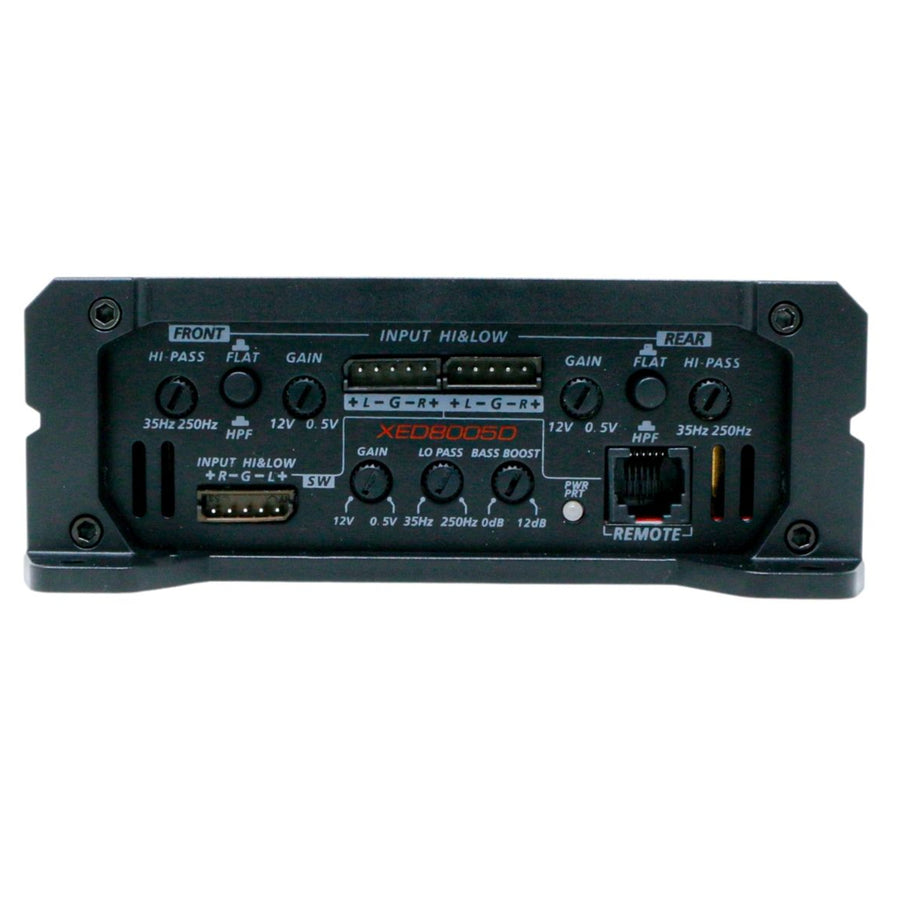

Features

Latest High-Efficiency Class D Topology. Compact Size with Ambient backlit logo. RCA "Pass Thru" output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 ohm Stable Stereo and 4 ohm Mono (CH3/4) for 3 Ch mode. Proprietary Vega Bass Boost EQ Up To 12dB.

Specifications

Technical Specifications

Amplifier	5 Channel
Amplifier Power	1000W MAX
RMS Power(2 ohm)	4 x 90W + 1 x 300W
RMS Power (4 ohm)	4 x 65W + 1 x 200W
Types	5-Channel
Topology	Class D
Frequency Response	10Hz~30KHz+10Hz~250Hz
Power Supply	Full PWM
Power Supply (Threshold)	10.0VDC - 16.0VDC
Idle Current	(0.7A)
Distortion - THD (1KHz @ 4 ohm)	<0.1%
Distortion - S/N Ratio (A weight @ 1W)	-85dBA
Distortion - S/N Ratio (A weight @ FP)	-101.1dBA
Input Sensitivity Low	500mV - 12V
Input Sensitivity High	N/A
Input Impedance - Low Input Level	20 Kohm
Input Impedance - High Input Level	100 ohm
Output Impedance	2 ohm/4ohm
Damping Factor (50Hz @ 4 ohm)	>70
Bandwidth (-3dB)	10Hz-30KHz+10Hz-250Hz
Crossover (-12 dB/ Oct) Variable High-Pass	35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Low-Pass	35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic	N/A
FUSE Ratings - ATC	2 x 25A

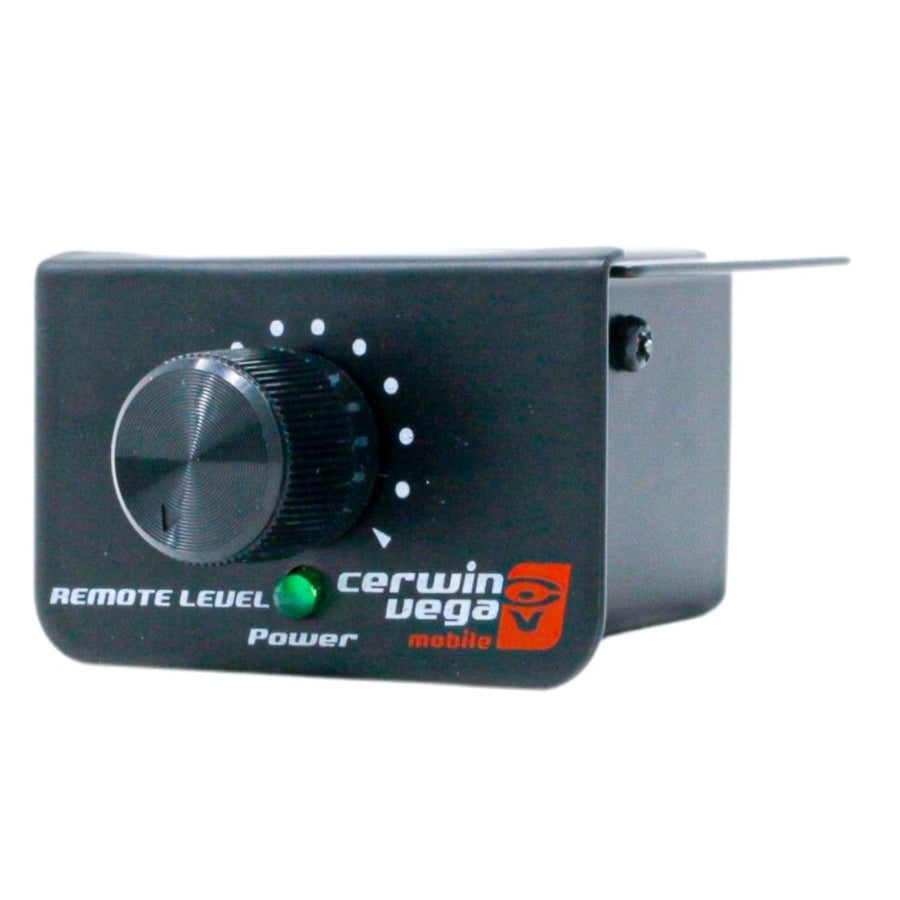

Remote	Bass Volume Control
Dimension - Length x Width x Height	10.3" x 4.7" x 1.8" ( 260 x 120 x 46.5mm)
