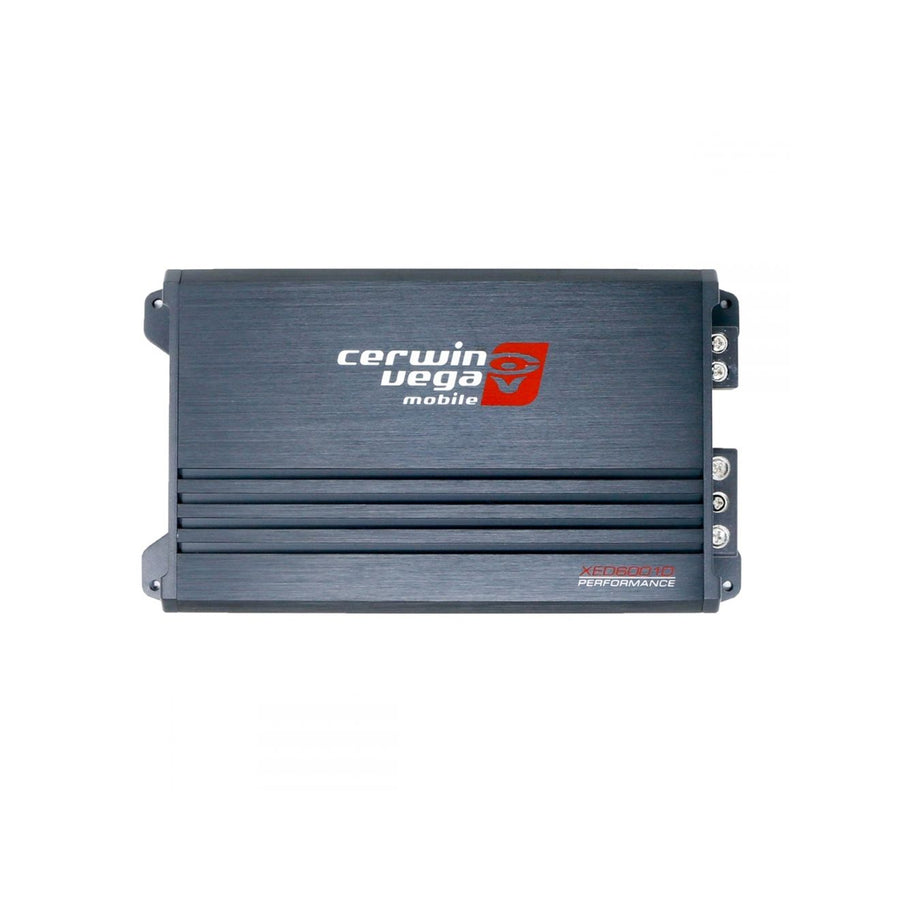

CERWIN VEGA AMPLIFIER XED SERIES MONO 320W RMS @ 4OHM / 600W RMS @ 2OHM

Name: CERWIN VEGA AMPLIFIER XED SERIES MONO 320W RMS @ 4OHM / 600W RMS @ 2OHM
Brand: CERWIN VEGA
SKU: XED6001D
Price: 303.6 NZD
Availability: InStock

SKU: XED6001D ● In Stock

$264.00

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Latest High-Efficiency Class D Topology
Compact Size with Ambient backlit logo
RCA "Pass Thru" output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode
Proprietary Vega Bass Boost EQ Up To 12dB

Specifications

Technical Specifications

MAX Power Rating	600W MAX
RMS Power(2O)	1 x 600 W
RMS Power (4O)	1 x 320 W
Types	Class D
Power Supply	Full PWM
Power Supply (Threshold)	10.0DVC - 16.0DVC
Idle Current	(0.7A)
Distortion - THD (1KHz @ 4O)	<0.1%
Distortion - S/N Ratio (A weight @ 1W)	-85dBA
Distortion - S/N Ratio (A weight @ FP)	-101.1dBA
Input Sensitivity - Hi/Low Input Level	1.1V ~>20.0V / 250mV - 6.0V
Input Impedance - High Input Level	100 KO
Input Impedance - Low Input Level	20 KO
Output Impedance	2 O
Damping Factor (50Hz @ 4O)	>70
Bandwidth (-3dB)	10Hz-250Hz
Crossover (-12 dB/ Oct) Variable High-Pass	N/A
Crossover (-12 dB/ Oct) Variable Low-Pass	35Hz-250Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic	10Hz-50Hz
FUSE Ratings - ATC	2 x 30A
Dimension - Length x Width x Height - Inches(mm)	7.1 x 4.7 x 1.8 (180 x 120 x 46.5)
