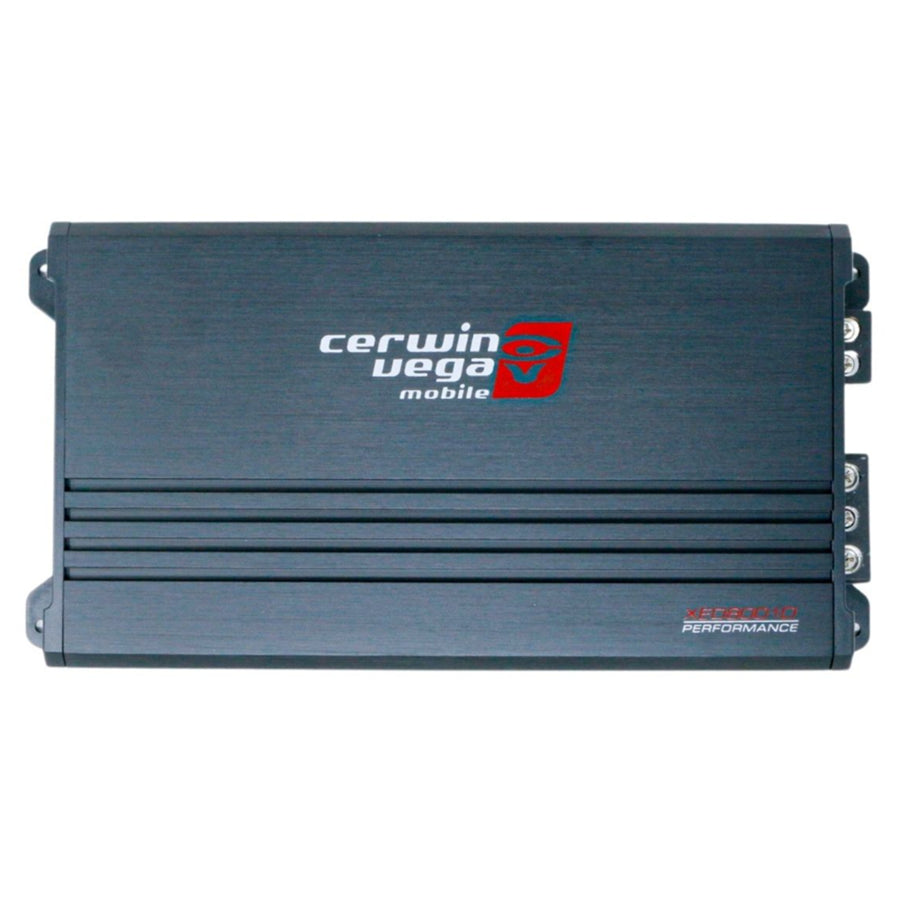

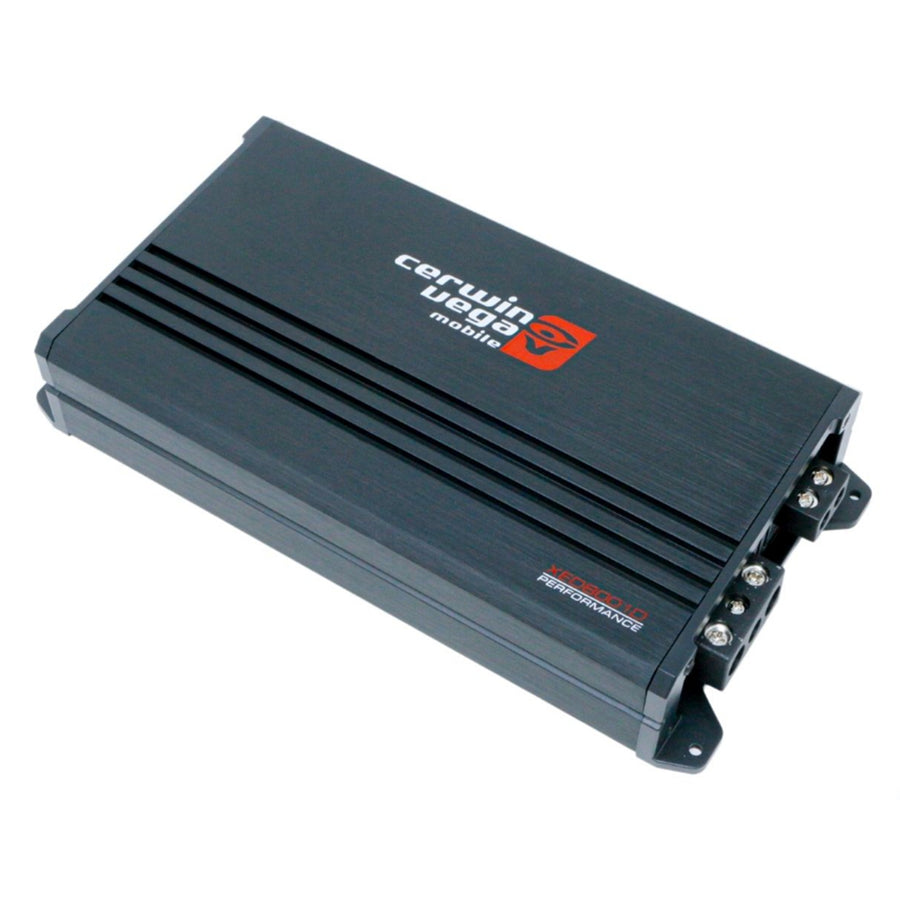

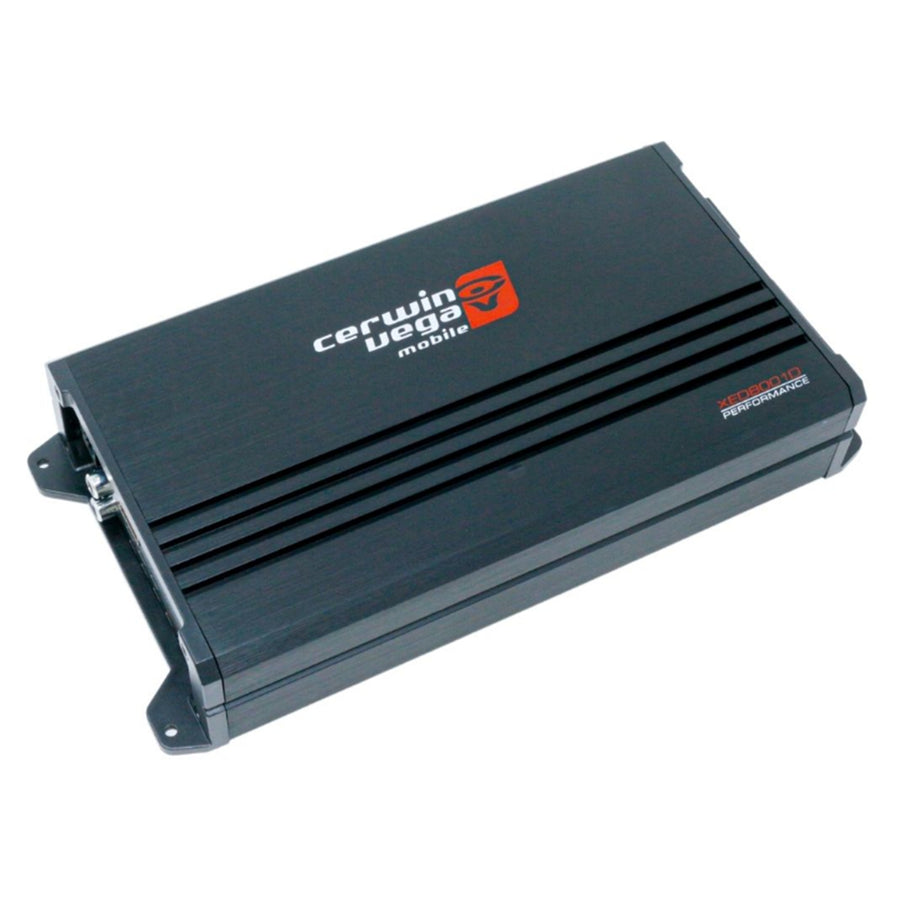

CERWIN VEGA AMPLIFIER XED SERIES MONO 450W RMS @ 4OHM / 800W RMS @ 2OHM
Features
XED (Xtreme Energy Design) series amplifiers are legitimately just that, extreme to the core! XED series amplifiers deliver insane power output and is clearly designed and engineered to crush the watts per dollar criteria! Utilizing the latest high efficiency Class D topology circuit design encompassed in a compact aluminum chassis, XED series amplifiers will wake up any speaker or subwoofer by delivering pure power and performance for loud continuous play.
- 1100W MAX Power
- 1 Channel Amplifier
- 800W x 1 @ 2O RMS
- 450W X 1 @ 4O RMS
- Crossover: 35Hz~250Hz (LP)
- Frequency Response: 10Hz~30KHz
- Dimensions: 8.7"x 4.7" x 1.8" ( 220.98mm x 119.38mm x 45.72mm)
- Latest High-Efficiency Class D Topology
- Compact Size with Ambient backlit logo
- RCA "Pass Thru" output for easy system expansion
- Fully Variable Crossovers (12dB per octave)
- Handles HI and LO level input to 12V
- 2 O Stable
- Proprietary Vega Bass Boost EQ Up To 12dB
- Dimensions: 8.7"x 4.7" x 1.8" ( 220.98mm x 119.38mm x 45.72mm)
Specifications
Technical Specifications
| Amplifier | 1 Channel |
|---|---|
| RMS Power Rating | 450w @ 4O/800w @ 2O |
| Amplifier Power | 1100W MAX |
| RMS Power(2O) | 800w |
| RMS Power (4O) | 450w |
| Types | Monoblock, Class D |
| Topology | Class D |
| Frequency Response | 10Hz~30KHz |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0DVC - 16.0DVC |
| Idle Current | (0.7A) |
| Distortion - THD (1KHz@4O) | <0.1% |
| Distortion - S/N Ratio (A weight @ 1W) | -85dBA |
| Distortion - S/N Ratio (A weight @ FP) | -101.1dBA |
| Input Sensitivity Low | 250mV - 6.0V |
| Input Sensitivity High | 1.1V ~>20.0V |
| Input Impedance - Low Input Level | 20 KO |
| Input Impedance - High Input Level | 100 O |
| Output Impedance | 2O |
| Damping Factor (50Hz@4O) | >70 |
| Bandwidth (-3dB) | 10Hz-250Hz |
| Crossover (-12 dB/ Oct) Variable High-Pass | N/A |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 35Hz-250Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | 10Hz-50Hz |
| FUSE Ratings - ATC | 2 x 35A INTERNAL |

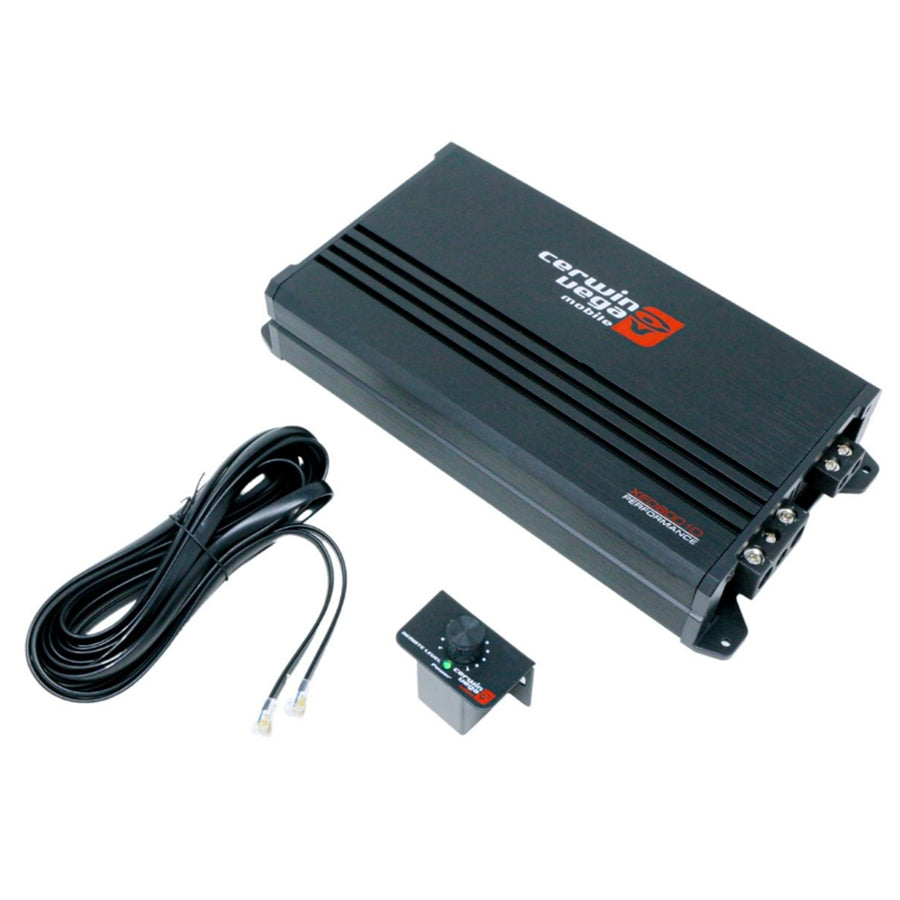

| Remote | Bass Level Control |
| Dimension - Length x Width x Height - Inches(mm) | 8.7"x 4.7" x 1.8" ( 220 x 120 x 46.5mm ) |
| Brand | CERWIN VEGA |
|---|---|
| Product Type | More > Car Electronics |
| Weight | 0.5 kg |
