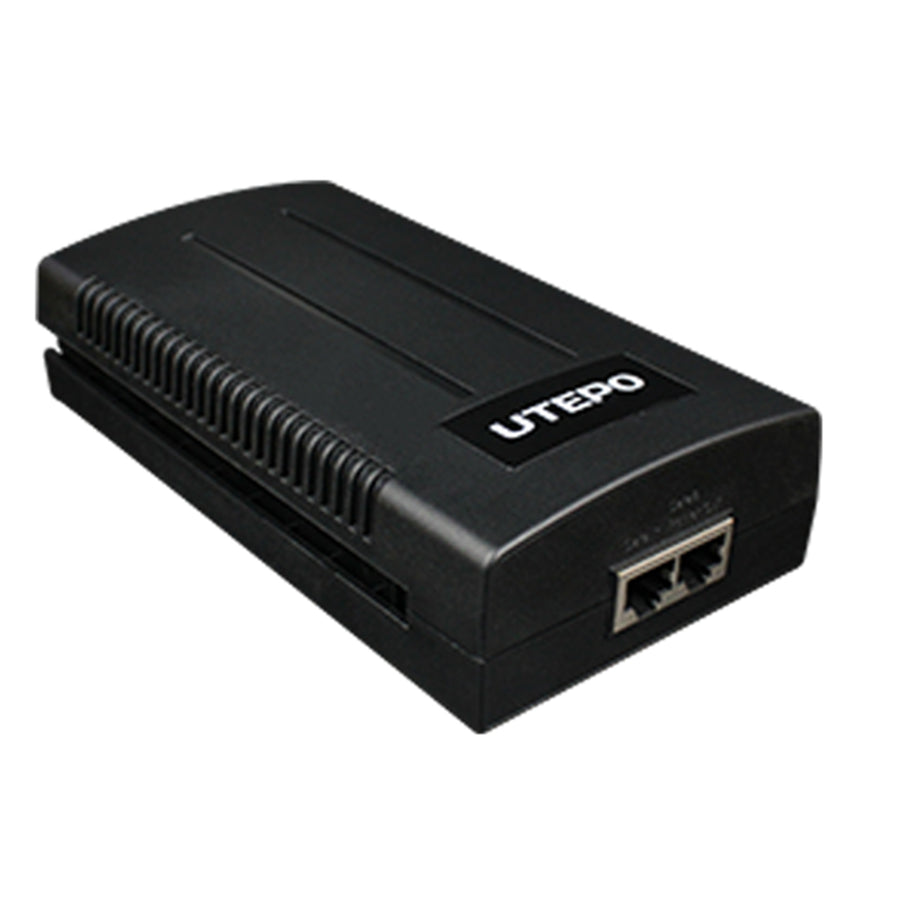

CONNECT UTP7201GEPSE95 - PoE injector 95W
CONNECT UTP7201GEPSE95 - PoE injector 95W
Features
This is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC power input port. It is compatible with mid-span and end-span PoE power method, the output power consumption can be up to 95W; It features:10/100/1000Mbps network port,100m transmission distance, 4KV lightning protection. it's an excellent choice for power supply and network transmission on PTZ speed dome, 11ac wireless AP, digital display system.
- PoE+ + power supply standard; Output power consumption can be up to 95W;
- IEEE 802.3af/at/bt, IEEE 802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T;
- Working Temperature: -10℃～40℃;
- 4KV lightning protection; 8KV ESD protection;
- No fan, no noise, dust-proof;

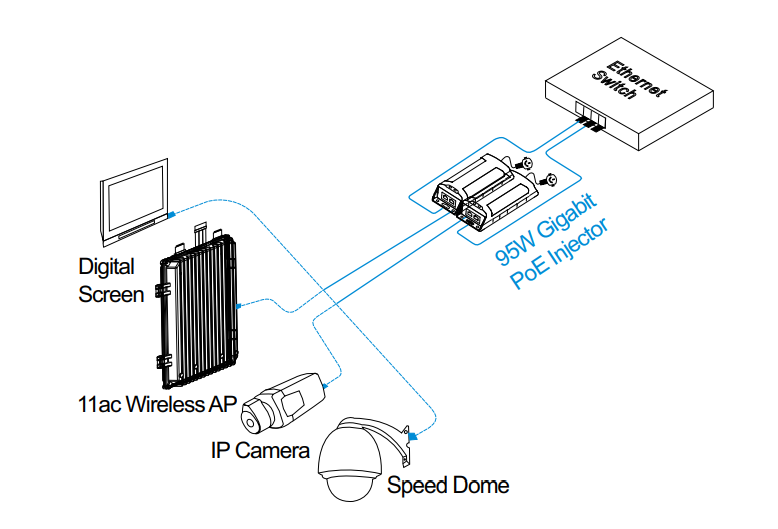

Application

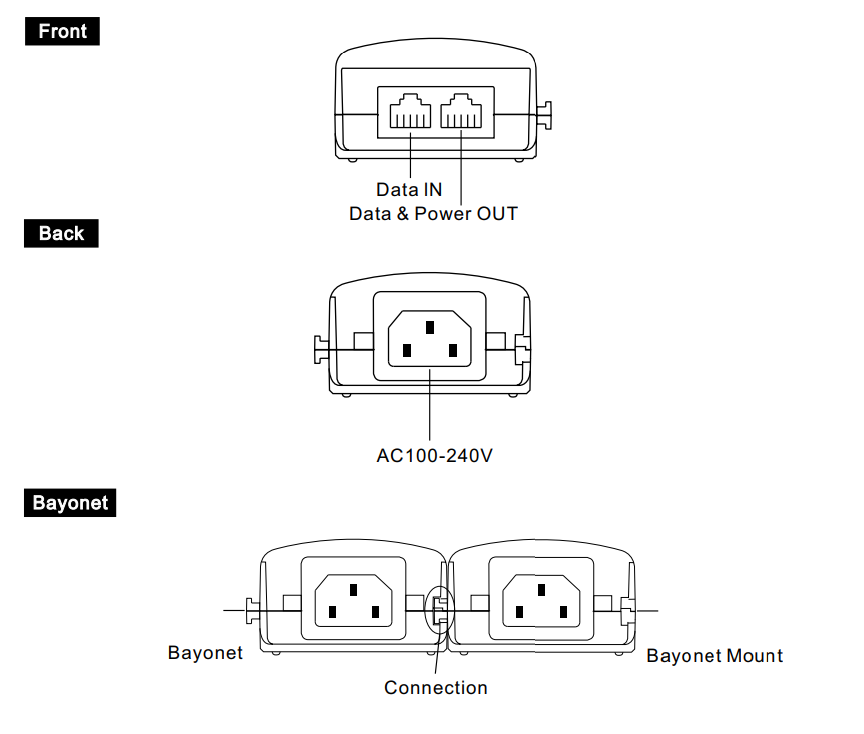

Board Diagram
Specifications
Technical Specifications
| Input Voltage | AC100V-240V |
|---|---|
| PoE output | 1xRJ45 |
| Data Input | 1xRJ45 |
| PoE Power Supply Type | Mid-span&End-span |
| PoE Power Output | DC 56V 95 watts |
| Output Ripple | <5% |
| Power Pin Assignment | 1/2/7/8 (-),3/6/4/5 (+) |
| Communication Port | 1xRJ45 Input |
| Transmission Rate | 10/100/1000Mbps |
| Transmission Medium | Cat5e/6 Cable |
| Distance | 100m (Max.) |
| Surge Protection | 2KV(Differential Mode), 4KV(Common Mode) |
| ESD | Direct discharge: 6KV, Air discharge: 10KV |
| Working Temperature | -10°C-40°C |
| Storage Temperature | -30°C-70°C |
| Humidity(Non-condensing) | -30°C-70°C |
| Dimension(LxWxH) | 169mm-96.5mm x 42.5mm |
| Color | Black |
| Weight | 769g |
