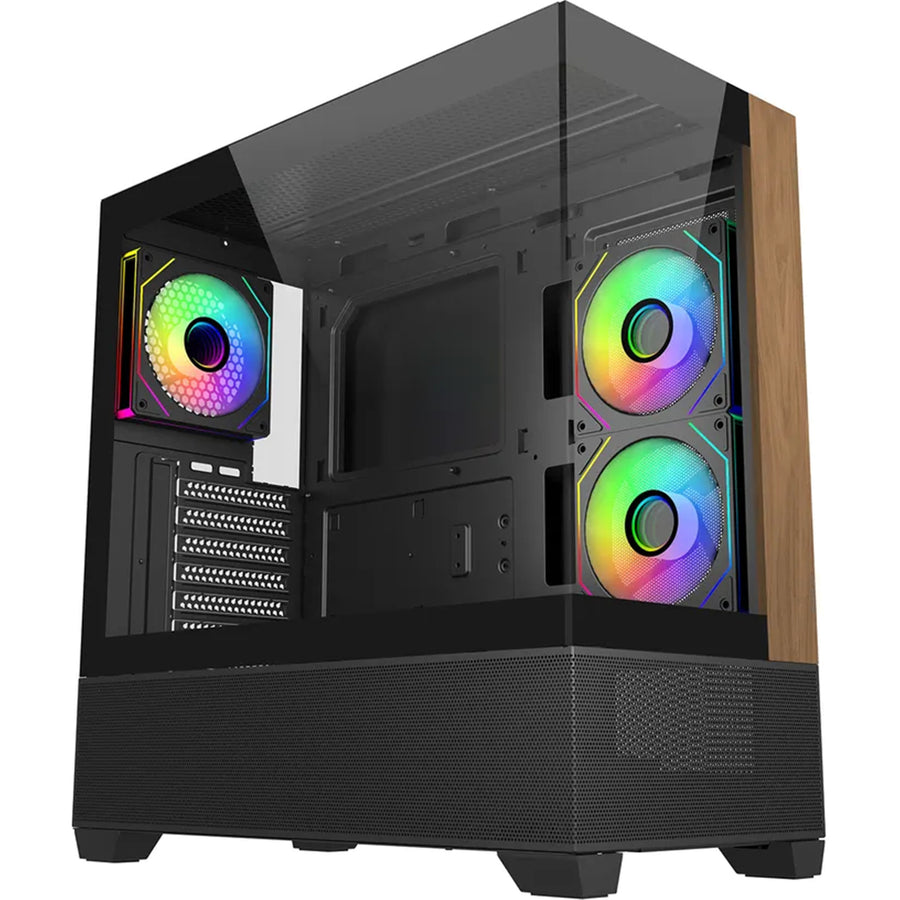

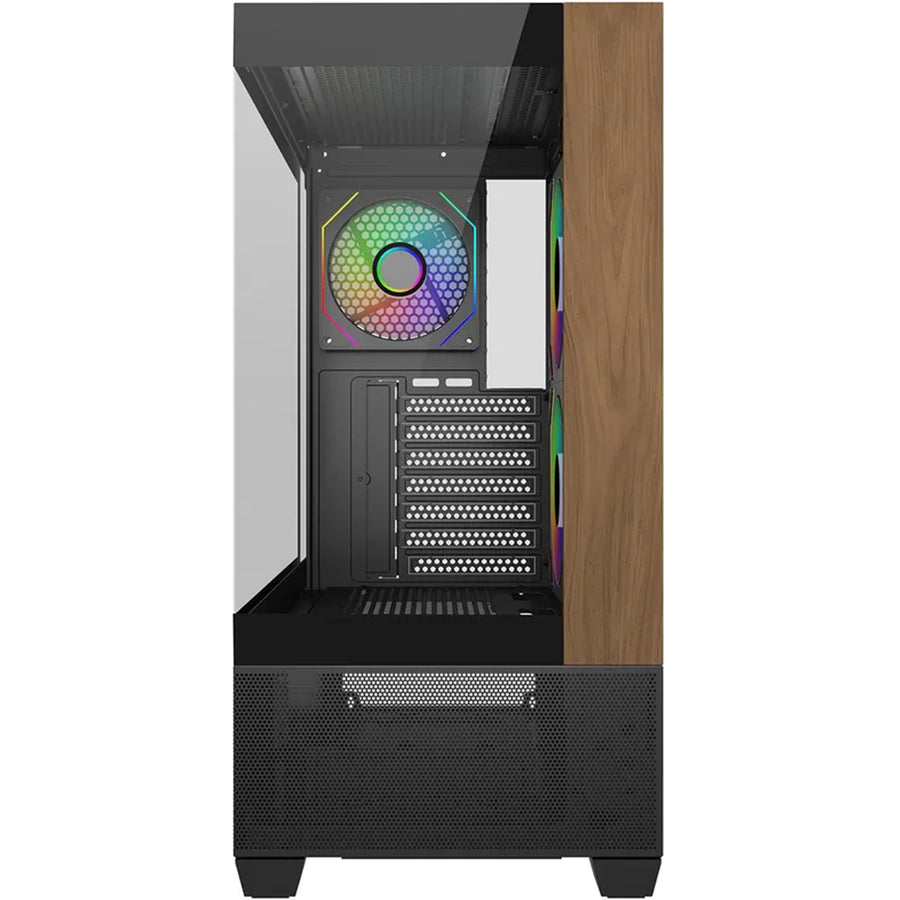

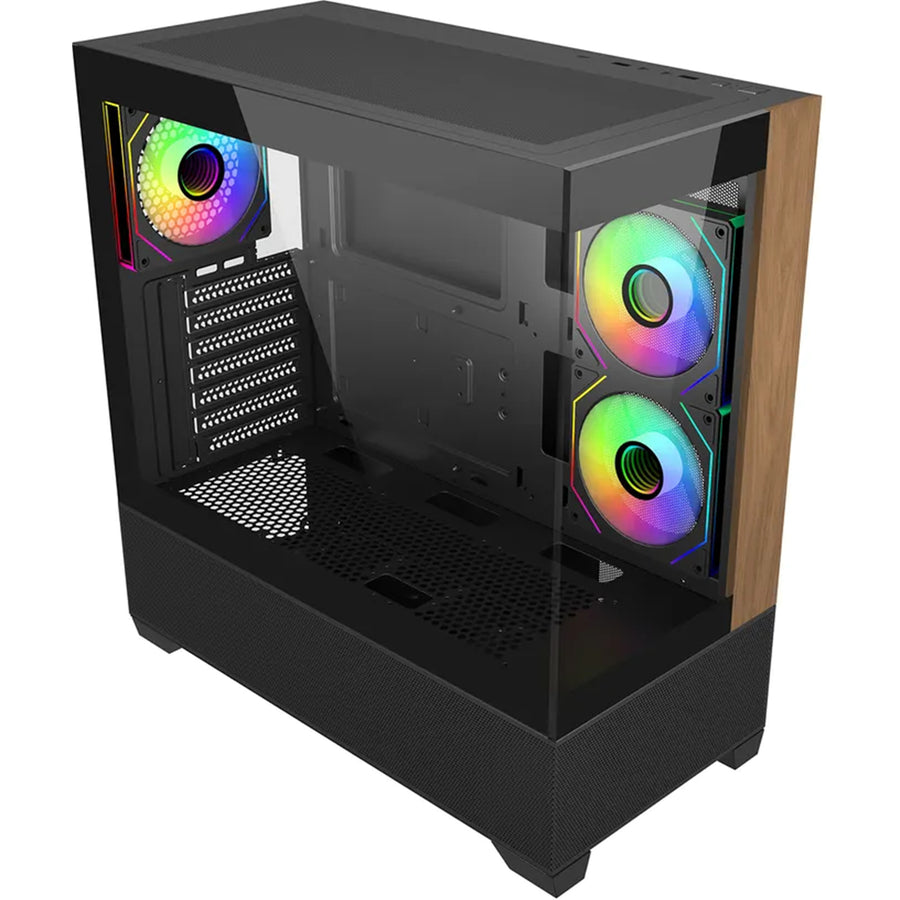

Cooler Master Elite 690 Tempered Glass ATX Tower Gaming Case - Wood Black

SKU: E690-KHNN-S00 ● In Stock
$99.94 $125.23
Free shipping over $299 Genuine product 7-day returns

Features

Natural Aesthetics. Immersive View. Advanced Cooling. - Elite 690 Wood

The Elite 481 Wood brings a warm, home-friendly aesthetic to high-performance PC builds. Featuring a compact dual-chamber mATX layout and a front panel crafted from real natural wood, it blends modern performance with organic design elements. With seamless tempered glass panels, vertical cooling support, and full-size radiator compatibility, the Elite 481 Wood is a versatile chassis that fits effortlessly into living spaces, creative studios, or stylish gaming setups.

270° Panoramic Tempered Glass

Beveled glass panels create an immersive, seamless showcase of your build.



Optimized Tower with PSU Chamber

Vertical layout separates thermal zones for better airflow and cleaner cable routing.

Vertical Cooling Architecture

Up to 10 fans in a bottom-to-top layout maximize airflow and cooling.

Natural Wood Front Panel

Crafted from real wood, the front panel adds a warm, organic touch to any space.



High-Performance Radiator Support

Top 360mm and side 240mm radiator support for powerful cooling setups.

Pre-installed ARGB Fans with Sync

Includes 3 daisy-chainable ARGB fans with full motherboard lighting sync support.



Top & Bottom Mesh Ventilation

Mesh panels ensure enhanced airflow and system-wide thermal performance.

Next-Gen GPU Ready

Supports up to 425mm GPUs-ready for RTX 50 Series and beyond.

High-Speed I/O Panel

USB 3.2 Gen 2x2 Type-C and dual USB 3.0 ports for blazing-fast connectivity.

Specifications

Technical Specifications

Model Number E690-KHNN-S00
Color Black
Materials - Front Panel Tempered Glass + Wood
Material - Side Panel (Left) Tempered Glass
Material - Side Panel (Right) Steel
Dimensions (L x W x H) 434 x 218 x 454 mm (Incl. Protrusions), 430 x 218 x 435 mm (Excl. Protrusions)
Volume 42.93 L (Liters Incl. Protrusions)
Motherboard Support ITX / Micro-ATX / ATX
Expansion Slots 7
5.25" Drive Bays 0
3.5" Drive Bays 1 (Max. 2)
2.5" Drive Bays 1 (Max. 2)
I/O Panel - USB Ports 1 x USB Type C 20Gbps, 2 x USB 3.0
I/O Panel - Audio In / Out 1x 3.5mm Combo
Pre-installed Fans - Rear 1x 120mm ARGB PWM
Pre-installed Fans - Side Mount 2x 120mm ARGB PWM reverse fan
Fan Support - Top 2x 140mm / 3x 120mm
Fan Support - Rear 1x 120mm
Fan Support - Side Mount 2x 120mm
Fan Support - Bottom 3x 120mm
Radiator Support - Top 120 / 240 / 360 (Max height 45mm)
Radiator Support - Bottom 120 / 240 / 360mm
Radiator Support - Side Mount 120 / 240mm
Clearance - CPU Cooler 170mm
Clearance - PSU 250mm
Clearance - Graphics Card 425mm
Power Supply Support ATX
Size Mid Tower
Series Elite Series
