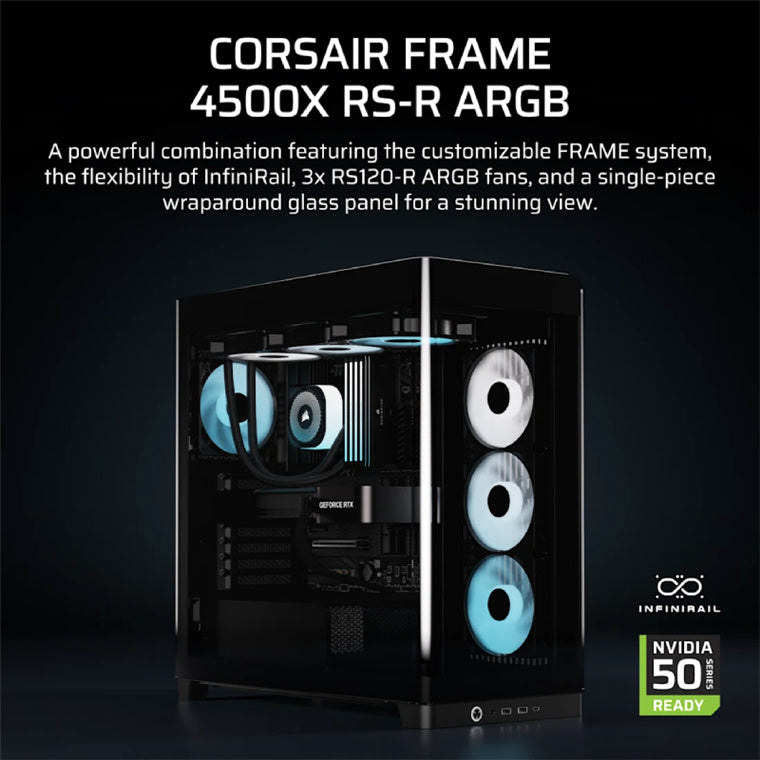

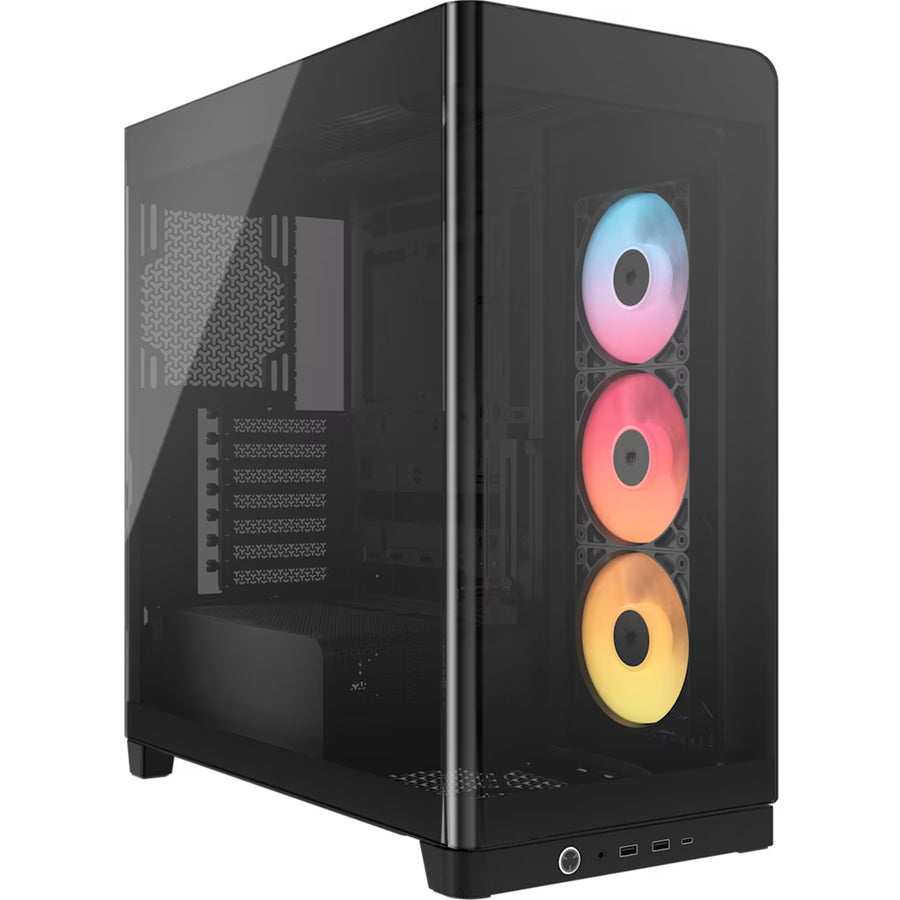

Corsair FRAME 4500X RS-R ARGB Tempered Glass ATX Gaming Case - Black

SKU: CC-9011314-WW ● In Stock
$313.44 $376.13
Free shipping over $299 Genuine product 7-day returns

Features

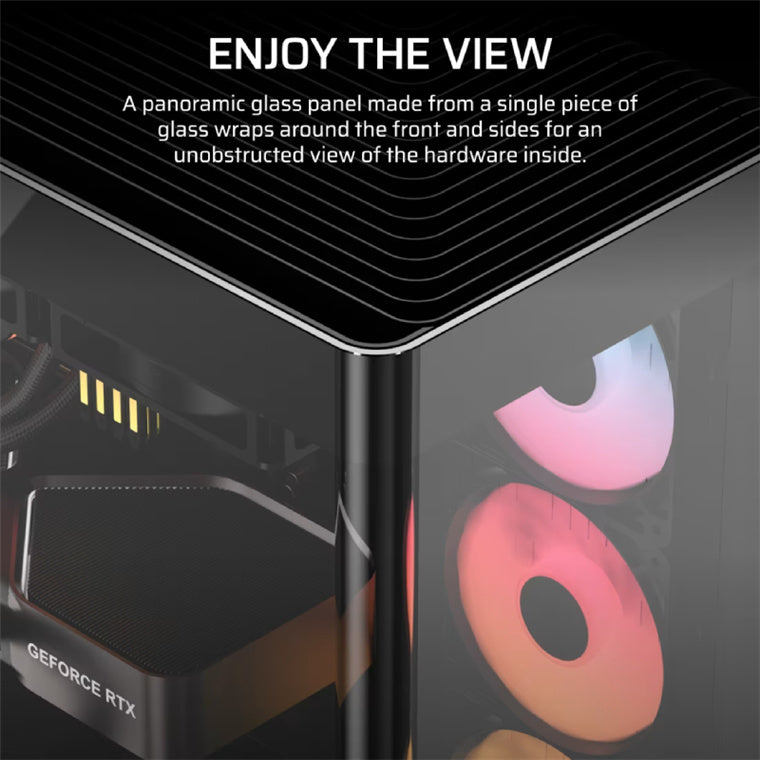

PANORAMIC GLASS SIDE PANEL

A single-piece of curved tempered glass lets you show off your build uninhibited, without any seams or sharp angles blocking the view. The curved glass wraps around the front and side, providing an unobstructed view of your high-powered hardware.

The tempered glass side panel is laminated with a practically invisible film coating for safety and noise reduction.

CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM

This steel multi-point fan mounting system provides unmatched flexibility for the roof fan configuration. Easily slide the rail to mount either 120mm or 140mm fans exactly where you need it, ensuring targeted airflow without the limitation of fixed mounting points.

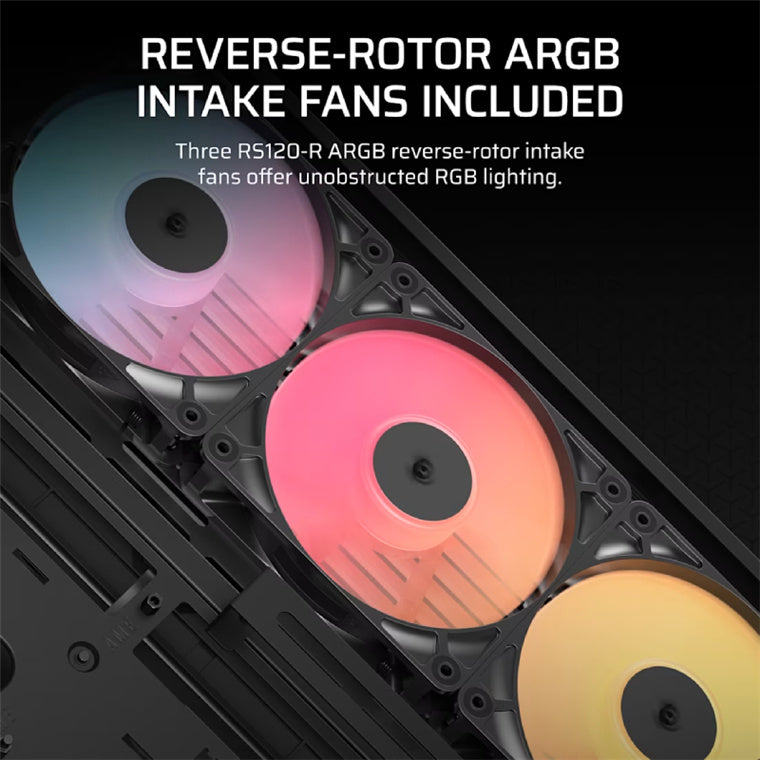

RS-R REVERSE-ROTOR INTAKE FANS INCLUDED

Reverse-rotor ARGB PWM RS-R intake fans are included for unobstructed RGB lighting and low-noise cooling. Fresh air is pulled through the ventilated side and into the spacious mid-tower chassis for effective cooling and plenty of airflow to ensure maximum performance.

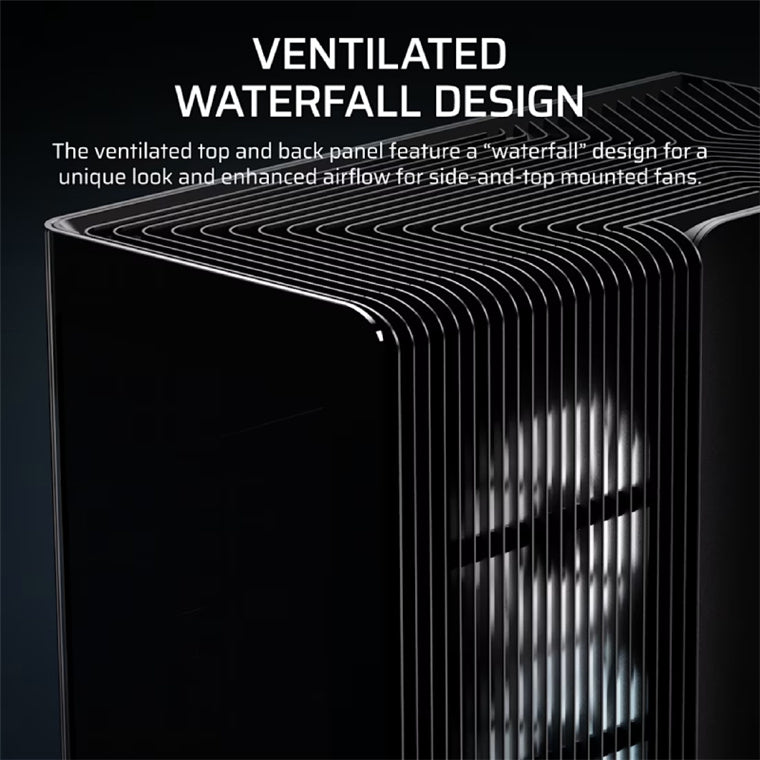

VENTILATED SIDE AND TOP PANELS

Airflow optimized panels adorn the top and side of the FRAME 4500X to provide maximum breathability for fans mounted in both locations.

The side-mounted reverse-rotor intake fans pull cool air in from outside the chassis, while top-mounted fans (sold separately) exhaust hot air out of the case to keep the interior frosty.

LOOK, NO CABLES

Fully compatible with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth, this design features ample connector and cable cutouts, along with tie-downs to keep your build neat and organized, even where you can't see them.

DIY DONE RIGHT

The FRAME 4500X incorporates useful features to make building a PC easier.

VERTICAL GPU READY

Put your GPU front and center in your new build with easy vertical mounting, no tools or bracket required (Riser Cable sold separately).

SAG-FREE GRAPHICS CARDS

A GPU Anti-sag Stabilization Arm keeps your GPU steady, so you never have to worry about damaging your PCIe slot.

REUSABLE SCREW BOX

Never lose an important screw again thanks to the included reusable screw box holding everything you need securely locked away.

Specifications

Technical Specifications

Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height 478 mm
Case Length 499 mm
Case Width 246 mm
Material Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Color BLACK
Case Size Mid-Tower
Radiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mm
Case Window Tempered Glass
Compatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITAN
Case Warranty 2 Year
Internal 3.5" Drive Bays 1
Internal 2.5" Drive Bays 2
Maximum CPU Cooler Height 185 mm
Maximum PSU Length 250 mm
Case Front IO (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length 460 mm
Weight 11.58 kg
Case Expansion Slots 7 Horizontal or 3 Vertical
Case Power Supply ATX
Radiator Support - Top 360mm, 280mm, 240mm
Radiator Support - Front None
Radiator Support - Bottom None
Radiator Support - Side 360mm, 280mm, 240mm
Radiator Support - Rear 140mm, 120mm
Fan Support - Top 3x 120mm, 2x 140mm
Fan Support - Front None
Fan Support - Bottom 3x 120mm, 1x 140mm
Fan Support - Side 3x 120mm, 2x 140mm
Fan Support - Rear 1x 120mm, 1x 140mm
Front IO Motherboard Connections 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support Yes
Included Fans RS ARGB Series
Dust Filtration Yes
Cable Routing Space 37mm
RapidRoute Included No
Left Side Panel Tempered Glass
Right Side Panel Steel
Vertical Mount Support Supported (Riser Card Sold Separately)
