CERWIN VEGA

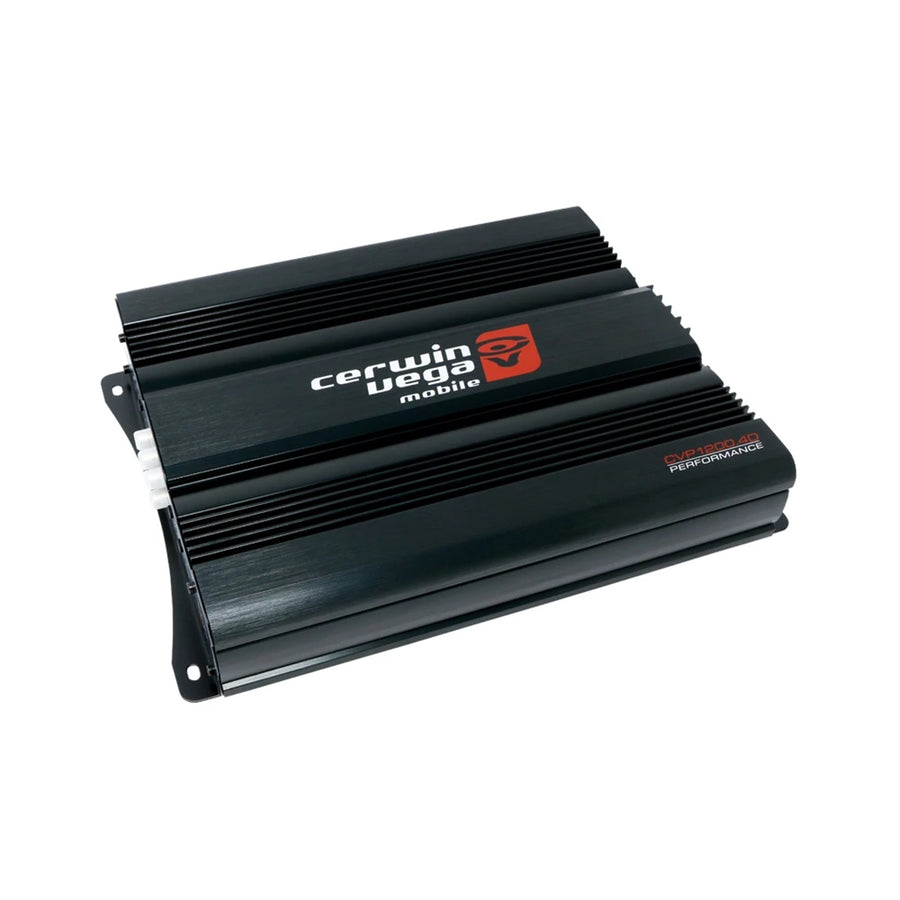

CVP1200.4D - CERWIN VEGA AMPLIFIER CVP SERIES 4CH 55W RMS X4 @ 4OHM / 75W RMS X4 @ 2OHM
$205.17
Free shipping over $299
Genuine product
7-day returns
CVP1200.4D - CERWIN VEGA AMPLIFIER CVP SERIES 4CH 55W RMS X4 @ 4OHM / 75W RMS X4 @ 2OHM
Features
Latest High-Efficiency Class A/B Topology
Compact Size with Ambient backlit logo
RCA "Pass Thru" output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 CH mode
Proprietary Vega Bass Boost EQ Up To 12dB
Compact Size with Ambient backlit logo
RCA "Pass Thru" output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 CH mode
Proprietary Vega Bass Boost EQ Up To 12dB
Specifications
Technical Specifications
| Model | CVP1200.4D |
|---|---|
| RMS Power(2O) | 75Wx4 |
| RMS Power (4O) | 55Wx4 |
| RMS Bridge (mono 4O) | 160Wx2 |
| Types | Class D |
| Technology | AB class |
| Power Supply | PWM |
| Power Supply (Threshold) | 10-16VDC |
| Idle Current | 0.7A |
| Distortion - THD (1KHz@4O) | ?1% |
| Distortion - S/N Ratio (A weight @ 1W) | =90dB |
| Distortion - S/N Ratio (A weight @ FP) | >105dB |
| Input Sensitivity - Hi/Low Input Level | 200mV-6V |
| Input Impedance - Low Input Level | 20KO |
| Output Impedance | 2/4O |
| Damping Factor (50Hz@4O) | 100 |
| Bandwidth (-3dB) | 10Hz-32KHz |
| Crossover (-12 dB/ Oct) Variable High-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | n/a |
| FUSE Ratings - ATC | 25Ax2 |
| Dimension - Length x Width x Height - Inches(mm) | 11.03x9.38x2.25 (280x238x57) |
