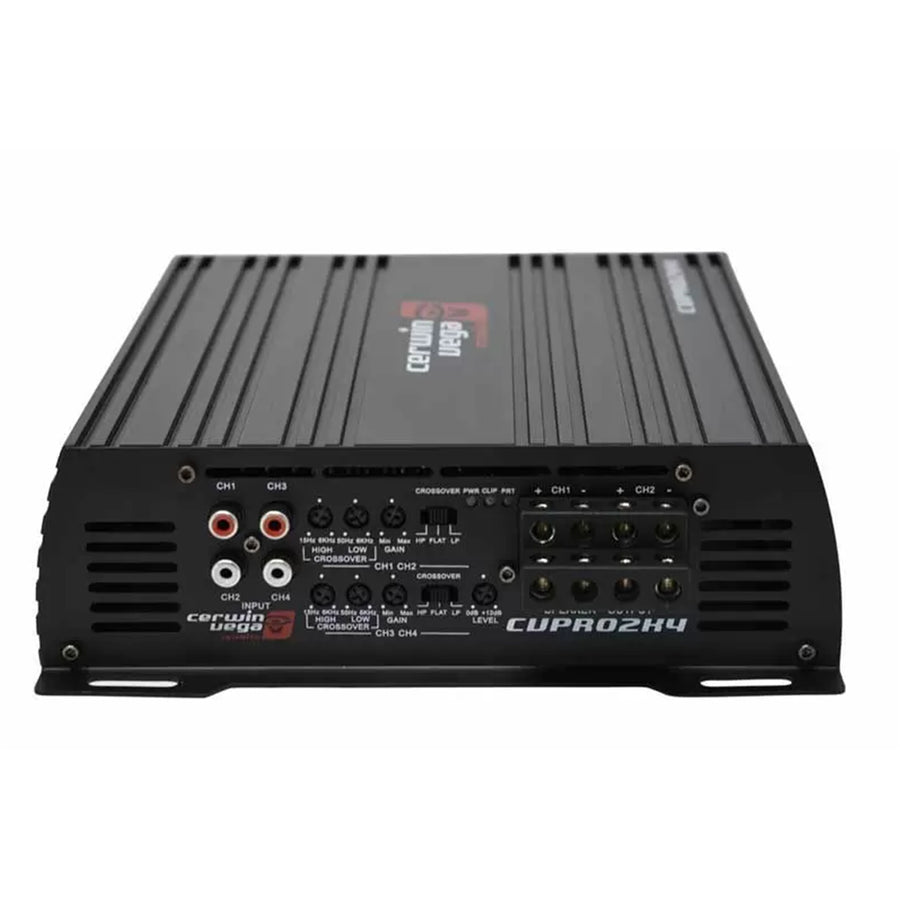

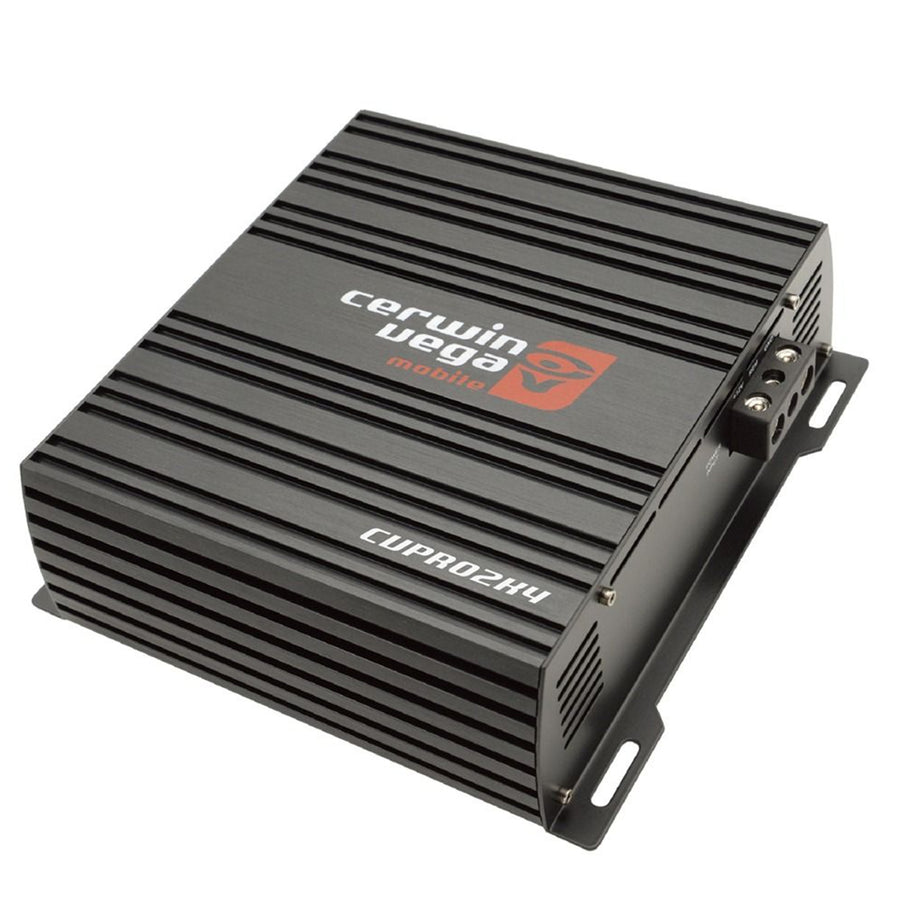

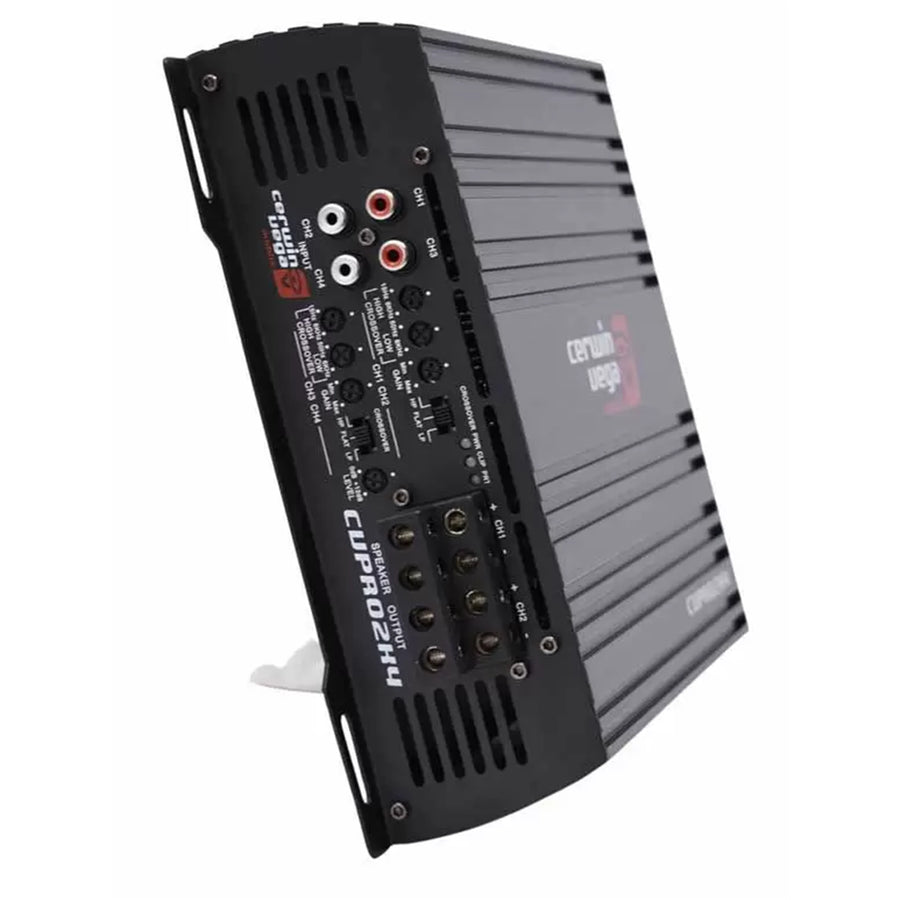

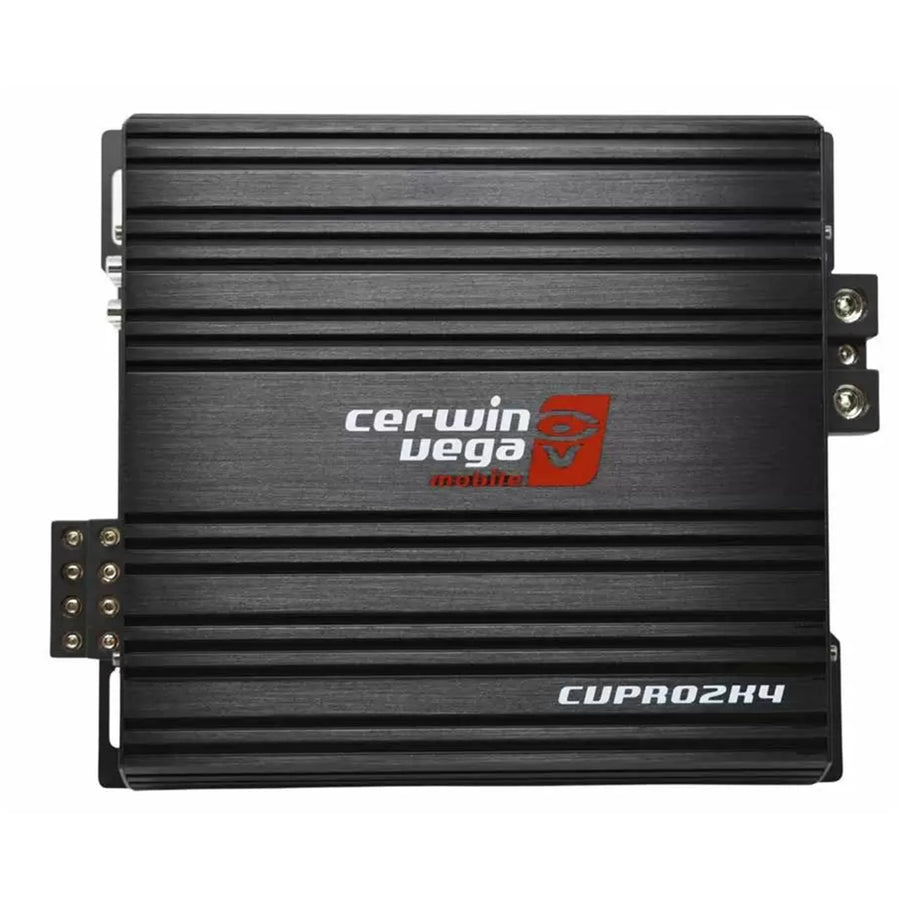

CVPRO2K4 - CERWIN VEGA AMPLIFIER CVPRO 4 CH 325W RMS X 4 @ 4 OHM / 1000W RMS X 2 @ 4 OHM BRIDGED
CVPRO2K4 - CERWIN VEGA AMPLIFIER CVPRO 4 CH 325W RMS X 4 @ 4 OHM / 1000W RMS X 2 @ 4 OHM BRIDGED
Features
The CV PRO series amplifiers quench the thirst of those power-hungry speakes & subwoofers that call for enormous power to make the ground pound. Designed and engineered to generate maximum power output, the CV PRO series amplifiers delivers 1000W to 10,000W of MAX power that will produce bass mayhem and make your speakers & subwoofers flex and shiver like never before. For the ultimate SPL experience, you cannot go wrong with CV PRO series amplifiers!
- 325W x 4 @ 4 ohm
- 520W x 4 @ 2 ohm
- 1035W x 2 @ 4 ohm BRIDGED
- 15-20KHz Frequency Response
- LPF Filter 47-56KHz
- 12dB Crossover Slope
Specifications
Technical Specifications
| Amplifier | 4 Channel |
|---|---|
| MAX Power Rating | 1000 W MAX |
| RMS Power(2 ohm) | 520 |
| RMS Power (4 ohm) | 325 |
| Topology | Full-Range Class D |
| Frequency Response | 15-20KHz |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC - 17.0VDC |
| Idle Current | (2.6A) |
| Distortion - THD (1KHz @ 4 ohm) | 0.1% |
| Distortion - S/N Ratio (A weight @ 1W) | -90dBA |
| Distortion - S/N Ratio (A weight @ FP) | -105dBA |
| Input Sensitivity | 0.2V - 5.0V |
| Input Impedance - Low Input Level | 20 KO |
| Output Impedance | TBD |
| Damping Factor (50Hz @ 4 ohm) | >150 |
| Bandwidth (-3dB) | 15Hz-20KHz |
| LPF Filter | 47-56KHz |
| Crossover (-12 dB/ Oct) Variable High-Pass | 50Hz-6KHz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 15Hz-6KHz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | 15Hz-1KHz |
| FUSE Ratings - ATC | 150A |
| Dimension - Length x Width x Height | 10.4" x 8.8" x 2.6" (265 x 225 x 66.5mm) |
