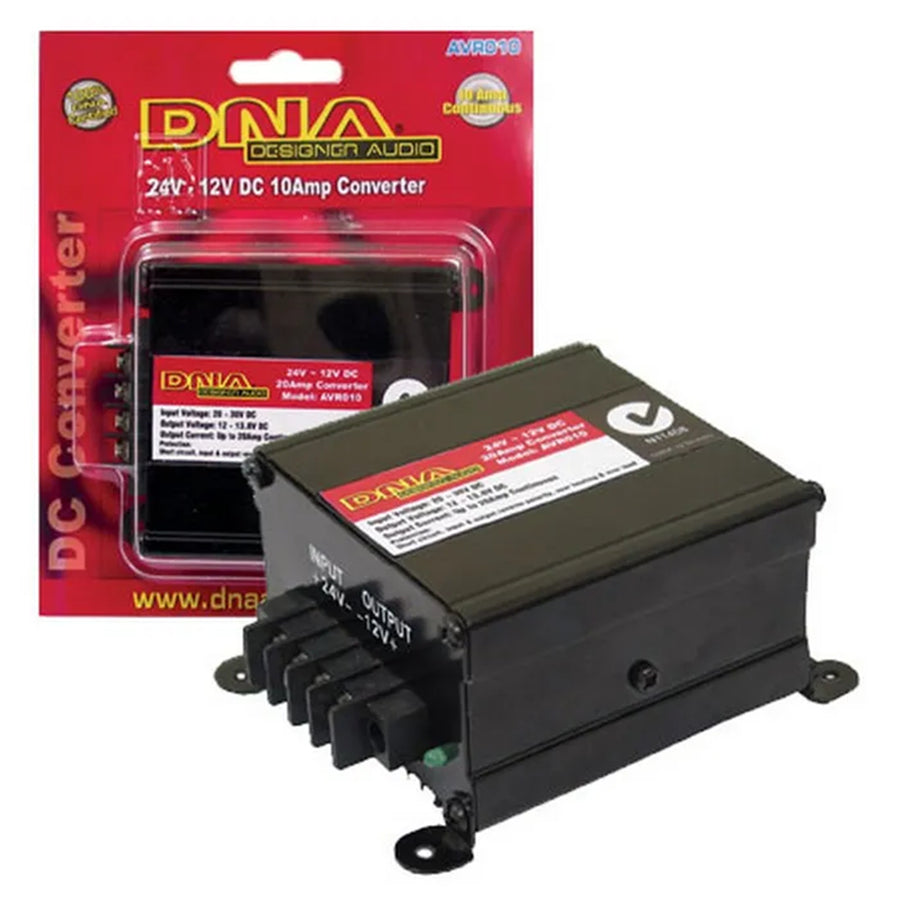

DNA VOLTAGE REDUCER 24V TO 12V @ 10 AMP CONTINUOUS

Name: DNA VOLTAGE REDUCER 24V TO 12V @ 10 AMP CONTINUOUS
Brand: DNA
SKU: AVR010
Price: 78.41 NZD
Availability: InStock

SKU: AVR010 ● In Stock

$68.18

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

24 Volt DC to 12 volt DC voltage reducer

- Input DC voltage range: DC20~30V DC
- Output voltage range: 12V~13.8V
- Continuous power: 10 Amps
- Peak power: 15 Amps
- No load current draw: 20mA
- Max. power efficency: >90%
- Cooling: Air convection
- Input polarity reverse: Diode protection
- Output polarity reverse: Circuit protection
- Over heating: Circuit protection
- Over load: Circuit protection
- Output short: Circuit protection
- Fuse: 15 Amps
- Dimension (LxWxH): 71 x 73 x 45mm
- Weight: 260g

Specifications

Technical Specifications

Product name	VOLTAGE REDUCER 24V TO 12V @ 10AMP CONTINUOUS
Input DC voltage range	DC20~30V DC
Output voltage range	12V~13.8V
Continuous power	10 Amps
Peak power	15 Amps
No load current draw	20mA
Max. power efficency	>90%
Cooling	Air convection
Input polarity reverse	Diode protection
Output polarity reverse	Circuit protection
Over heating	Circuit protection
Over load	Circuit protection
Output short	Circuit protection
Fuse	15 Amps
Dimension (LxWxH)	71 x 73 x 45mm
Weight	260g
