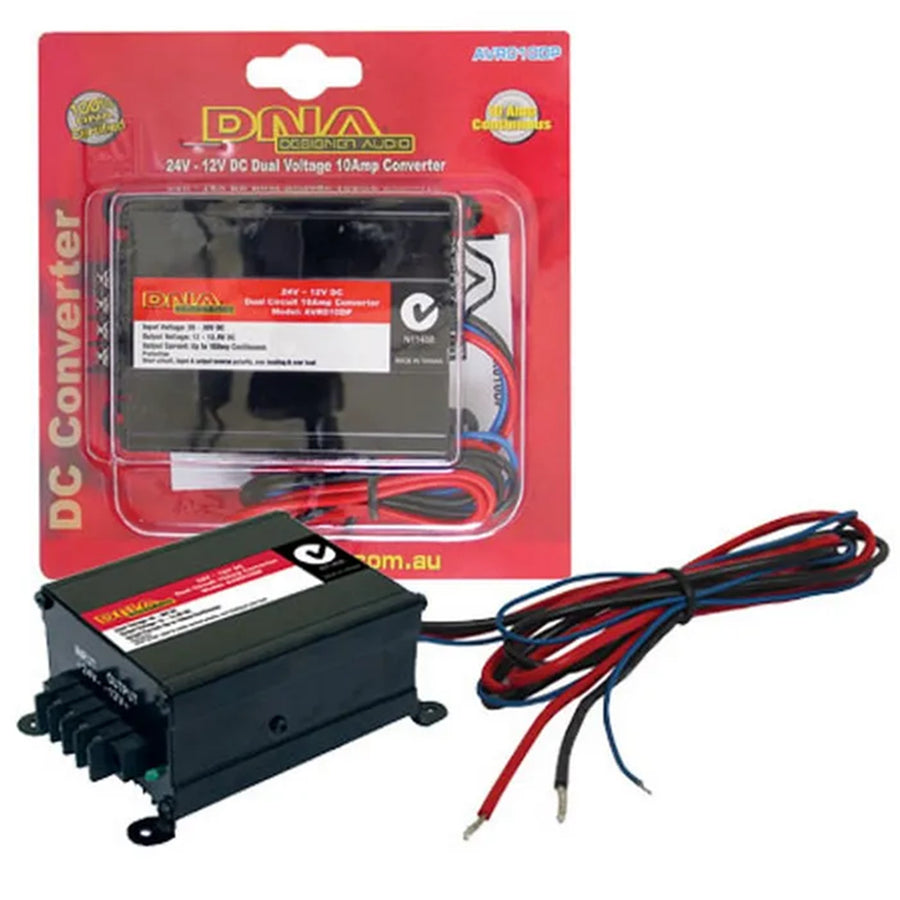

DNA VOLTAGE REDUCER 24V TO 12V @ 10 AMPS CONTINUOUS DUAL OUTPUT

24 Volt DC to 12 volt DC voltage reducer with dual outputs.

Fitted with 2 independent 12VDC outputs.
Output 1: using the terminals on the side of the case.
Output 2: using the 3 wires.
Red: 12VDC postive output
Black: negative output
Blue: 24VDC trigger wire for activating the circuit.

- Input DC voltage range: DC20~30V DC
- Output voltage range: 12V~13.8V
- Continuous power: 10 Amps
- Peak power: 15 Amps
- No load current draw: 20mA
- Max. power efficency: >90%
- Cooling: Air convection
- Input polarity reverse: Diode protection
- Output polarity reverse: Circuit protection
- Over heating: Circuit protection
- Over load: Circuit protection
- Output short: Circuit protection
- Fuse: 15 Amps
- Dimension (LxWxH): 90 x 73 x 45mm
- Weight: 330g
