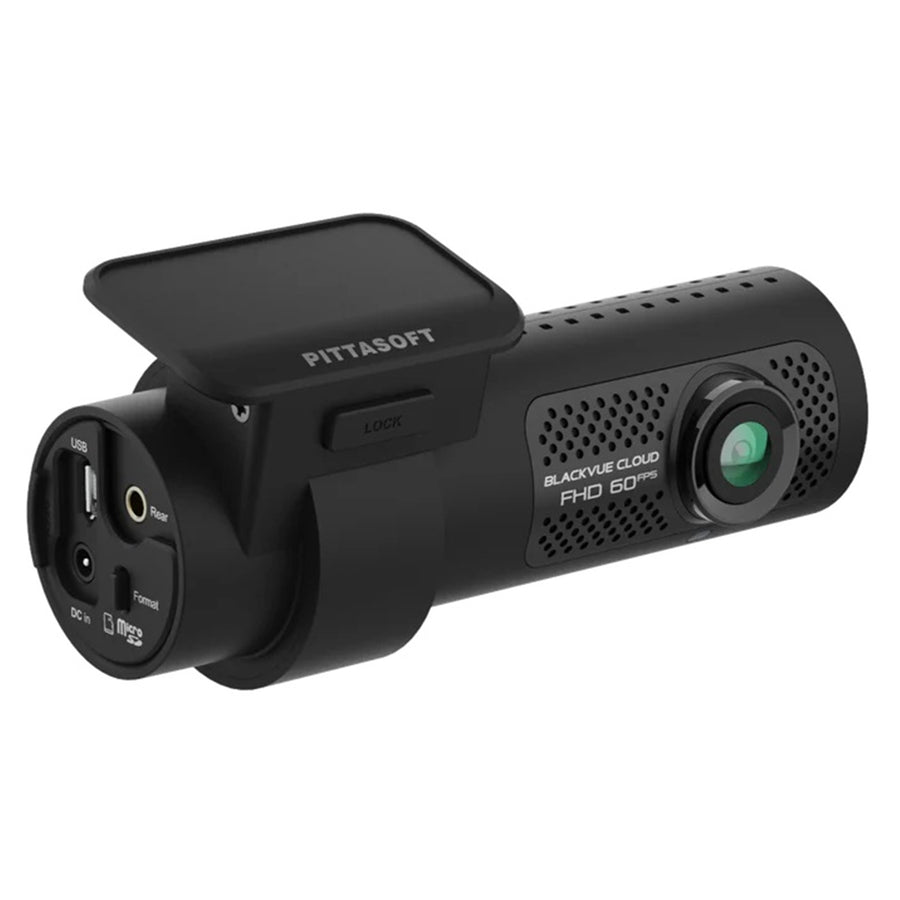

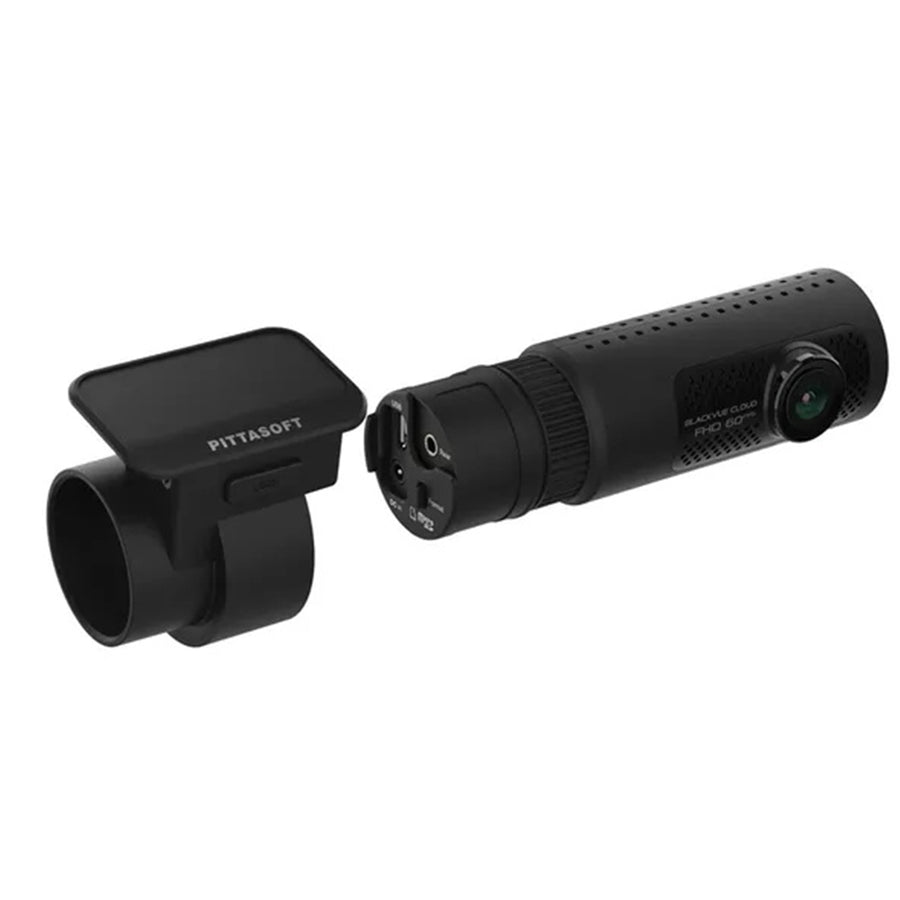

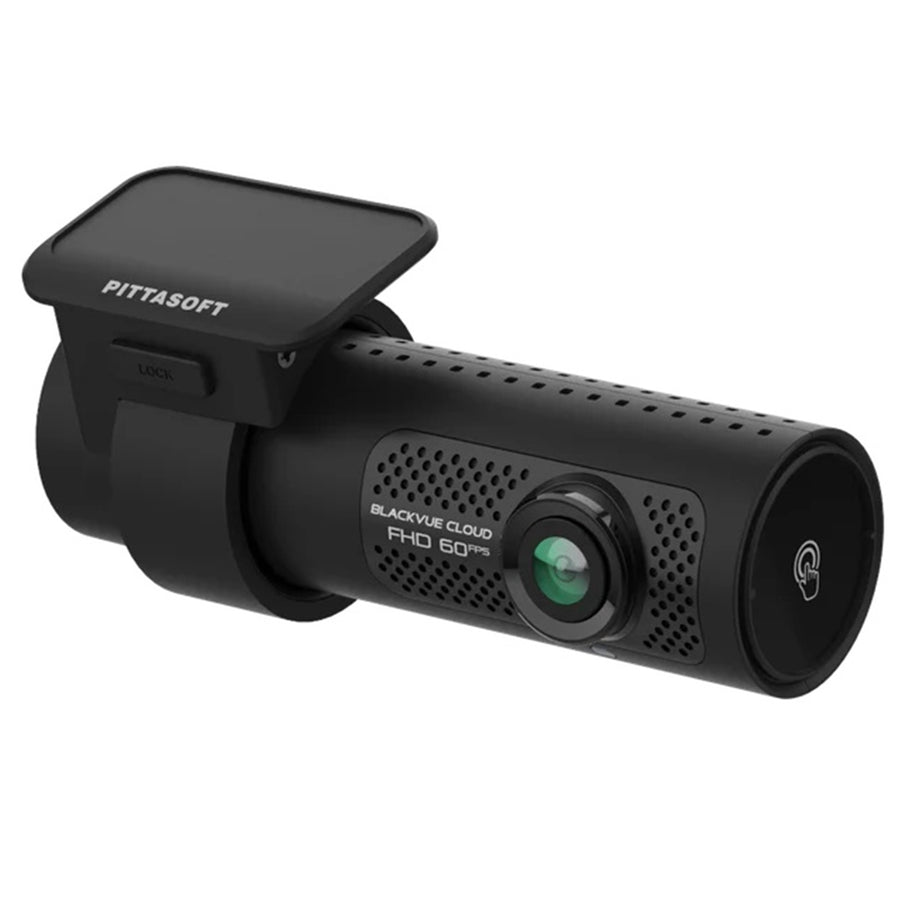

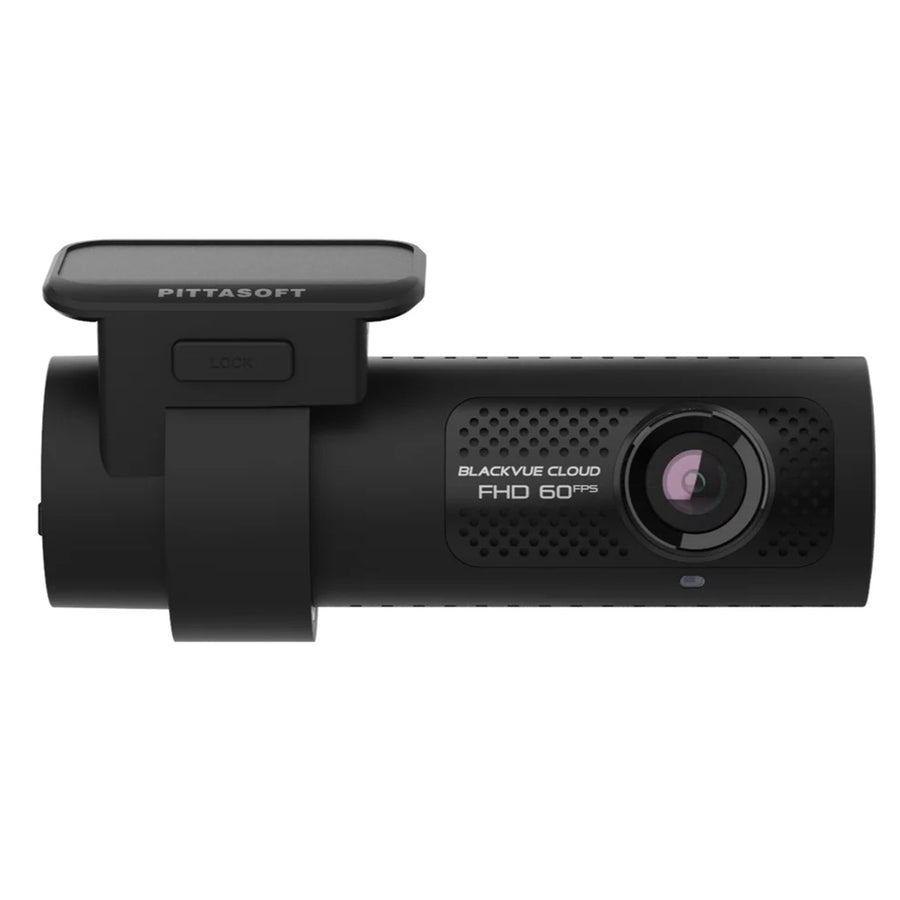

DR770X-1CH-II - BLACKVUE DR770X-1CH-II FRONT FACING FULL HD (1080) DASHCAM 64 GB
DR770X-1CH-II - BLACKVUE DR770X-1CH-II FRONT FACING FULL HD (1080) DASHCAM 64 GB
Features
The DR770X Series Just Got Better
The next evolution of the BlackVue DR770X series, this upgraded lineup delivers enhanced video quality, faster boot times, and optimized Wi-Fi performance for seamless connectivity. With expanded 1TB microSD support and improved audio recording, every detail is clearer than ever. Experience smarter protection with a dash cam that's ready when you are.
BlackVue DR770X-1CH II features Full HD Sony STARVIS™ image sensor for best image quality under any light. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.
- Enhanced video quality
- 1TB microSD support
- Improved audio recording with reduced noise
- Optimized Wi-Fi performance
- Start up time reduced from 24-36s to ~14s

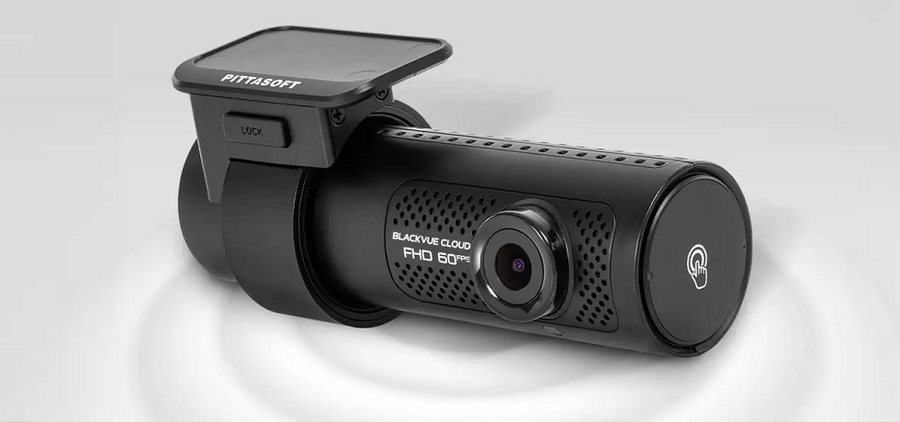

BlackVue Full HD Cloud Dashcam
Full HD cloud dashcams deliver clear recording performance powered by Sony STARVIS sensors, providing strong visibility in both day and night conditions, while native parking mode keeps your BlackVue monitoring your vehicle around the clock for continuous protection.
Motion Detection Mode
Records a 1-minute buffered video whenever a motion is detected by the front or rear camera. Motion detection areas can be set manually in the app.
Time Lapse Mode
Records constantly at 1 frame per second so each 1 minute video covers 30 minutes of real time. Recommended if you routinely park in busy areas.
Specifications
Technical Specifications
| What's Included? | Front CameraHardwiring Power CableUSB-C Power CableUSB-C 12V AdapterMicroSD CardDouble-sided tape for the mounting bracketPry tool / Trim RemoverCable clips (3 EA)Alcohol Pad |
|---|---|
| Model Name | DR770X-1CH II |
| Channel | 1CH (upgradable to 2CH) |
| Memory | 64GB |
| Highlights | Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module |
| Product Dimensions | Black / Length 135.0mm x Width 101.0mm x Height 37.5mm / 209g |
| Memory Support | microSD card up to 1TB |
| Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode | YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 62° |
| Resolution Frame Rate | Full HD @60fps* Frame rate may vary during Wi-Fi streaming |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 25 MbpsHighest: 12 MbpsHigh: 10 MbpsNormal: 8 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | YES |
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |

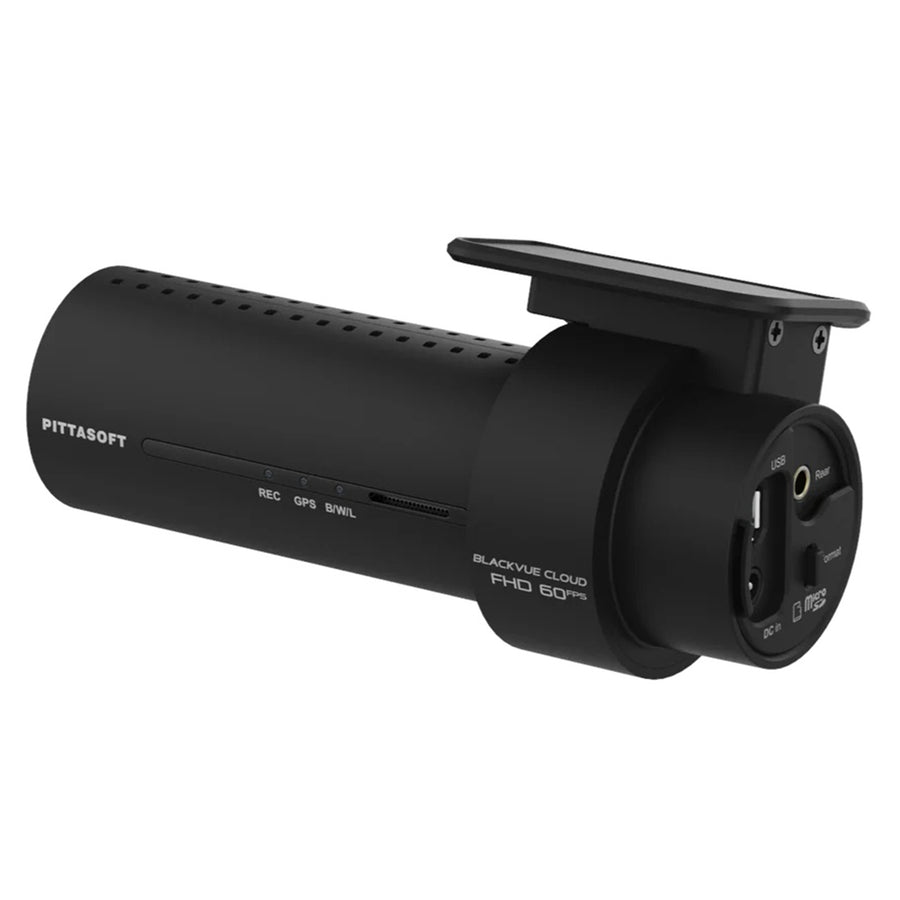

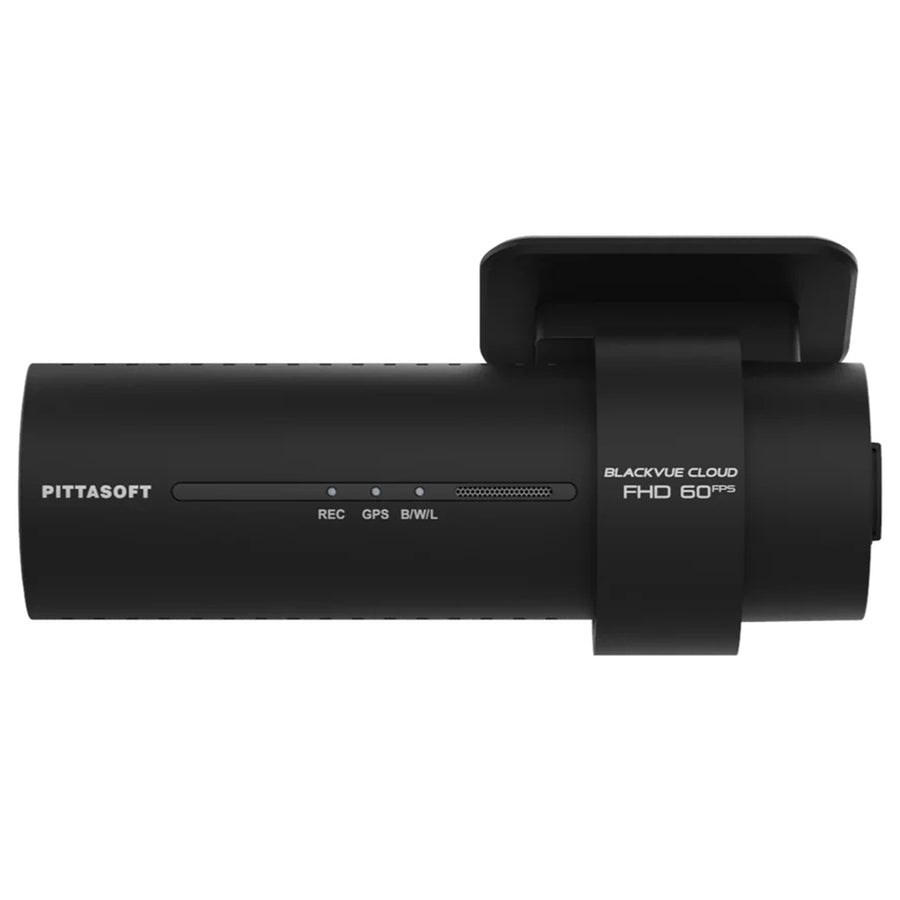

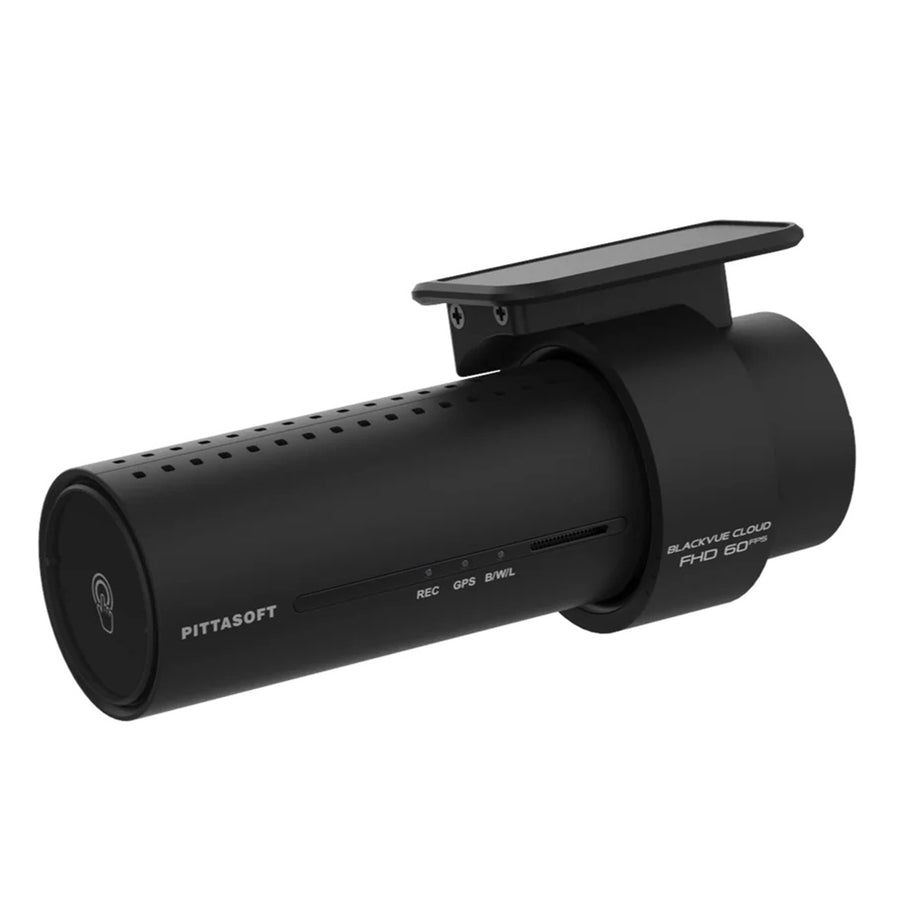

| LED Indicators | Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |

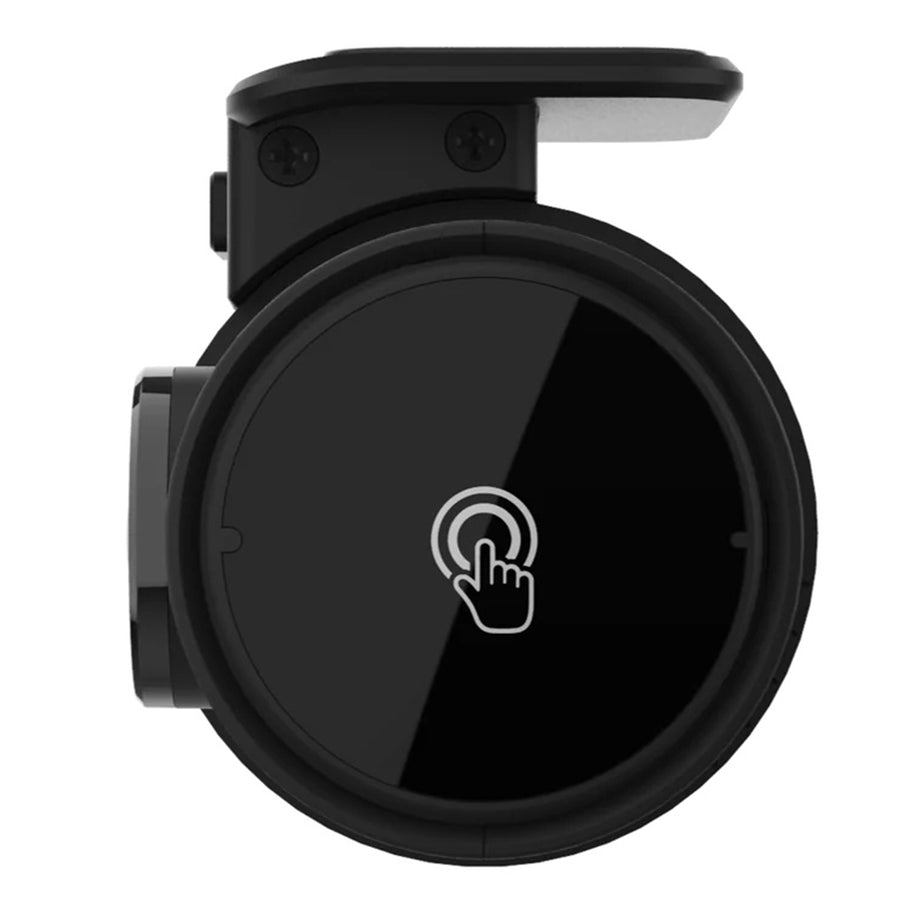

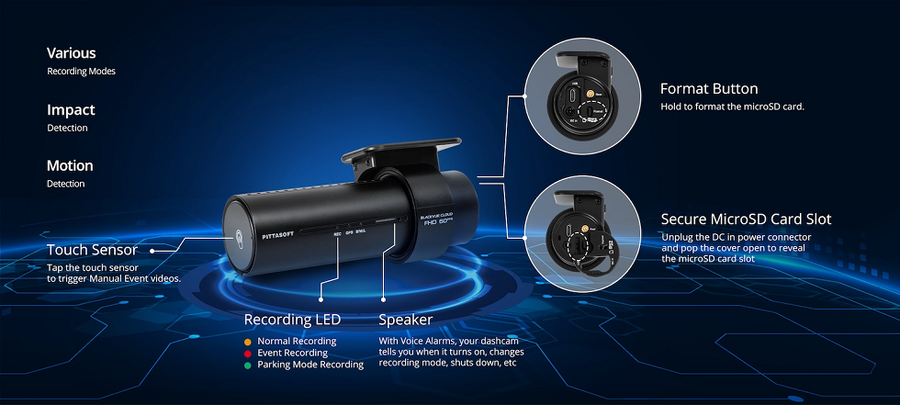

| Button | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
| Operation Temperature | -20 °C − 80 °C (-4 °F − 176 °F) |
| Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F) |
| High Temp Cut Off | Approx. 80 °C (176 °F) |
| Backup Battery | Built-in supercapacitor |

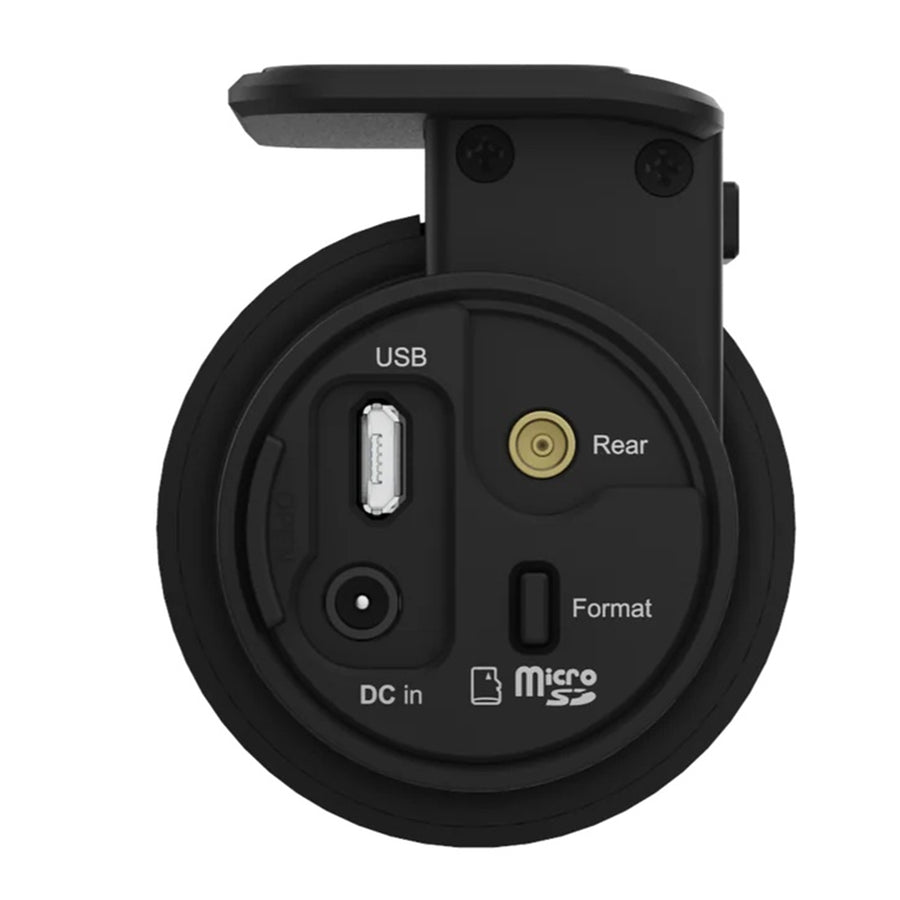

| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On/1CH): Avg. 240mA / 12VParking Mode (GPS Off/1CH): Avg. 190mA / 12V* Actual power consumption may vary depending on use conditions and environment |
| Certifications | FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
| BlackVue Viewer | Windows 7 or higher, Mac Sierra OS X (10.12) or higher |
| BlackVue Web Viewer | Chrome 71 or higher, Safari 13.0 or higher |
| BlackVue Application | Android 8.0 or higher, iOS 13.0 or higher |
| Adaptive Format-Free File Management System | Yes |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (optional) |
