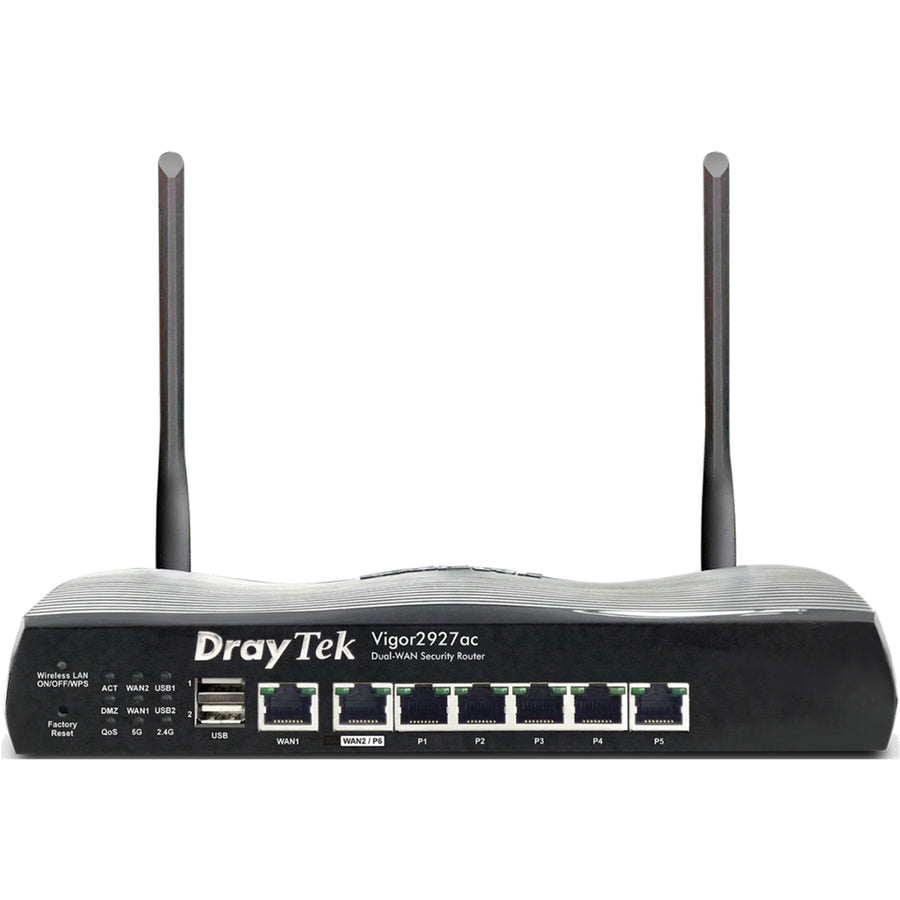

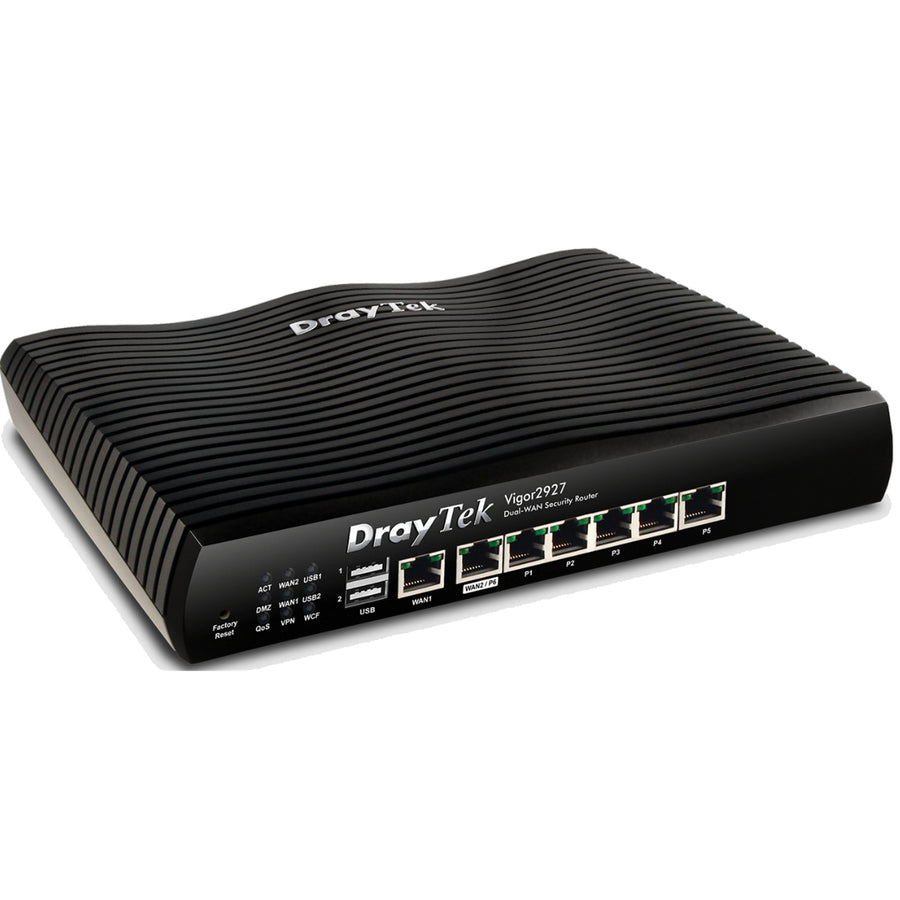

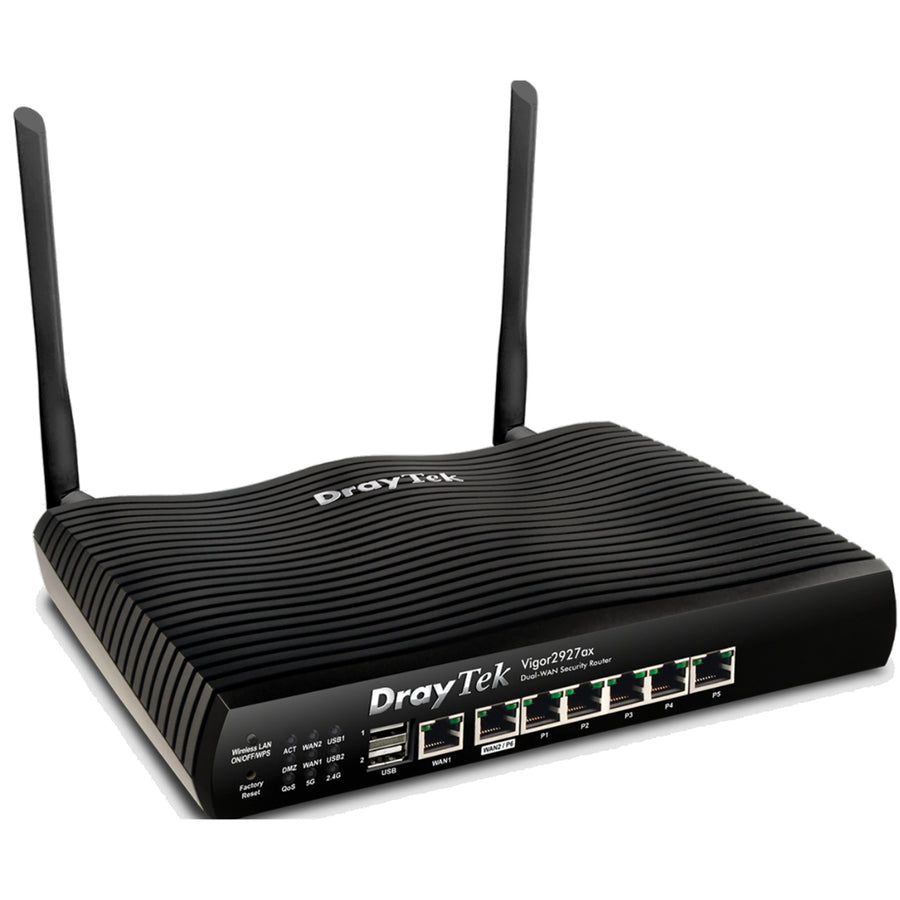

DrayTek DV2927AX - Dual GigE WAN Router/Firewall IPSec PPTP SSL VPN QoS Wi-Fi 6
DrayTek DV2927AX - Dual GigE WAN Router/Firewall IPSec PPTP SSL VPN QoS Wi-Fi 6
Features
The Equipment for All Services
Vigor2927 Series is a dual-Ethernet WAN firewall router, providing load-balancing and failover for your business continuity. Featuring VPN, QoS, route policy, firewall, content filtering, bandwidth management, captive hotspot portal, and a lot more, this is the ultimate router that does it all for SMB. The Series includes built-in 802.11ac Wave 2 WiFi, 802.11ax WiFi, and VoIP gateway models.
Load Balancing
Maximize throughput and reliability by using multiple Internet connections.
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2927 Series to the remote offices and teleworkers over the Internet.
SSL VPN
The VPN works through firewalls providing secure remote access to any network environment.
VPN matcher
Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN.
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
VoIP Friendly
Vigor2927 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. Setup Guide
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN.
Wireless WAN (ac model only)
Get Internet access wirelessly from a wireless network, a mobile hotspot, or a personal hotspot set up on smartphones.
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice.
Central AP Management
Use the Vigor2927 Series router as a wireless controller to maintain and monitor the VigorAPs.
Mesh (Wireless model only)
Easily link to other VigorAP to expand the wireless network.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
Specifications
Technical Specifications
| Fixed WAN Port | 1x GbE RJ-45 or1x 100/1000M SFP (F model) |
|---|---|
| WAN/LAN Switchable Port | 1x GbE RJ-45 |
| Fixed LAN Port | 5x GbE RJ-45 |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| RJ-11 Port for Voice | 2x FXS (V model) |
| Wireless Antenna | 2x External DipoleGain: 3 dBi for 5GHz, 2.5 dBi for 2.4GHz(ac/ax model) |
| 2.4G WLAN | 802.11n 2x2 MIMO, up to 400Mbps Link Rate (ac model)802.11ax 2x2 MIMO, up to 574Mbps Link Rate (ax model) |
| 5G WLAN | 802.11ac Wave 2 2x2 MU-MIMO, up to 867Mbps Link Rate (ac model)802.11ax 2x2 MU-MIMO, up to 2402Mbps Link Rate (ax model) |
| NAT Throughput | 800 Mbps |
| NAT Throughput w/ Hardware Acceleration | 940 Mbps (Single WAN)1.8 Gbps (Dual WAN) |
| IPsec VPN Performance | 290 Mbps (AES 256 bits) |
| SSL VPN Performance | 120 Mbps |
| Max. Number of NAT Sessions | 60,000 |
| Max. Concurrent VPN Tunnels | 50 |
| Max. Concurrent OpenVPN + SSL VPN | 25 |
| Power Supply | DC 12V @ 2-2.5A |
| Max. Power Consumption | 24 watts (ac model) |
| Dimension | 241mm x 165mm x 44mm |
| Weight | 630g (ac model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
