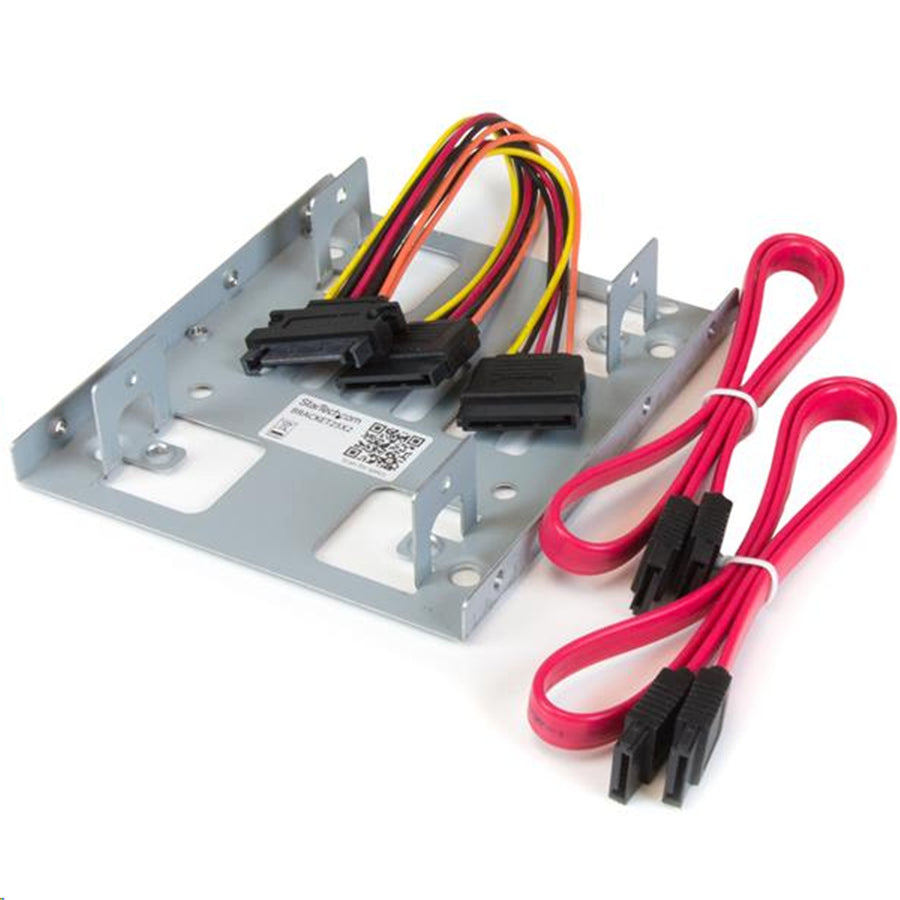

StarTech.com BRACKET25X2 - Dual 2.5 SATA HDD to 3.5 Mount Bracket
Features
Mount two 2.5in SATA SSDs/HDDs into a single 3.5in drive bay
- CONVENIENT SETUP: Use this dual 2.5in HDD / SDD mounting bracket to install two 2.5 inch SSDs (solid-state drives) or HDDs (hard drives) into a 3.5 inch drive bay on your desktop PC
- SAVE TIME: This 2.5in mounting bracket is ideal for technicians and IT professionals performing system setups, and includes a mounting screw kit, two SATA data cables, and one SATA power Y cable
- BROAD COMPATIBILITY: This 2.5in HDD / SDD mount is compatible with 3.5in SATA drives of any capacity or file format
- DRIVE HEIGHT RANGE: This 2.5in dual SSD / HDD mounting bracket supports 2.5in drives up to 9.5mm in height (top slot) and 12.7mm (bottom slot)
The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.
Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states
For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).
The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Applications
- Add the performance of 2.5in solid state drives to your desktop computer
- Install up to two 2.5" SATA hard drives into an unused 3.5" bay in a desktop chassis
- Repurpose unused laptop hard drives to work with your desktop computer
- Migrate data from a 2.5in laptop drive to your desktop computer
The StarTech.com Advantage
- Maximize internal mounting space, by installing two 2.5in drives into a single 3.5in mounting bay
- Improve the performance speed of your desktop computer by adding 2.5in solid state drives into a 3.5in mounting bay
Specifications
Technical Specifications
| Interface | SATA |
|---|---|
| Package Height | 1.5 in [3.7 cm] |
| Package Length | 5.5 in [13.9 cm] |
| Shipping (Package) Weight | 6.8 oz [192.0 g] |
| Package Width | 6.4 in [16.3 cm] |
| Package Quantity | 1 |
| Weight of Product | 2.6 oz [73.0 g] |
| Color | Silver |
| Material | Steel |
| Product Length | 4.6 in [11.6 cm] |
| Product Width | 4.0 in [10.2 cm] |
| Product Height | 0.9 in [2.2 cm] |
| Included in Package | 1 - Dual 2.5" mounting bracket1 - Drive mounting screw kit4 - Flat screws and washers (bottom drive)4 - M3x5mm screws (top drive)4 - 6-32 Screws (case mount)2 - SATA data cables1 - SATA Power Y cable1 - quick-start guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > Internal Hard Drives |
| Weight | 0.091 kg |
