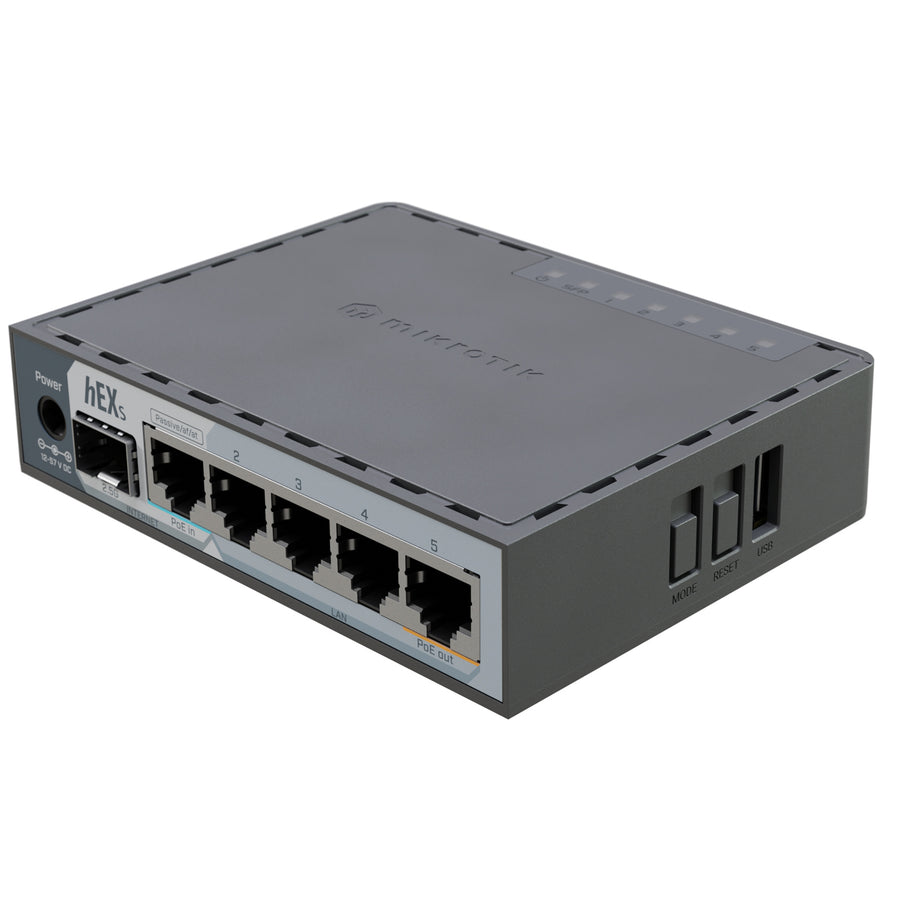

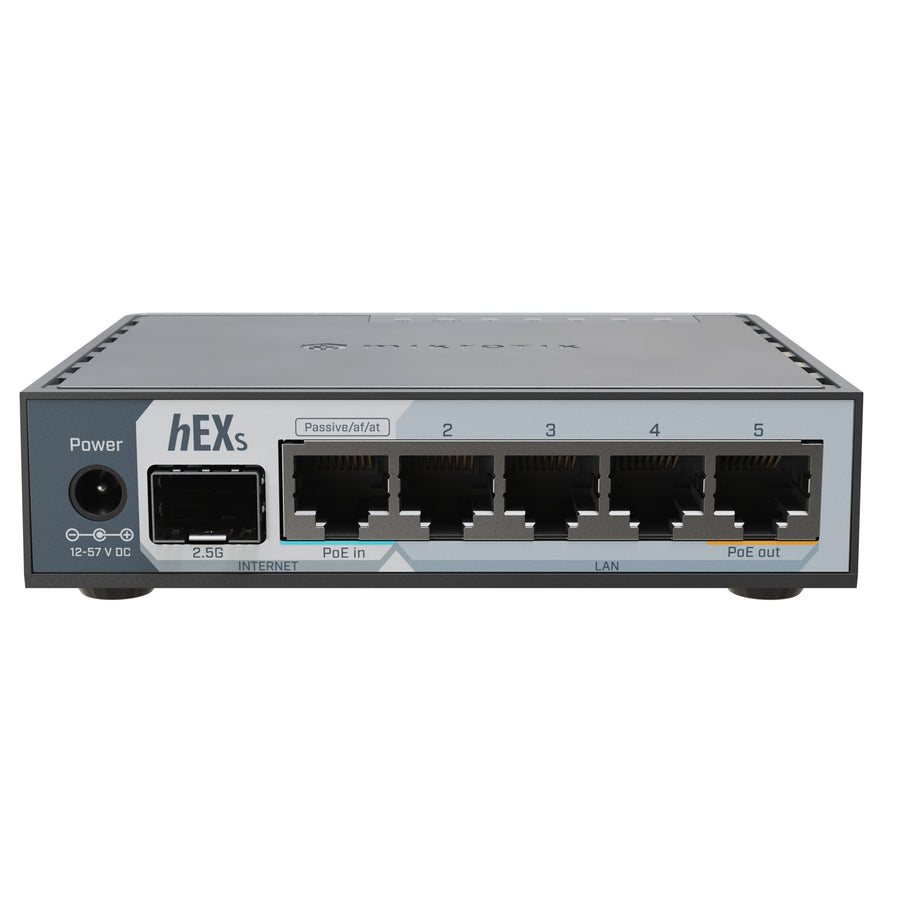

E60iUGS - MikroTik hEX S 5 Port Gigabit Ethernet Router with a 2.5 Gbps SFP Port
E60iUGS - MikroTik hEX S 5 Port Gigabit Ethernet Router with a 2.5 Gbps SFP Port
Features
MikroTik hEX S 5 Port Gigabit Ethernet Router with a 2.5 Gbps SFP Port.
The new hEX S is a compact, truly budget-friendly device that does a little bit of everything - and does it fast. Whether you're building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.
With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge - full flexibility right out of the box. That's just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more so you can build the wired network you've always wanted.
- 2.5 Gbps SFP Uplink
- 5 Gigabit Ethernet plus Bonding support
- PoE In and Out support
- USB 3 for storage and file sharing
- Flexible powering from 12V to 57VDC
Specifications
Technical Specifications
| MPN | E60iUGS |
|---|---|
| Architecture | ARM |
| CPU | EN7562CT |
| CPU core count | 2 |
| CPU nominal frequency | 950 MHz |
| Switch chip model | EN7562CT |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 23 W |
| Max power consumption without attachments | 5 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 0.5 A |
| Max out per port output (input 30-57 V) | 0.5 A |
| Ethernet10/100/1000 Ethernet ports5 | 1 |
| FiberSFP ports | 1 (2.5G supported) |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification & ApprovalsCertification | CE, EAC, ROHS |
| IP | 20 |
