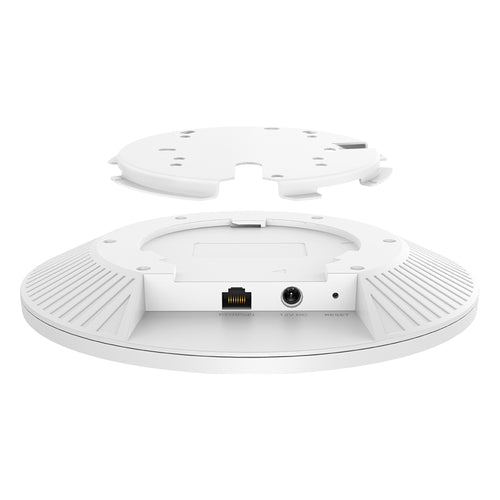

EAP772 - Omada EAP772 BE9300 Ceiling Mount Tri-Band WiFi 7 Access Point
Omada

EAP772 - Omada EAP772 BE9300 Ceiling Mount Tri-Band WiFi 7 Access Point

SKU: EAP772 ● In Stock
$399.00
Free shipping over $299 Genuine product 7-day returns

EAP772

EAP772 - Omada EAP772 BE9300 Ceiling Mount Tri-Band WiFi 7 Access Point

Description

Omada EAP772 BE9300 Ceiling Mount Tri-Band WiFi 7 Access Point.

Featuring superb Wi-Fi 7 technologies including Multi-Link Operation, 6 GHz, 320 MHz Bandwidth, 4K-QAM, and Multi-RUs, Omada EAP772 significantly enhances throughput, connection stability, and concurrent capacity, ensuring faster and higher quality connections for more devices.

With a 2.5 Gigabit Ethernet Port, EAP772 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Features
  • Next-Gen WiFi7 802.11be
  • Wi-Fi Speeds up to 9.2 Gbps
  • Multi-Link Operation (MLO)
  • 1× 2.5GbE Port
  • 802.3at PoE
  • Ultra-Thin Design
  • Centralized Cloud Management
  • Omada Mesh Technology

Specifications

Details
Manufacturer's Code EAP772 (EU)
Interface 1× 2.5G Ethernet Port
Button Reset
Power Supply 802.3at PoE or 12V/2.5A DC (Power adapter is not included)
Maximum Power Consumption 25.44 W (For PoE), 22.57 W (For DC)

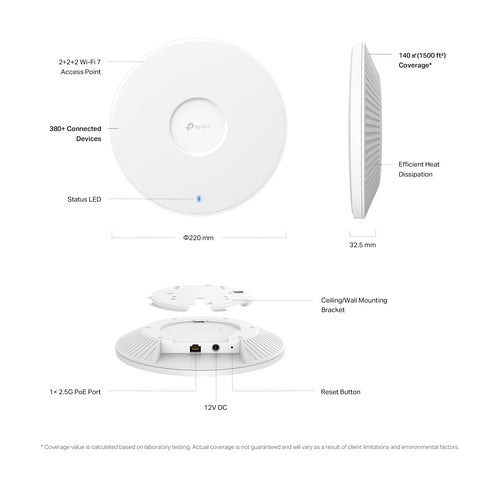

Dimensions ( W x D x H ) 220 × 220 × 32.5 mm
Antenna Gain 2.4 GHz @ 4 dBi, 5 GHz @ 5 dBi, 6 GHz @ 5 dBi
Bluetooth Yes
Coverage 140m²
Concurrent Clients 380+
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be Wi-Fi 7
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Maximum Tx Power 25 dBm (2.4 GHz, EIRP), 25 dBm (5 GHz, EIRP), 23 dBm (6 GHz EIRP)
Operating Temperature 0 °C–40 °C
Storage Temperature -40 °C–70 °C
Operating Humidity 10%–90% non-condensing
Storage Humidity 5%–90% non-condensing
