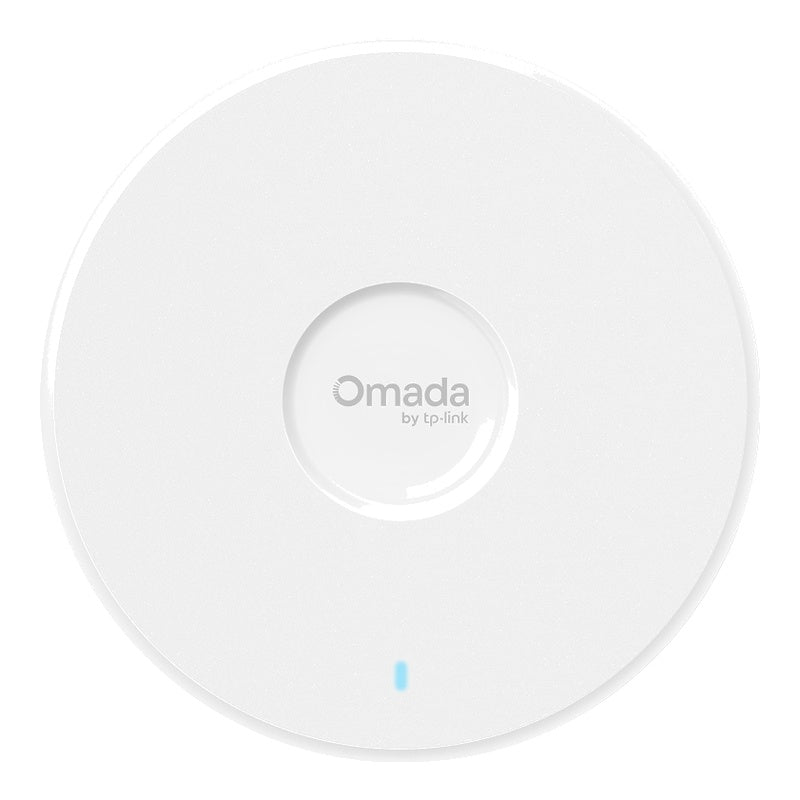

EAP787 - Omada EAP787 BE12000 Indoor Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Omada

EAP787 - Omada EAP787 BE12000 Indoor Ceiling Mount Tri-Band Wi-Fi 7 Access Point

SKU: EAP787 ● In Stock
$877.56
Free shipping over $299 Genuine product 7-day returns

EAP787

EAP787 - Omada EAP787 BE12000 Indoor Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Description

The Omada EAP787 BE12000 Indoor Ceiling Mount Tri-Band Wi-Fi 7 Access Point is the flagship model of the ceiling mount access points, fully leveraging Wi-Fi 7 technology to deliver optimal performance for most demanding clients and applications.

Featuring Dedicated RF Scanning, EAP787 provides spectrum management by continuously scanning the surrounding wireless frequencies without impacting normal user data transmission. This enables the detection and avoidance of factors that may affect wireless performance, enhancing network stability and throughput to fully maximize the capabilities of Wi-Fi 7.
Features
  • Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference
  • avoidance for robust wireless performance
  • Long-Range 6 GHz Coverage: Unlock stronger signals and extended 6 GHz range performance
  • Tri-Band 8-Stream Wi-Fi 7: Up to 12.2 Gbps
  • 1× 10G Port: Ensures fast connectivity throughout the network
  • Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM
  • ensure high performance for your network
  • Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup
  • Advanced Features: Supports centralized management, Mesh, and Seamless Roaming
  • More Capacity and Wider Coverage: Supports up to 510+ concurrent clients and covers up to 190 m² for reliable and extensive wireless connectivity

Specifications

Details
Manufacturer's Code EAP787
Interface 1× 10G/2.5G Ethernet Port
Button Reset
Power Supply 802.3bt/at PoE, 12V/2.5A DC (DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length)
Max. Power Consumption 29 W (For PoE); 24.5W (For DC)
Dimensions ( W x D x H ) 220 × 220 × 38.8 mm
Antenna 2.4 GHz: 2× 4.0 dBi, 5 GHz: 4× 5.0 dBi, 6 GHz: 2× 5.0 dBi
Bluetooth 1 × 5 dBi (peak gain), Internal antenna module *Firmware update may be required.
Mounting Ceiling / Wall / Junction Box Mounting (Kits Included)
Omada App Yes
Centralized Management Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
Cloud Access Yes. Require the use of an Omada controller.
Coverage 190 m²
Concurrent Clients 510+
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions 320 MHz Bandwidth, MLO, 4K-QAM, Multi-RUs, Seamless Roaming(802.11k/v/r), MU-MIMO, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS:24(8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
Wireless Security Captive Portal Authentication, Access Control, Mac Filter, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power 4-25 dBm (2.4 GHz), 7-29 dBm (5 GHz, U-NII-1 & U-NII-3), 7-26 dBm (5 GHz, U-NII-2A), 7-24 dBm (5 GHz, U-NII-2C), 4-23 dBm (6 GHz)
Certification Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security, FCC/CE/NCC/VCCI/JRF/BSMI
Operating Temperature 0 °C–40 °C (32 °F–104 °F);
Storage Temperature -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity 10%–90% non-condensing;
Storage Humidity 5%–90% non-condensing;
