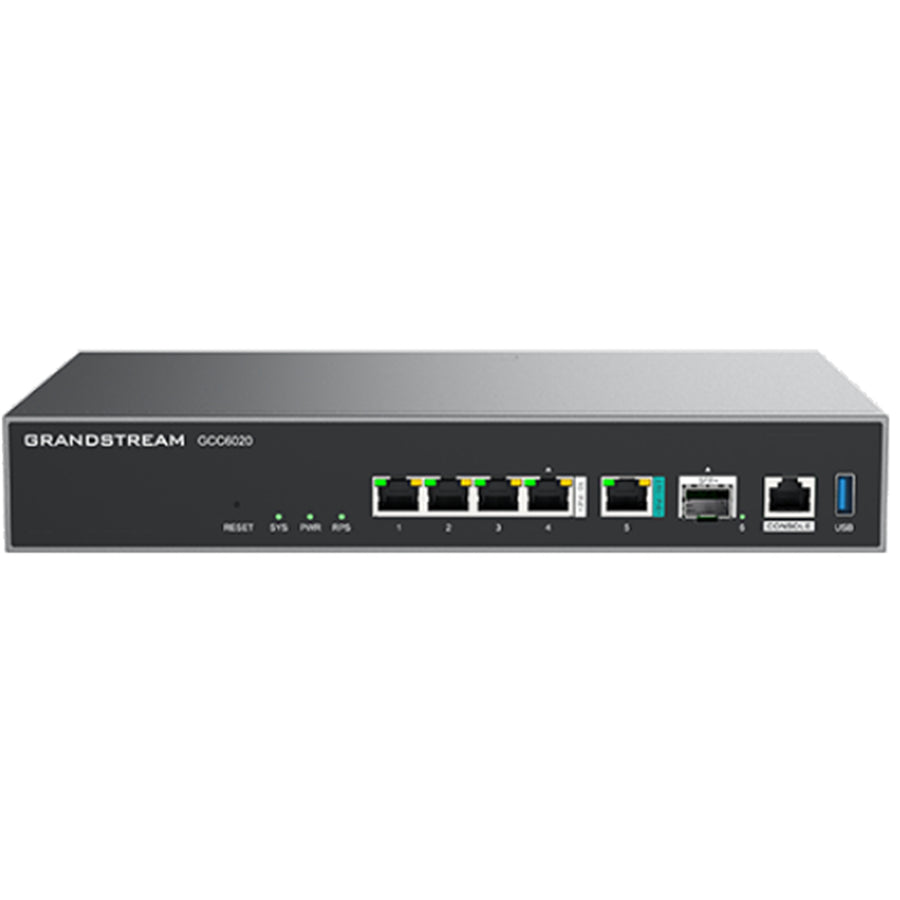

GCC6020 - Grandstream GCC6020 All-In-One Router with Enterprise Grade Firewall VPN, PBX and PoE
GCC6020 - Grandstream GCC6020 All-In-One Router with Enterprise Grade Firewall VPN, PBX and PoE
Features
The GCC6020 Series provides an extraordinary all-in-one solution that merges unified communications and networking solutions into one platform. These state-of-the-art devices combine the functionality of 4 products to provide an all-in-one solution that includes a VPN router, next-generation firewall, IP PBX, and network switch. The Series includes two models: GCC6020 and GCC6021.
- Built-in IP PBX provides voice & video communications with advanced collaboration features
- Built-in enterprise-grade firewall provides anti-virus, layer 3-7 IDS/IPS, DPI, SSL detection, and more
- Built-in VPN router supports 6.5Gbps or 10Gbps to allow easy remote access to private networks
- Built-in network switch with 4 or 16 Gigabit ports, 5 or 24 PoE out ports, both have 2.5 Gigabit and 10 Gigabit SFP+ ports
- Enhanced reliability with support for hot standby High-Availability
- Easily configure, deploy, and manage all Grandstream endpoints from one central location
- Provides advanced security protection with encrypted traffic, secure boot, unique security certificates, and more
- Managed through the cloud (GDMS), mobile app, local WEB UI, SSH, and SNMP
- Multiple WAN ports with load balancing and failover to maximize connection reliability
An Extraordinary All-in-One Solution
The GCC Series redefines the communication experience by merging unified communications, networking, and security solutions into one platform.

Enterprise-Grade Security Protection
A built-in, next-generation firewall provides bank-grade security protection with VB100 Grade-A anti-malware certification, market-leading AI-based DPI, and more.

State-of-the-Art Communications and Collaboration
The built-in IP PBX provides a suite of powerful communication and collaboration features to keep every organization connected and productive

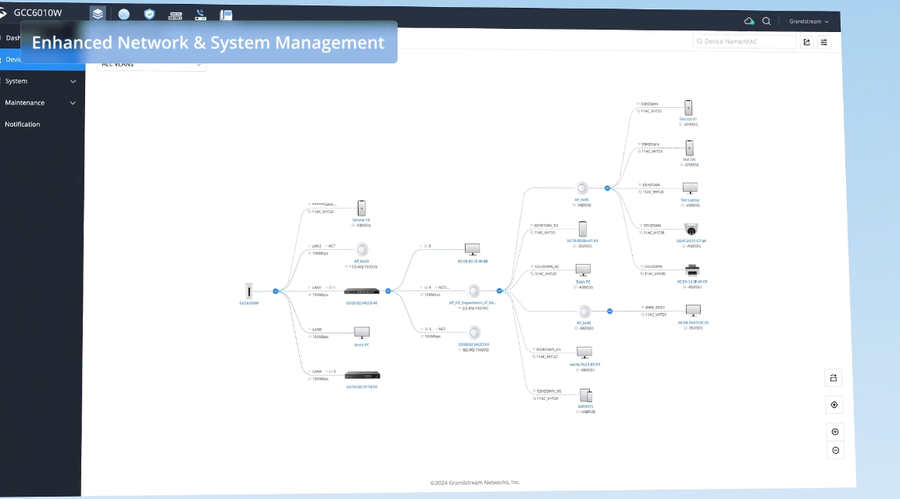

Enhanced Network and System Management
The GCC Series provides a secure, centralized interface to deploy manage and organization's entire network in real-time.

Smart QoS and Reduced Data Latency
By integrating networking and IP PBX functionality, the GCC Series significantly reduces latency and provides a smart QoS engine that ensures a smooth experience regardless of network traffic.

Designed for Small and Medium Businesses
The GCC6020 Series makes it easier than ever to build state-of-the-art business solutions by combining all networking, communication, and security needs into one solution.

Specifications
Technical Specifications
| Network Ports | 1x 10 Gigabit SFP+ ports , 1x 2.5 Gigabit and 4x Gigabit Ethernet ports*All ports are WAN/LAN configurable, max 3xWAN |
|---|---|
| Auxiliary Ports | 1×CONSOLE,1×USB3.0 |
| Memory | 4GB RAM, 32GB eMMC |
| External Storage | M.2 SSD |
| Router | 6.5Gbps |
| IPsec VPN Throughput | 1.3Gbps |
| NAT Sessions | 320K |
| NGFW Throughput (DPI+IPS) | 6Gbps |
| PBX | 50 users and 16 concurrent calls by default |
| Mounting | Desktop, Wall, and Rack-mountable |
| Material | Metal |
| LEDs | 1x LED for SFP+, 5x LED(G) for Ethernet Ports , 5x LED(Y) for PoE Out, 1x LED(R/G/B) for device tracking and status indication, 1x LED for main power, 1x LED for Redundant Power System |
| Connection Type | DHCP, Static IP, PPPoE |
| Network Protocols | IPv4, IPv6, IEEE802.1q ,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | - VLAN, TOS- Support multiple traffic classes, filter by port, IP address, DSCP, and policing- App QoS: Application/protocol monitoring and traffic statistics- VoIP Prioritization |
| Firewall | - DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT- DPI, Anti-Virus, IPS/IDS, SSL Proxy- Content Control: DNS filtering, web url/class/key words filtering, application identification and control- Email Security, Geo-IP filtering |
| VPN | - IPsec VPN Client-to-Site / Site-to-Site- IPSec Encryption: 3DES, AES- IPSec Authentication: MD5, SHA-1, SHA2-256- IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14- IPSec Protocols: ESP- IPSec NAT Traversal- PPTP VPN Server / Client- PPTP Encrpytion: MPPE 40-bit, 128-bit- PPTP/L2TP Authentication: MS-CHAPv1/2- L2TP- OpenVPN® Server / Client- OpenVPN® Encryption: AES, DES- OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512- OpenVPN® Certificate: RSA- WireGuard® |
| Network Management | Grandstream Device Management System (GDMS), GWN App, Local Web GUI, SSH, SNMP (v1/ v2c/v3) and CLI |
| Max AP/Clients | Up to 300 GWN APs; Up to 500 Clients |
| Power and Green Energy Efficiency | Universal power adaptor included: Input 100-240VAC50-60Hz, Output: 54VDC 2.8A (150W);5 x PoE out ports support IEEE802.3af/at,Maximum PoE Wattage: 120WRPS Input: 54VDC/2.8A |
| Environmental | Operation: 0°C to 45°CStorage: -10°C to 60°CHumidity: 5% to 95% Non-condensing |
| Physical | Unit Dimension: 280 x 185.5 x 44 mmUnit Weight: 1.5KGEntire Package Dimension: 384 x 209.5 x 60 mmEntire Package Weight: 2.1KG |
| Package Content | GCC6020, Universal Power Supply, Rack mount kit, Quick Installation Guide |
