EDGECORE ECS1100-5P - 5 Port Lite L2 Smart Gigabit Web Managed PoE Switch w/ 4 PoE Ports (30W). 120W
Features
EDGECORE 5 Port Lite L2 Smart Gigabit Web Managed PoE Switch
The ECS1100 Series is Edgecore's latest generation of cost-effective smart switches. The ECS1100 Series is designed for SMB and enterprise markets with complete solutions from 5 to 28 ports, including 802.3af/at/bt PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard and support IPv4 management features.

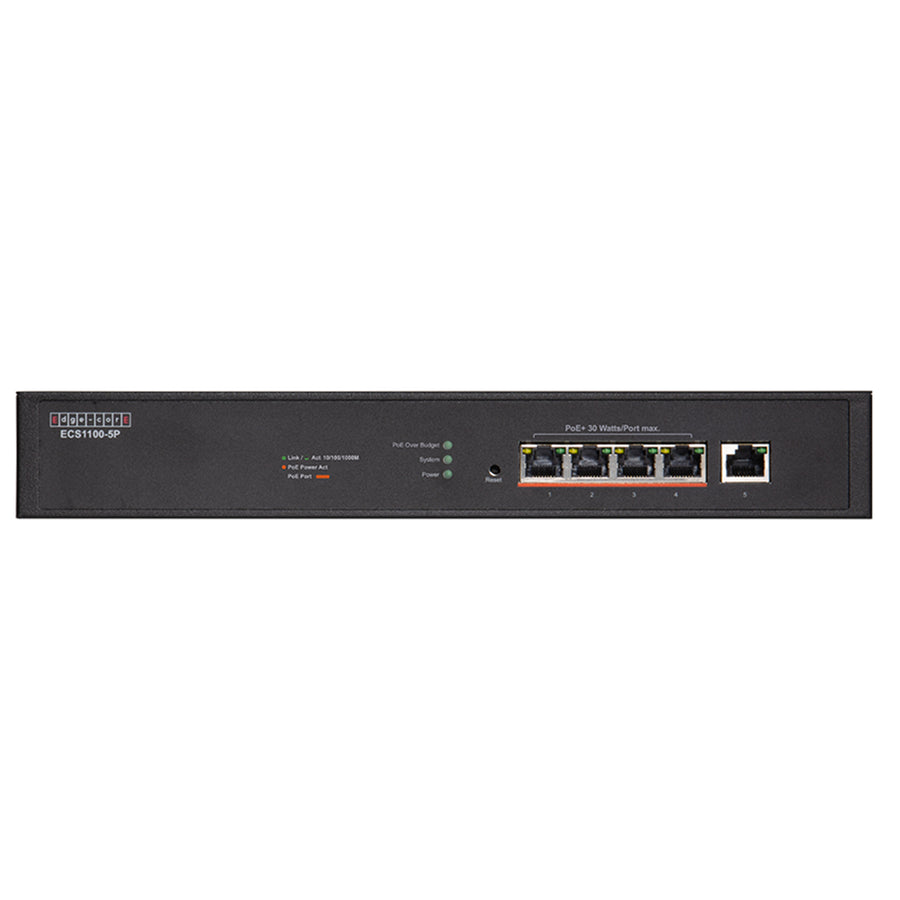

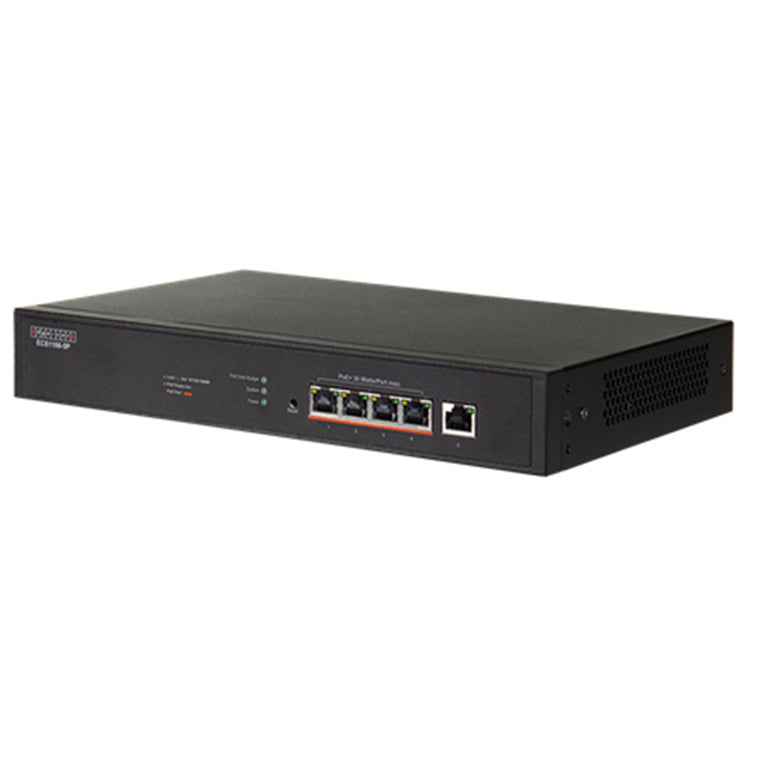

The ECS1100-5P is a rack-mountable PoE switch featuring a fanless design. It supports four ports, each delivering up to 30W, addressing the growing power requirements of users.
The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard and support IPv4 management features.
- 1 x RJ-45 10/100/1000 Uplink Port
- 4 x RJ-45 PoE Ports
- af/at 120W
- 10 Gbps Switching Capacity
- Support ecCLOUD

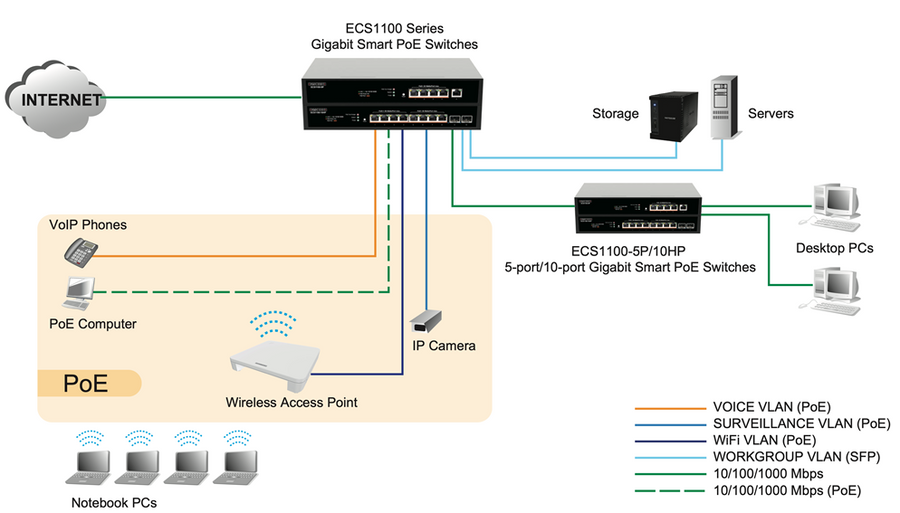

Network Application
Specifications
Technical Specifications
| Product Model | ECS1100-5P |
|---|---|
| RJ-45 10/100/1000 Ports | 5 |
| 100/1000 SFP Ports | 0 |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Flash Memory | 8 MB |
| SRAM (Built-In) | 256 KB |
| Packet Buffer Size | 4 Mbits |
| MAC Address Table Size | 8 K |
| Jumbo Frames | 15 KB |
| Auto-negotiation, Auto-MDI/MDIX | Yes |
| Surge Protection | 6KV (RJ-45), 6KV (Power) |
| MTBF | = 200,000 hrs |
| Heat Dissipation | 477.7 |
| Acoustic Noise | 0 |
| PoE Ports | 4 |
| PoE++ based on IEEE 802.3bt (up to 90 W) | No |
| PoE+ based on IEEE 802.3at/802.3af | Yes |
| Auto Disable a?ter Exceeding Power Budget | Yes |
| Dynamic Power Allocation | Yes |
| PoE Power Budget | 120 W |
| Dimension (W x D x H) | 294 x 180 x 44 mm |
| Weight | 1.44 kg (3.17 lb) |

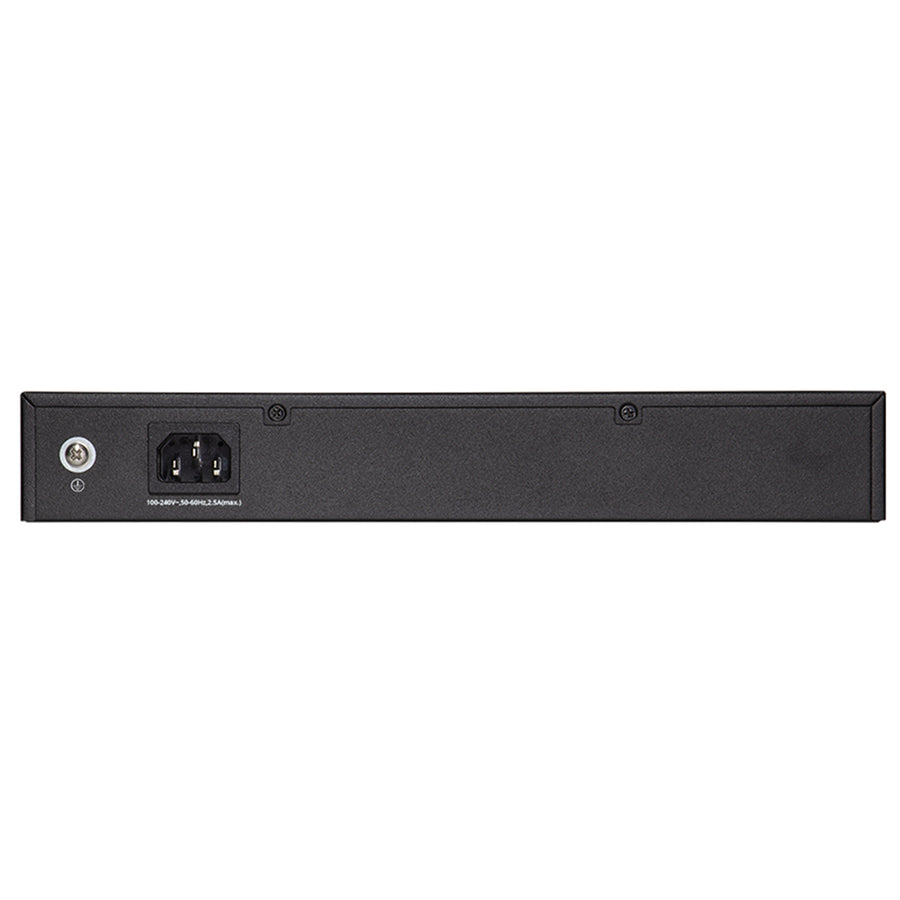

| 100-240 VAC, 50-60 Hz | Yes |
| Max System Power Consumption (Watts) | 140 W |
| Operating Temperature | 0 - 50ºC |
| Storage Temperature | -40 - 70ºC |
| Operating Humidity (non-condensing) | 10% to 90% |
| Storage Temperature (non-condensing) | 10% to 90% |
| WEEE | Yes |
| RoHS | Yes |
| FCC Class A | Yes |
| CE | Yes |
| Safety Compliance: LVD | Yes |
| VCCI/BSMI | Yes |
| UKCA | Yes |
| Brand | EDGECORE |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.979 kg |
| Warranty |
|---|
