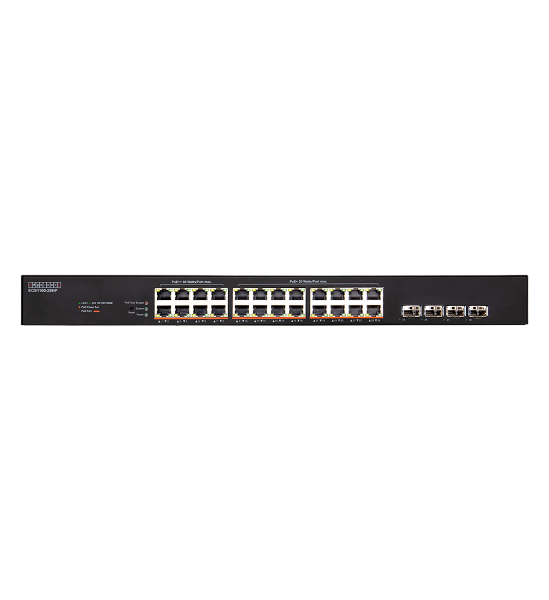

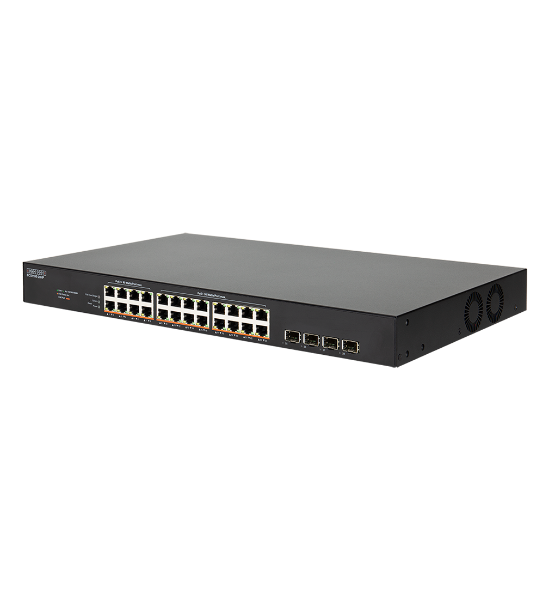

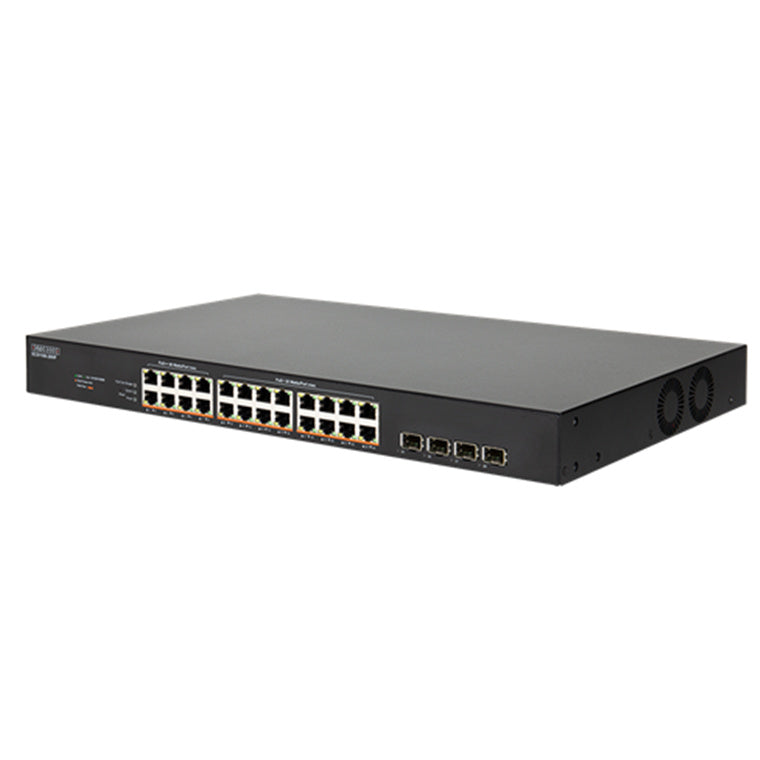

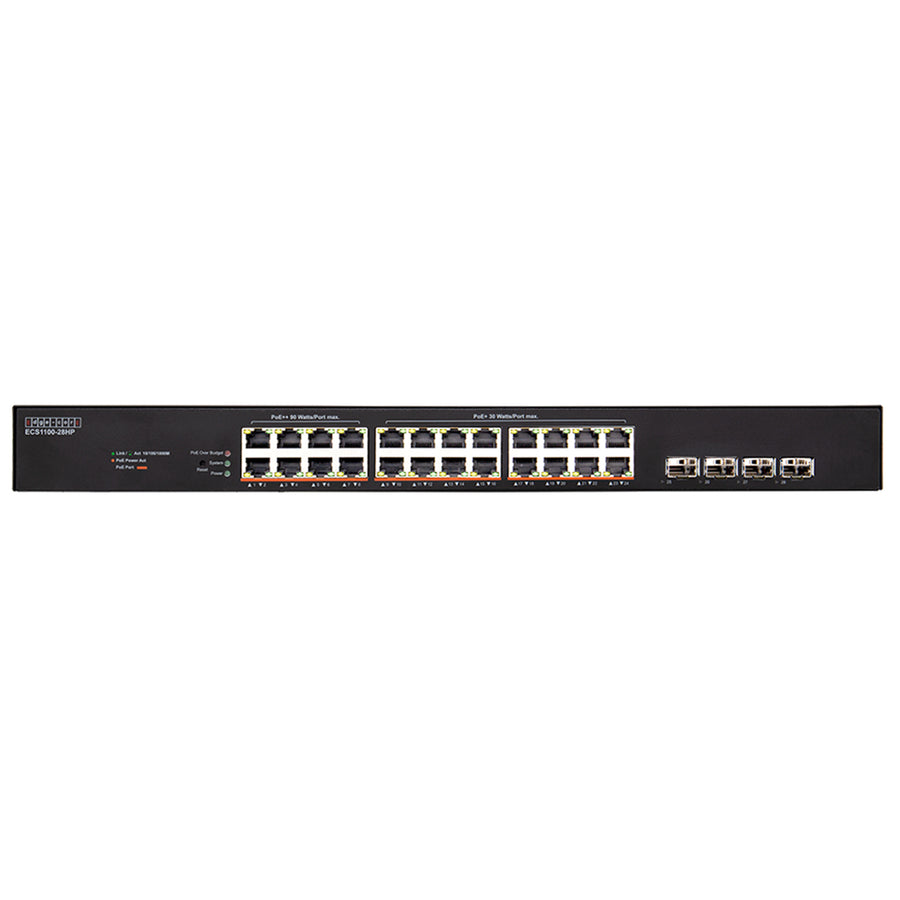

EDGECORE ECS1100-28HP - 24 Port Lite L2 Smart Gigabit Web Managed PoE Switch
Features
The ECS1100 Series is Edgecore's latest generation of cost-effective smart switches. The ECS1100 Series is designed for SMB and enterprise markets with complete solutions from 5 to 28 ports, including 802.3af/at/bt PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard and support IPv4 management features.
The ECS1100 Series is Edgecore's latest generation of cost-effective smart switches. Designed for SMB and enterprise markets with complete solutions from 5 to 28 ports, including 802.3af/at/bt PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard and support IPv4 management features.
The ECS1100-28HP delivers a default 250/480W of PoE power to support future IP cameras, IP video telephones, access points, and PoE computers.
- 4 x RJ-45 10/100/1000 Ports
- 24 x PoE Ports
- 4 x 1G SFP Ports
- 0ºC to 50ºC
- PoE extend-mode
- 6KV surge protection
- IGMP Snooping v1/v2
- 802.3af/at/bt PoE
- Access/Trunk VLAN
- PoE timer/priority
- PD alive detection
- CE/FCC: LVD/VCCI/BSMI/UKCA

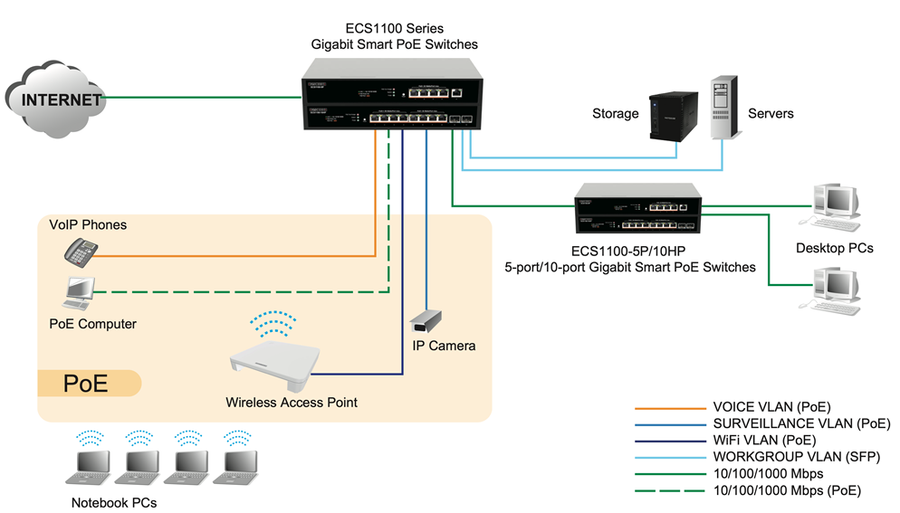

Network Application
Specifications
Technical Specifications
| Product Model | ECS1100-28HP |
|---|---|
| RJ-45 10/100/1000 Ports | 24 |
| 100/1000 SFP Ports | 4 |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| Flash Memory | 8 MB |
| SRAM (Built-In) | 256 KB |
| Packet Buffer Size | 4 Mbits |
| MAC Address Table Size | 8 K |
| Jumbo Frames | 15 KB |
| Auto-negotiation, Auto-MDI/MDIX | Yes |
| Surge Protection | 6KV (RJ-45), 6KV (Power) |
| MTBF | = 200,000 hrs |
| Heat Dissipation | 1910.7 |
| Acoustic Noise | < 50 dB (A) |
| PoE Ports | 24 |
| PoE++ based on IEEE 802.3bt (up to 90 W) | Yes |
| PoE+ based on IEEE 802.3at/802.3af | Yes |
| Auto Disable a?ter Exceeding Power Budget | Yes |
| Dynamic Power Allocation | Yes |
| PoE Power Budget | 480 W |
| Dimension (W x D x H) | 440 x 260 x 44 mm |
| Weight | 3.54 kg (7.80 lb) |
| 100-240 VAC, 50-60 Hz | Ye |
| Max System Power Consumption (Watts) | 560 W |
| Operating Temperature | 0 - 50ºC |
| Storage Temperature | -40 - 70ºC |
| Operating Humidity (non-condensing) | 10% to 90% |
| Storage Temperature (non-condensing) | 10% to 90% |
| WEEE | Yes |
| RoHS | Yes |
| FCC Class A | Yes |
| CE | Yes |
| Safety Compliance: LVD | Yes |
| VCCI/BSMI | Yes |
| UKCA | Yes |
| Brand | EDGECORE |
|---|---|
| Product Type | Networking > Switches |
| Weight | 1.986 kg |
| Warranty |
|---|
