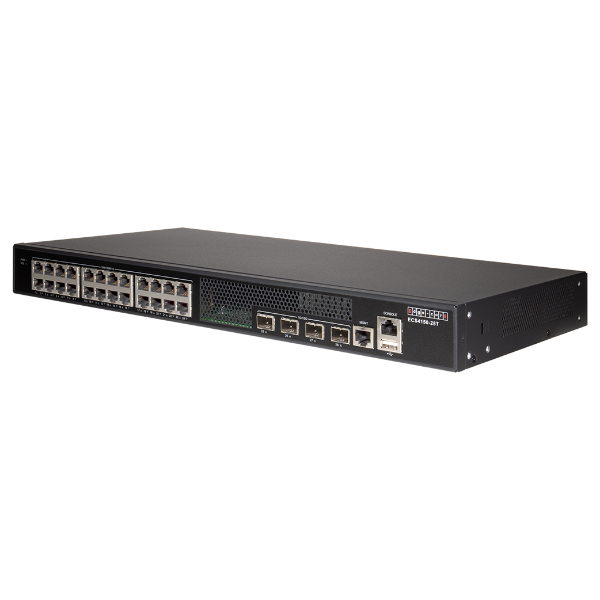

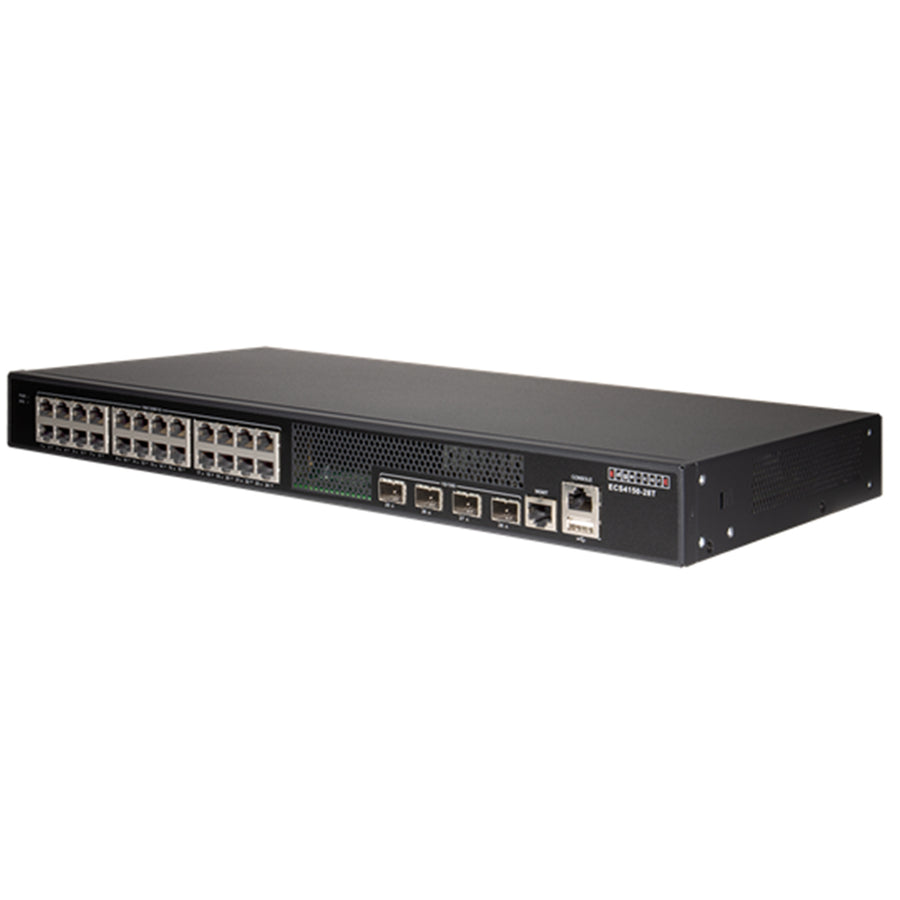

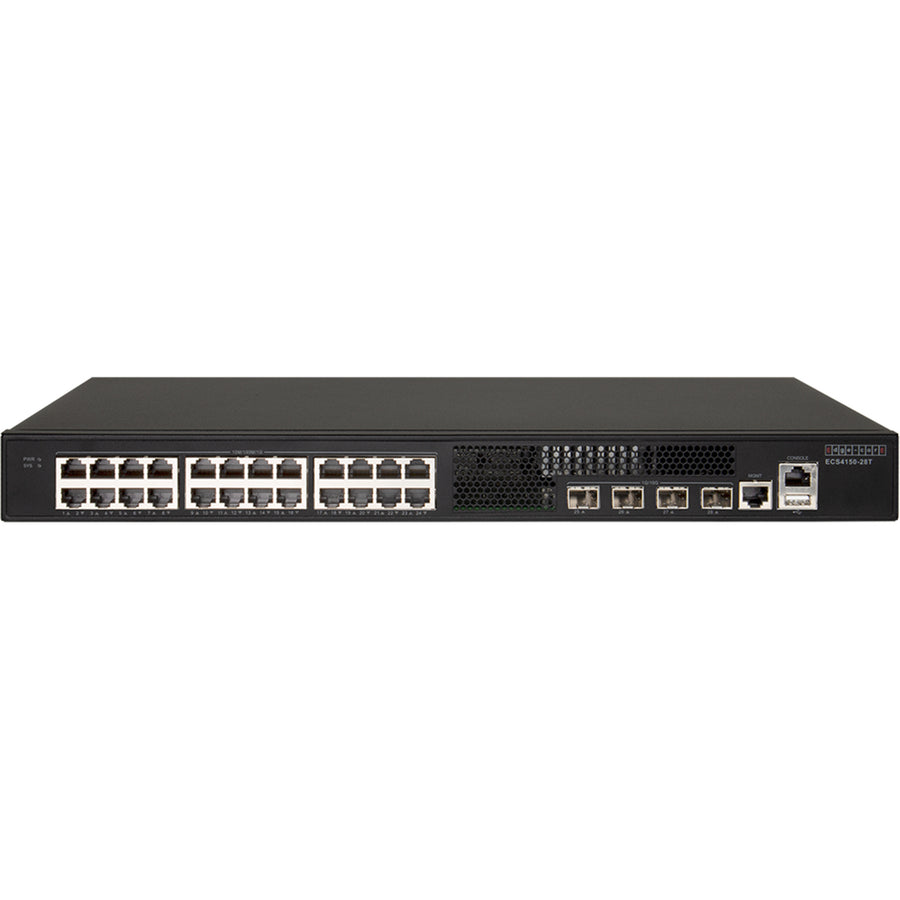

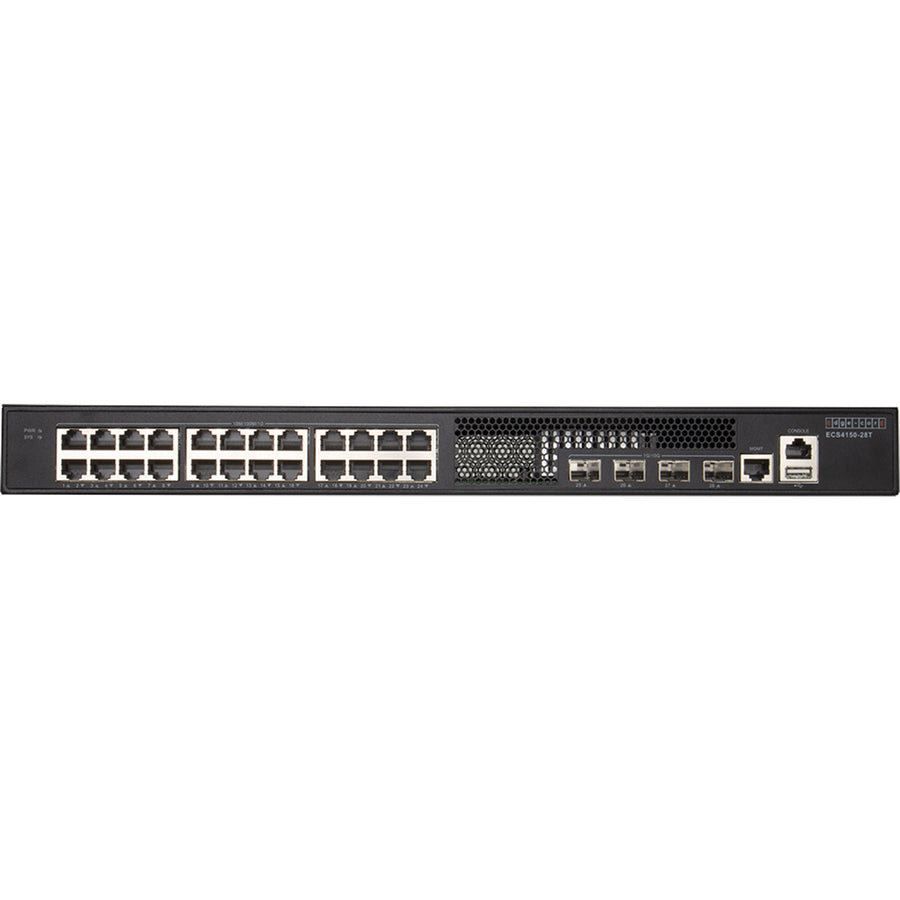

EDGECORE ECS4150-28T - 24 Port Managed L2+/L3 Lite Gigabit Ethernet Switch
Features
The Edgecore ECS4150-28T switch is a Gigabit Ethernet access switch with four 10G SFP+ uplinks. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) wanting to provide home users with triple-play services with up to a Gigabit of bandwidth. This switch is also positioned as Cloud Edge access switch to connect IOT and other devices in Enterprises and SMB deployments. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks.
The ECS4150-28T is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
- Best price-performance Gigabit Ethernet access switch with 10G uplinks
- Low power consumption with fanless and noiseless design
- ITU-T G.8032 ERPS L2 Ring protection with <50 convergence time
- Comprehensive and field proven software features for ISP/ Carrier to provide broadband access, IPTV services
- L2+/ Lite L3 feature upgrades the L2 switch with routing functionality
- Enhanced Security,IPv6 and Multicast features
- Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
- Complete Private MIB to fully control and monitor the switch via customer's EMS

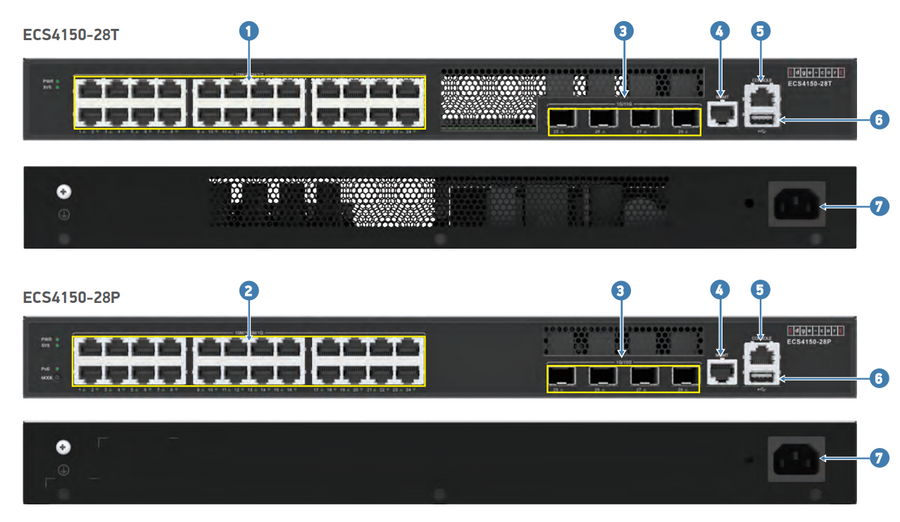

Interfaces
1.24 x RJ-45 10/100/1000BASE-T ports (ECS4150-28T)
2.24 x RJ-45 10/100/1000BASE-T PoE ports (ECS4150-28P)
3.4 x SFP+ 10 Gigabit uplink ports
4.RJ-45 management port
5.RJ-45 console port
6. USB management port
7.AC power input
Specifications
Technical Specifications
| Product Model | ECS4150-28T |
|---|---|
| RJ-45 10/100/1000BASE-T Ports | 24 |
| SFP+ 10 Gigabit Uplink Ports | 4 |
| RJ-45 Console Port | 1 |
| USB port | 1 |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95 Mpps |
| NAND Flash Memory | 256 MB |
| DRAM | 1 GB |
| MAC Address Table | 16 K |
| Jumbo Frames | 10 KB |
| Auto-negotiation, Auto-MDI/MDIX | Yes |
| Packet Buffer | 1.5 MB |
| MTBF | 563,074 hrs |
| Heat Dissipation | 86 Btu/h |
| Acoustic Noise | N/A |
| Dimension (W x D x H) cm | 44 x 22 x 4.4 cm |
| Weight | 3.05 kg (6.72 lb) |
| AC 100-240 VAC, 50/60 Hz | Yes |
| Max System Power Consumption (Watts) | 25 Watts |
| Operating Temperature | -5 ~ 45ºC |
| Storage Temperature | -40 ~ 70ºC |
| Operating Humidity (non-condensing) | 5% to 95% |
| Storage Humidity (non-condensing) | 5% to 95% |
| Environmental Regulation compliance: WEEE | Yes |
| Environmental Regulation compliance: RoHS | Yes |
| FCC Class A | Yes |
| CE | Yes |
| Safety Compliance: CB (IEC/EN 62368-1) | Yes |
| Safety Compliance: UL (CSA 22.2 No 62368-1 & UL62368-1) | Yes |
| Brand | EDGECORE |
|---|---|
| Product Type | Networking > Switches |
| Weight | 8.644 kg |
| Warranty |
|---|
