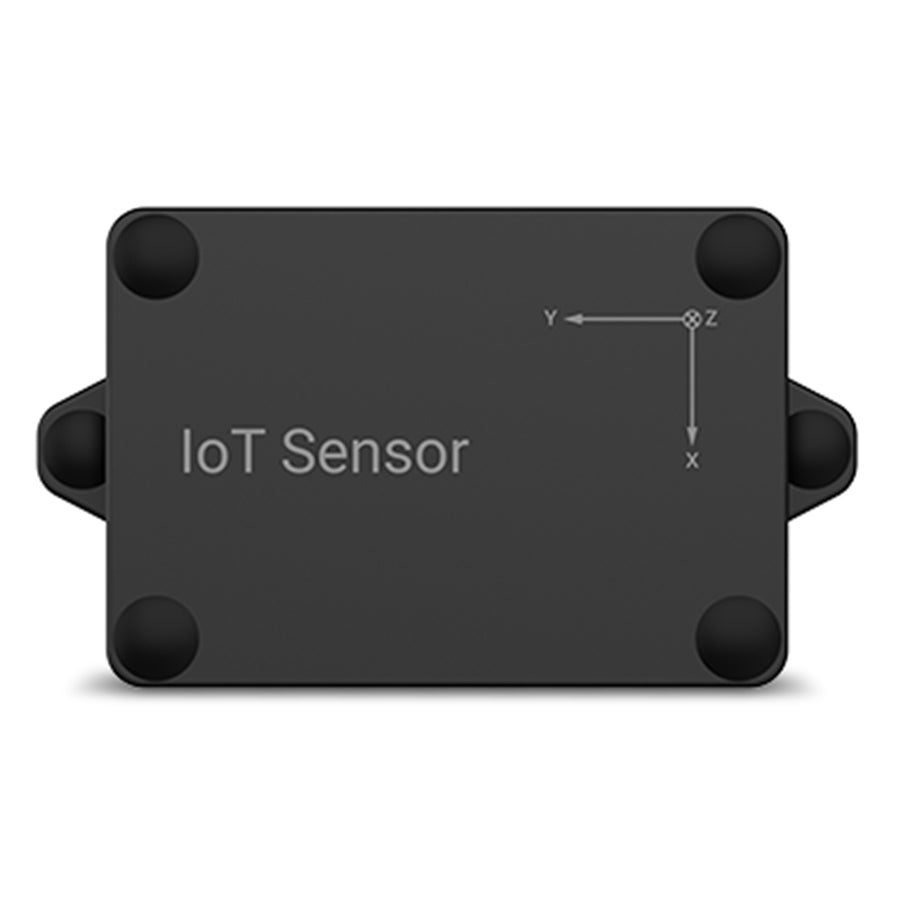

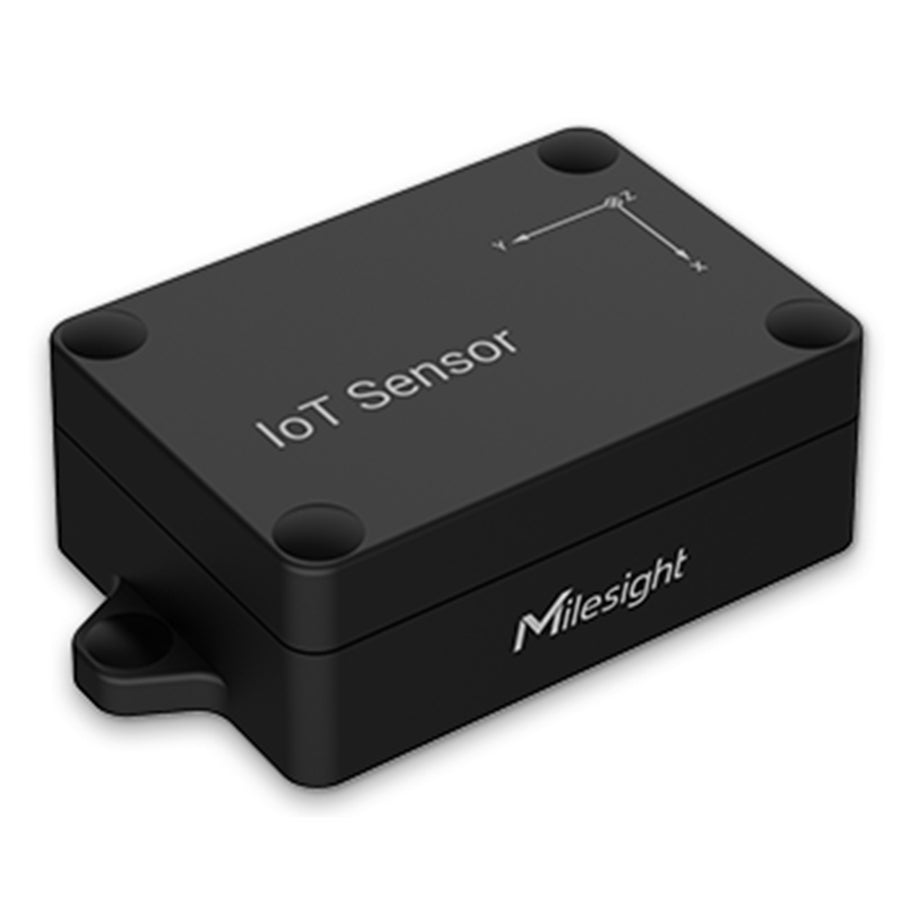

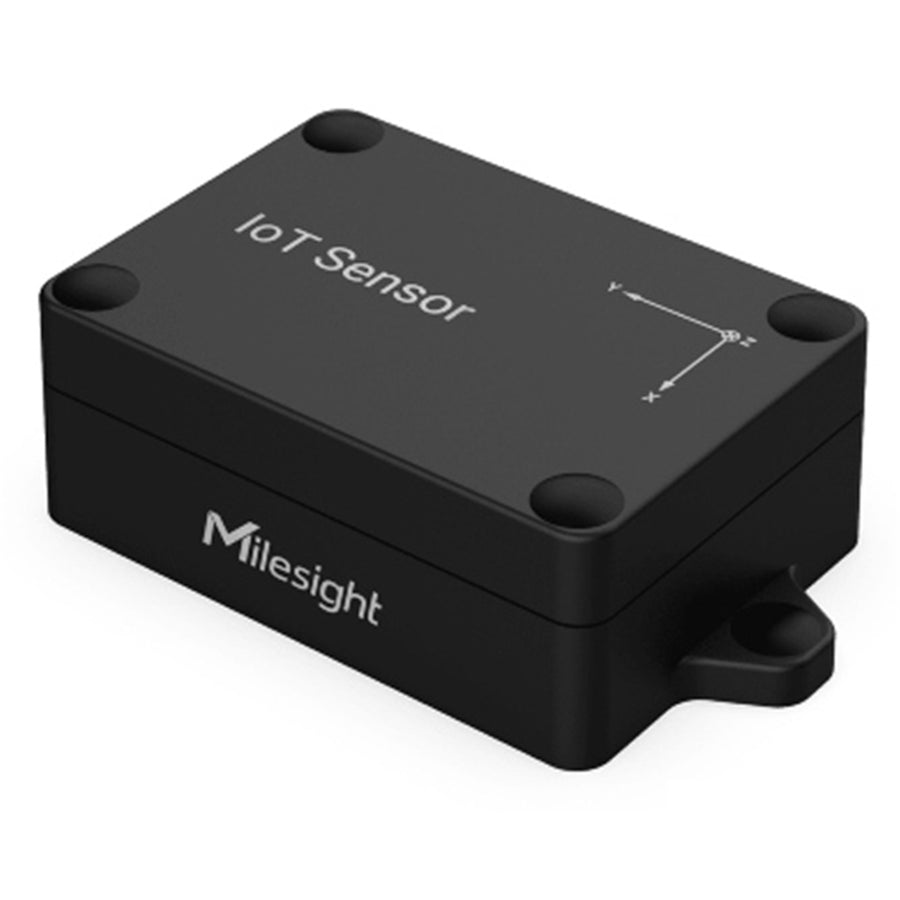

EM310-TILT-915M - Milesight LoRaWAN 3-axis IoT Tilt Sensor - IP67 Rated
EM310-TILT-915M - Milesight LoRaWAN 3-axis IoT Tilt Sensor - IP67 Rated
Features
Milesight LoRaWAN AU915/AS923 3-axis IoT X, Y, Z Tilt Angle Sensor
The MIlesight EM310-TILT is a LoRaWAN IoT tilt sensor used for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, the EM310-TILT can be installed to the objects easily to measure its X, Y, Z tilt angles. It can also detect movement based on angle changes and send threshold alarms. Compliant with Milesight LoRaWAN IoT gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely.
- Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
- Flexible threshold condition settings, suitable for different kinds of applications
- Easy to install, suitable for various types of objects as trees, poles, grounds, etc.
- IP67 waterproof enclosure for outdoor applications and easy to clean
- Ultra-wide-distance wireless transmission up to line of sight of 15 km
- Equipped with NFC for one touch configuration, supports card emulation mode
- Function well with standard LoRaWAN® gateways and network servers
- Compliant with Milesight IoT Cloud
- Compliant with the Scopious Network
Built-in 3-Axis Accelerometer
EM310-TILT can be installed to the objects easily. With X, Y, Z coordinates, the alarm will be triggered right away when the device tilt angle reaches the threshold.
IP67 Waterproof and Dustproof
It is qualified to work in harsh or outdoor environments with an IP67 rating, and it is easy to clean.
Flexible Threshold Condition Settings
Up to 36 customized trigger rules
Suitable for different application scenarios:
- Landslide Monitoring
- Tunnel Distortion Monitoring
- Parking Garage Barrier Monitoring
- Cranes and Construction Machines Monitoring
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Specifications
Technical Specifications
| Product Code | EM310-TILT-915M |
|---|---|
| Frequency | US915/AU915/KR920/AS923 |
| Tx Power | 22dBm |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Axis Measurement | X, Y, Z |
| Measurement Range | - 90° ~ +90° |
| Accuracy | ± 1° |
| Operation | Power On & Off NFC |
| Configuration | Mobile APP(via NFC) |
| Power Supply | 2 × 3500 mAh ER17505 Li-SOCl2 Batteries |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | =95% (non-condensing)) |
| Ingress Protection | IP67 |
| Dimension | Transceiver: 111 × 62 × 33 mm (4.37 × 2.44 × 1) |
| Material | ABS, Black |
| Installation | Flat Surface |
| Package Contents | Sensor, Mounting Screws, Warranty Card, QSG |
