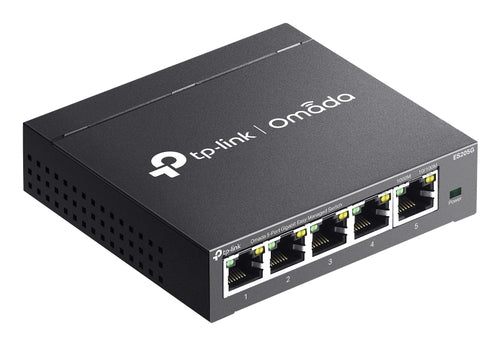

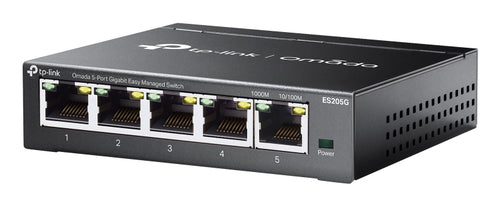

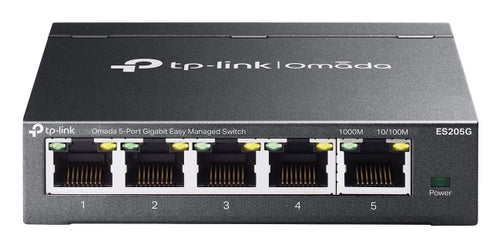

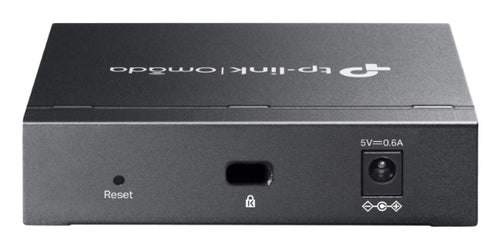

TP-Link ES205G ES205G - TP-Link ES205G 5 Port Gigabit Omada SDN Switch
ES205G - TP-Link ES205G 5 Port Gigabit Omada SDN Switch
ES205G - TP-Link ES205G 5 Port Gigabit Omada SDN Switch
ES205G - TP-Link ES205G 5 Port Gigabit Omada SDN Switch
ES205G - TP-Link ES205G 5 Port Gigabit Omada SDN Switch
TP-Link

ES205G - TP-Link ES205G 5 Port Gigabit Omada SDN Switch

SKU: ES205G ● In Stock
$51.30$56.07
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Panasonic

Panasonic PN260496-NZ GA-ML Series Layer2 POE Switch GA-ML4TWPOE

$1,181.74
inc GST ▲ +GST
Panasonic

Panasonic PN25048-NZ GA-AS 4Port PoE+ 62Watt Fanless

$560.00
inc GST ▲ +GST
Panasonic

Panasonic PN25168-NZ GA-AS 16Port PoE+ 112Watts

$1,033.04
inc GST ▲ +GST
MikroTik

MikroTik CRS804-4DDQ-hRM Multi-Gig Switch with 2x 10G Ethernet, 4x QSFP56-DD Ports. Compact 400G switching for AI clusters, storage fabrics, and lightning fast

$2,245.21$2,276.13
inc GST ▲ +GST
LevelOne

LevelOne GVT-2000 10/100/1000BASE-T to 1000BASE-X to SFP Converter

$83.48
inc GST ▲ +GST

Features

Omada 5-Port Gigabit Easy Managed Switch

- 5× 10/100/1000Mbps RJ45 ports
- -Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

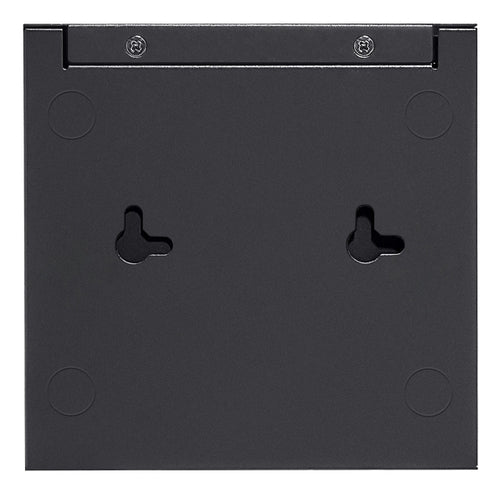

- Durable metal casing and desktop/wall mounting design

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Specifications

Technical Specifications

Interface - 5× 10/100/1000 Mbps RJ45 Ports- AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity Fanless
Installation - Desktop- Wall Mount
Physical Security Lock Yes
Power Supply External DC Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 8 K
Packet Buffer Memory 4 Mbits
Jumbo Frame 15 KB
Quality of Service - Port-based/802.1p/DSCP QoS- 8 Priority Queues- Priority Schedule Mode- WRR (Weighted Round Robin)- Queue Weight Config- Bandwidth Control- Port-Based Rating Limit- Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features - Static Link Aggregation- Loop Prevention / Loopback Detection- Flow Control- 802.3x Flow Control- Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both- Port Statistics- Port Mirror Status- Traffic Statistics- 802.1ab LLDP
L2 Multicast - IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN - MTU VLAN- Port-Based VLAN- 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Transmission Method Store-And-Forward
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management - Omada Cloud-Based Controller- Omada Hardware Controller- Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features - Web-based GUI- DHCP Client- Cable Diagnostics- Automatic Device Discovery†- Batch Configuration†- Batch Firmware Upgrading†- Unified Configuration†
Certification FCC, CE, RoHS
Package Contents - ES205G- Power Adapter- Installation Guide- Rubber Feet
Environment - Operating Temperature: 0?~40? (32?~104?)- Storage Temperature: -40?~70? (-40?~158?)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing
