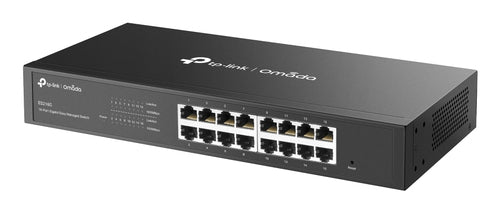

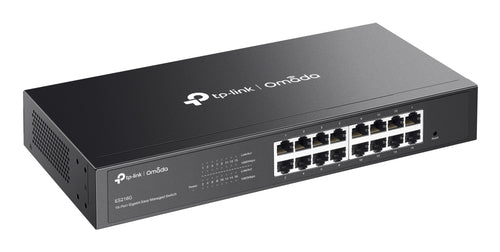

ES216G - TP-Link ES216G 16 Port Gigabit Switch Easy Smart Rack Mount Omada

TP-Link

ES216G - TP-Link ES216G 16 Port Gigabit Switch Easy Smart Rack Mount Omada

SKU: ES216G ● In Stock

$168.67

Free shipping over $299 Genuine product 7-day returns

📄 Download Official Datasheet (PDF)

ES216G - TP-Link ES216G 16 Port Gigabit Switch Easy Smart Rack Mount Omada

Overview

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

16× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/rack mounting design

Technical Specifications

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
Unified static configuration	Y
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Power connector	AC-in jack
Networking standards	IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3i,IEEE 802.3x
10G support	N
Zero Touch Provisioning (ZTP)	Y
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Fast leave	Y
VLAN support	Y
Virtual LAN features	MTU VLAN,Port-based VLAN,Tagged VLAN
Number of VLANs	32
Switching capacity	32
Forwarding rate	23.8
MAC address table	8000
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	15000
Packet buffer memory	4
DHCP features	DHCP client
IGMP snooping	Y
Loop protection	Y
Queue scheduling algorithms	Weighted Round Robin (WRR)
Rack mounting	Y
Product colour	Black
LED indicators	Y
Flash memory	64
Firmware upgradeable	Y
Fanless	Y
Mean time between failures (MTBF)	2131140
Power source	AC
Power supply included	Y
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (max)	8.4
Surge protection	Y
Surge protection voltage	6
Power over Ethernet (PoE)	N
Operating temperature (T-T)	-5 - 50
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	28.52
Width	294
Depth	140
Height	44
Cables included	AC
User guide	Y
Rack mount kit	Y
Package type	Box
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
