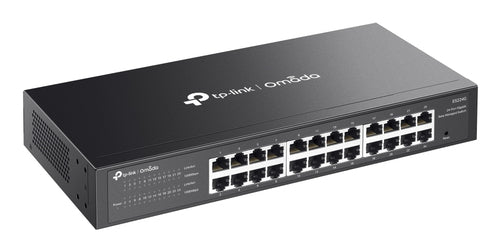

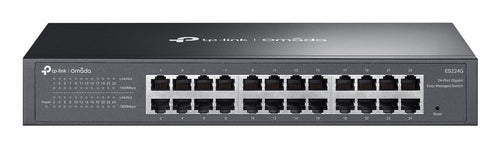

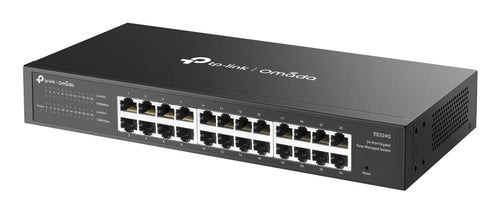

ES224G - TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada
Overview
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Technical Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| Unified static configuration | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Port mirroring | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Fast leave | Y |
| VLAN support | Y |
| Virtual LAN features | MTU VLAN,Port-based VLAN |
| Number of VLANs | 32 |
| Switching capacity | 48 |
| Forwarding rate | 35.7 |
| MAC address table | 8000 |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 |
| DHCP features | DHCP client |
| IGMP snooping | Y |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast support | Y |
| Rack mounting | Y |
| Product colour | Black |
| Firmware upgradeable | Y |
| Fanless | Y |
| Power source | AC |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Surge protection | Y |
| Surge protection voltage | 6 |
| Operating temperature (T-T) | -5 - 50 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Width | 294 |
| Depth | 140 |
| Height | 44 |
| Cables included | AC |
| User guide | Y |
| Rack mount kit | N |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
